High-Ply Cutting, Redefined: Meet the JWEI MI90
When production volume is the priority, the machines that win are the ones that cut more, faster, without losing a millimeter of accuracy. That's exactly what high-ply cutting delivers — and it's exactly what the JWEI MI90 was built to master.

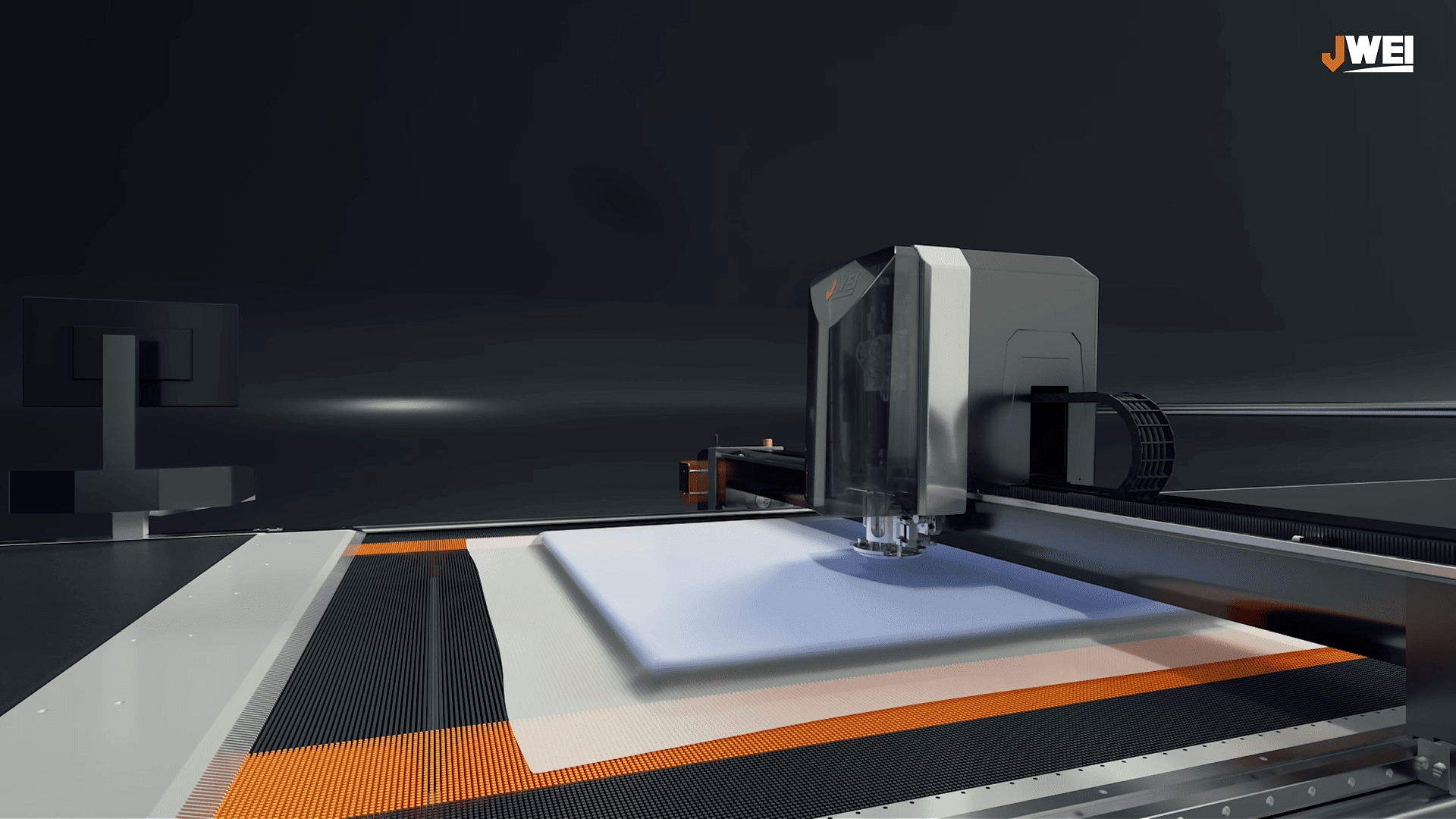

High-ply cutting means processing a tall, compressed stack of fabric layers — often dozens, sometimes over a hundred — in a single cutting cycle, with the bottom layer matching the top layer perfectly. Fewer cycles. Less labor. Faster turnaround. For manufacturers scaling toward high-volume output, this single capability can be the difference between a production line that keeps up with demand and one that falls behind it.
JWEI built the MI90 to lead in exactly this category.
Why Manufacturers Choose the JWEI MI90 for High-Ply Cutting

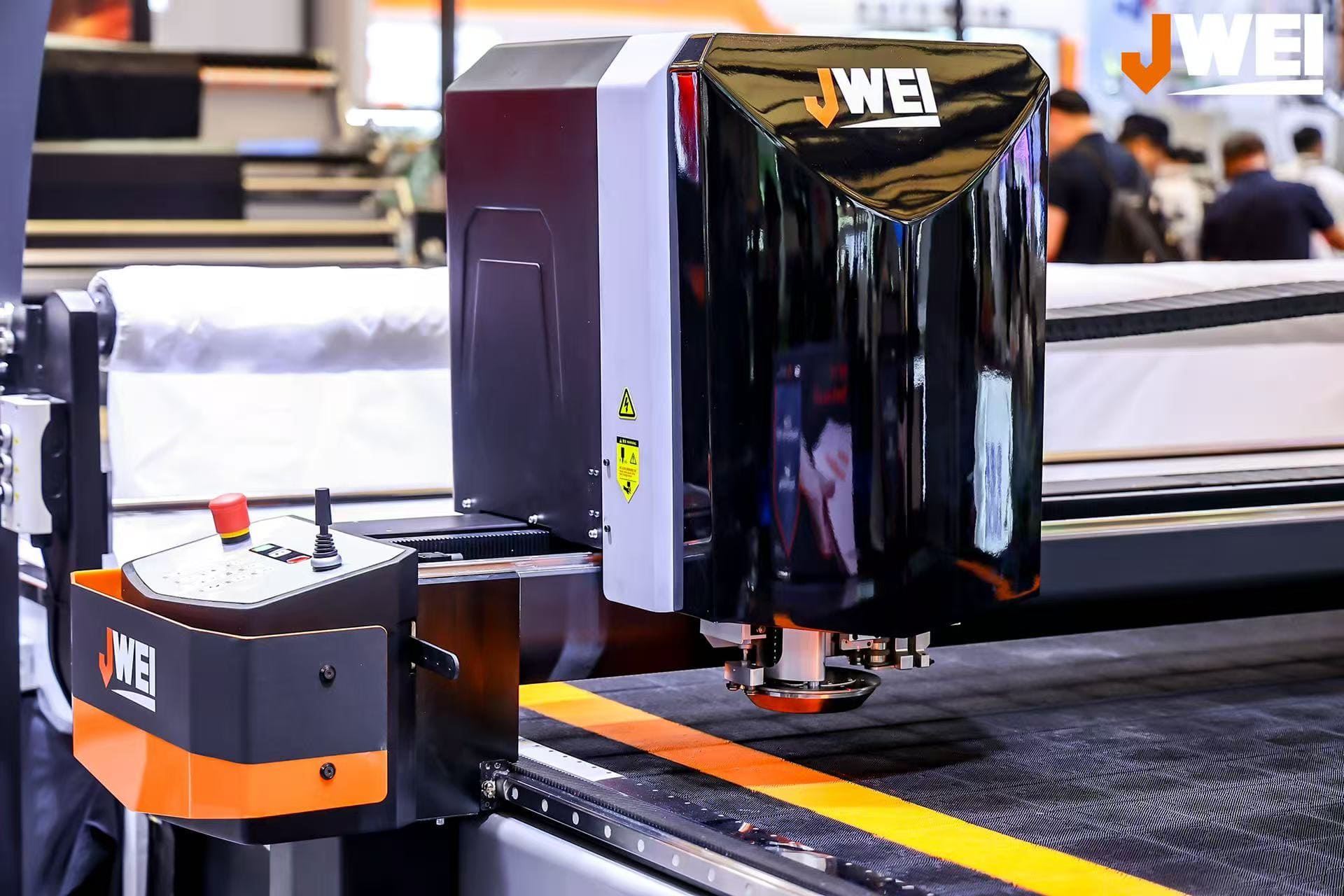

Part of JWEI's MI Multi-Layer Cutting System family, the MI90 is engineered end-to-end for manufacturers who need serious volume — apparel, automotive interiors, home furnishings, footwear, and luggage production lines that can't afford downtime or inconsistency.
90mm Cutting Height — Cut More, Cycle Less
The MI90 processes a compressed stack up to 90mm tall in a single pass. That means fewer setups, fewer cycles, and dramatically more output per shift — exactly what high-volume manufacturing demands.
100m/min Running Speed — Without Compromise
Most machines slow down when the stack gets taller. The MI90 doesn't. It holds a maximum running speed of 100m/min even at full cutting depth, so scaling up ply height never means scaling down speed.
0.01mm Servo Precision — Every Layer, Every Time
Powered by a premium Beckhoff AX5206 servo system, the MI90 delivers motion control accuracy down to 0.01mm. This is the engineering backbone that makes true high-ply performance possible — not just fast, but precise at every layer.
Intelligent Knife Intelligence (IKI) — Zero Tapering, Guaranteed Consistency
JWEI's proprietary IKI technology senses and compensates for knife deflection in real time. The result: the top layer and bottom layer of a 90mm stack come out dimensionally identical, with cutting error held to ≤1mm — no tapering, no rework, no guesswork.
200mbar Vacuum Retention — Rock-Solid Stack Stability
Cutting a tall stack at high speed demands serious hold-down power. The MI90's vacuum system delivers more than double typical industry retention, keeping every layer locked in place from first cut to last.
Up to 5% Material Savings — Every Cut Counts
Zero-buffer cutting technology tightens the space between cutting paths, translating directly into material savings that scale with every order you run.
~40% Efficiency Gain — Production That Never Stops
With continuous cutting-while-feeding operation, the MI90 keeps the line moving. Manufacturers see an average efficiency boost of 40% compared to conventional multi-layer cutting equipment — a direct, measurable impact on throughput.
Built for the Materials You Actually Run
The MI90 handles the full range of materials high-volume soft-goods manufacturers depend on:
- Knitted fabrics and denim
- Woven and non-woven textiles
- Automotive composite PVC
- Synthetic and artificial leather
- Polyester and technical textiles
- Functional hardshell jacket fabrics, fleece, and terry cloth
Where the MI90 Delivers
| Industry | What High-Ply Cutting Unlocks |
|---|---|
| Apparel manufacturing | High-volume garment components — jackets, sportswear, workwear — cut faster, cut consistent |
| Automotive interiors | Seat fabrics, upholstery, and composite interior panels at production scale |
| Home furnishings | Sofa and upholstery fabric processing without sacrificing precision |
| Footwear | Multi-layer components ready for volume footwear manufacturing |
| Luggage | Technical and composite materials cut clean, cut fast |
High-Ply Cutting vs. Standard Multi-Layer Cutting
| Standard Multi-Layer Cutting | JWEI MI90 High-Ply Cutting |
|---|---|
| Lower stack height per cycle | Up to 90mm cutting height per cycle |
| More cycles needed to fulfill volume orders | Fewer cycles, faster order fulfillment |
| Accuracy drifts as stack height increases | IKI technology guarantees top-to-bottom consistency |
| Standard vacuum hold-down | 200mbar vacuum retention for rock-solid stability |
Frequently Asked Questions
What does "high-ply" mean in digital fabric cutting?
High-ply cutting is a digital cutting system's ability to process a tall, compressed stack of fabric layers — often dozens to over a hundred — in a single cutting cycle while keeping every layer, top to bottom, dimensionally consistent.
How many layers can the JWEI MI90 cut in a single high-ply cycle?
The MI90 delivers a maximum compressed cutting height of 90mm. Depending on material thickness, that's dozens — and for thinner materials, well over a hundred — layers cut in one high-ply cycle.
Does high-ply cutting sacrifice accuracy for volume?
Not with the MI90. Its Intelligent Knife Intelligence (IKI) technology compensates for knife deflection in real time, so the top and bottom of a full 90mm stack match perfectly, with cutting error held to ≤1mm.
What industries get the most value from the JWEI MI90?
Apparel, automotive interiors, home furnishings, footwear, and luggage manufacturers running high-volume, multi-layer production see the fastest returns — more output per cycle, less material waste, more consistent quality.
Scale Your Production with High-Ply Cutting from JWEI
For manufacturers ready to move beyond the limits of conventional multi-layer cutting, the JWEI MI90 delivers the ply height, speed, and precision that high-volume production demands — backed by JWEI's 30 years of digital cutting expertise and a global installation base across 120+ countries and regions.
See the full specifications for the JWEI MI90 high-ply cutting system, explore the complete MI Multi-Layer Cutting System lineup, or contact JWEI to talk with our team about your production requirements.
