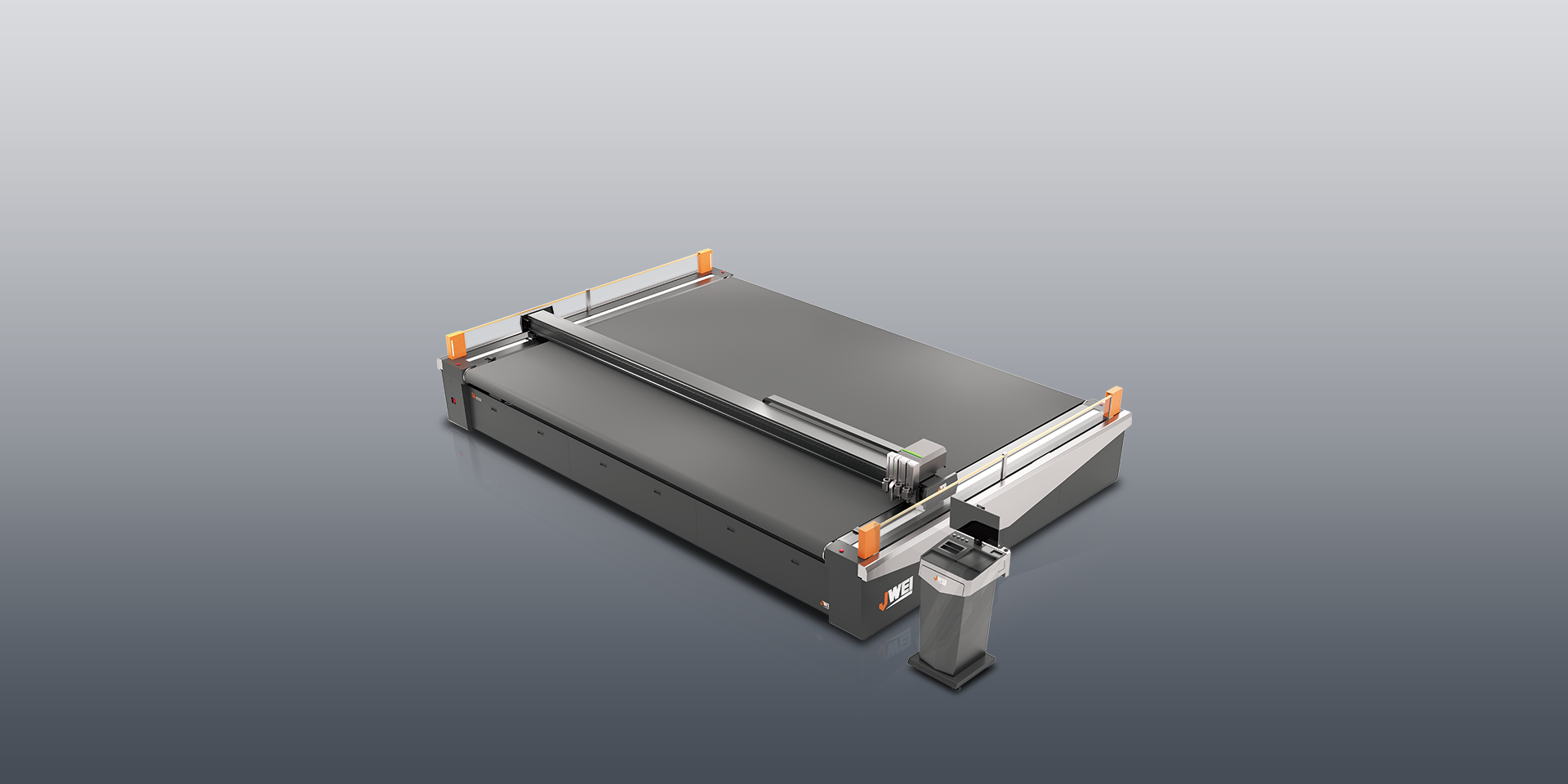

SL5232
Large-Format Digital Cutting System
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions
The SL5232 flatbed cutter is another extra-large format cutting machine launched following the SL3232 flatbed cutter, featuring an ultra-wide cutting area of 5.2 × 3.2 meters. Equipped with an active roll-fed material stand, it enables automatic cutting of extra-long materials. In addition to its large-format cutting capability, the SL5232 flatbed cutter also delivers ultra-high-speed performance, powered by a magnetic levitation linear drive system that achieves cutting speeds of up to 3 meters per second—making it especially suitable for cutting large-format materials such as soft films, banner fabric, and tent fabric. The machine also offers ultra-high precision, capable of cutting circles as small as 1 mm in diameter. With its non-contact magnetic levitation technology and bus-controlled electric drive system, the SL5232 flatbed cutter ensures both high speed and high accuracy, making it ideal for handling large-format materials while maintaining the ability to perform fine, detailed cuts.
Extra-Large Cutting Area
Features an ultra-wide 5.2m cutting width and an active roll-fed material stand, supporting automatic cutting of extra-long materials.
High Speed
Even with an ultra-wide 5.2m cutting area, the machine still achieves an operating speed of 3m/s, ensuring optimal cutting efficiency.
High Precision
Equipped with a top-tier M7 control motherboard and advanced motion control algorithms, it delivers precise cutting of circles as small as 1mm.
Ultra Safe
Equipped with four layers of safety mechanisms to ensure comprehensive operator protection:proximity slow-cut protection, lift-type safety guard, infrared anti-collision sensors, and an emergency stop system. These features work together to deliver a safe and secure cutting environment under all operating conditions.
Application Scenarios
The SL5232 flatbed cutter is designed for high-speed cutting of large-format materials such as soft film, car wrap, lightbox fabric, banner fabric, tent fabric, and inflatable castles. It is widely used in the outdoor advertising industry and large-format material processing, delivering efficient and precise batch production with its extra-large cutting area and high-speed performance.
Banner
KT board

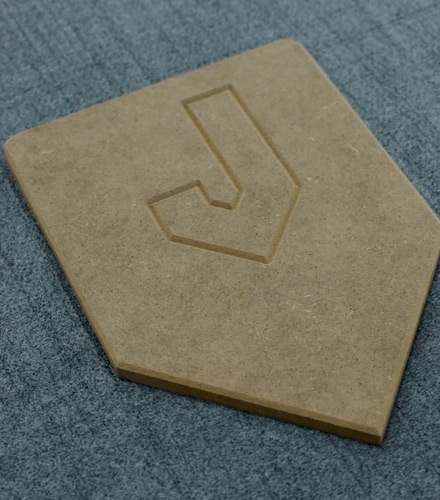

MDF foam

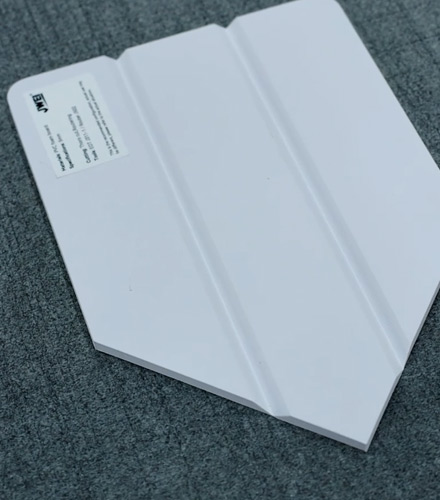

PVC foam board
Recommended Configuration

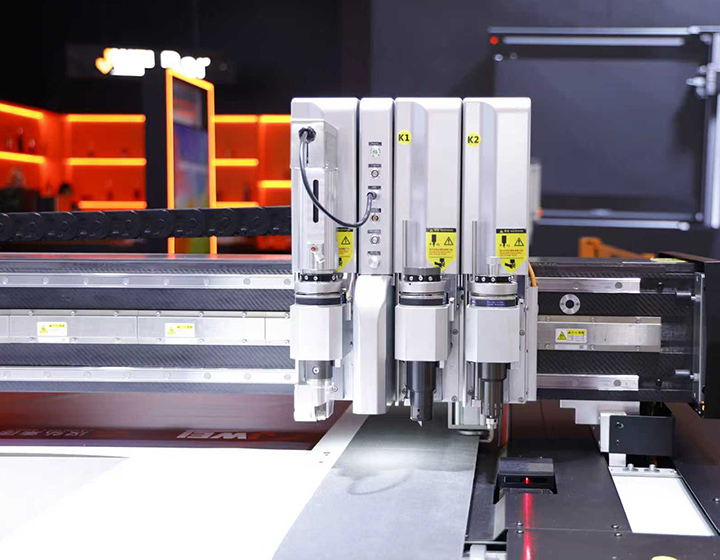

Rotary knife cutting tool
Multiple blades options available, suitable for cutting single-layer and limited multi-layer fabrics, including various woven and knitted textiles,as well as dry carbon fiber fabrics. In the advertising industry, it enables precise cutting of materials such as flag fabric, art canvas, and warp-knitted fabrics.

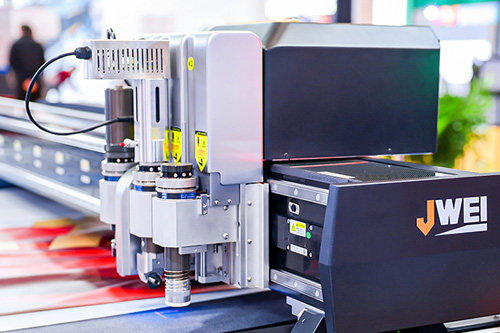

Electric oscillating Tool
Equipped with a built-in high-frequency Maxon motor reaching speeds of up to 18,000 RPM and specially designed tungsten steel hardened blades, it effortlessly handles cutting of tougher and thicker materials—such as corrugated board, honeycomb board, KT board, and PVC foam board—with high speed and clean, smooth edges.

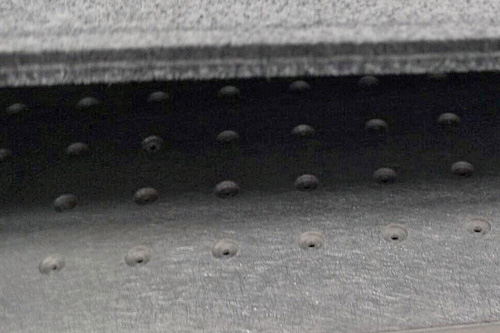

Aerospace Honeycomb Aluminum Plate + Felt Tabletop
Made with aerospace-grade aluminum honeycomb panels: strong, weather-resistant, highly flat, and resistant to deformation even under heavy loads. The internal honeycomb structure allows smooth airflow. Optional zoned vacuum suction provides powerful airflow and strong suction force.

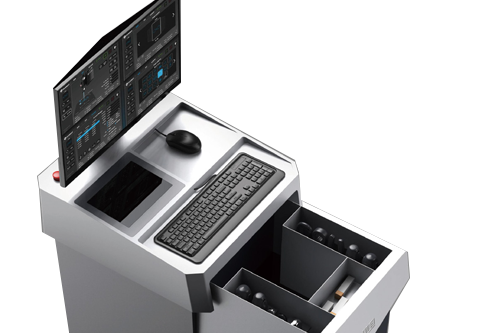

Independent Control Platform (Excluding Computer)
This platform integrates an emergency stop button with a touch screen human-machine interface, which is user-friendly and easy to operate, facilitating the quick setup of various cutting parameters. It also provides space for PC installation.
Camera Positioning System
For printed materials, the camera positioning system enables fast and accurate cutting alignment. With the integrated QR code-based job classification module, it supports automated image adjustment and production of different batches in small quantities.
Optional Tools

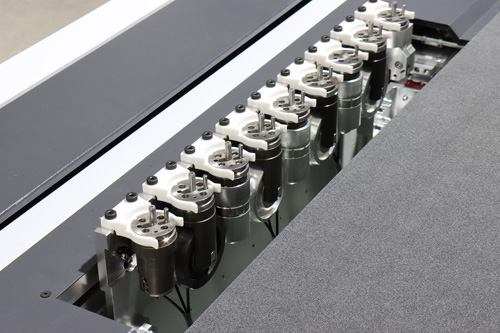

Automatic Tool Changer
Part description
V-CUT Tool For Grey Board
Part description
V-CUT Tool For Photo Frame
Part description
V-CUT Tool For Multi-angle
Part description
V-CUT Tool For Photo Frame
Part description
Electric Foam Cutting Tool
Part description
Explosion-proof Pressure Wheel
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | SL5232 |
| Multi-functional Tool Head | Multi-functional Tool Head Multi-tool fixing holes, quick insert tool fixing, easy-to-replace cutting tools, plug-and-play, set cutting, creasing,drawing, router and other functions in one, optional ATC module. |
| Tools | Electric oscillating tool, drag knife, rotary tool, router tool module, plotting tools etc. |
| Max. Operating speed | 3000mm/s |
| Max. Cutting Thickness | 50mm * |
| Repeat Precision | <0.05mm |
| Cutting Materials | ABS board, PVC board, space board, aluminium-plastic board, lamp sheet, back glue, PVC foam board, KT board, acrylic, magnetic sticker, self-adhesive, etc |
| Material Fixation Mode | Vacuum absorption |
| Software resolution | 0.025、0.01、0.1 optional |
| Transmission Mode | Ethernet port |
| Drive System | Bus controller, advanced servo system, imported linear guide rail, lead screw, linear motor drive |
| Instruction system | HP-GL compatible format |
| Automatic knife setting | Non-contact tool setting mode for drag knife, rotary tool, electric oscillating tool, creasing wheel tool, v-cut tool, etc. |
| Automatic tool setting accuracy | 0.05mm |
| Rated Capacity | 45kVA |
| Rated Voltage | 380V±10% |
| Machine Weight | 4600kG |
| Effective Cutting Size (WxL) | 5200mm×3200mm |
| Machine Size (WxLxH) | 6557mm×4317mm×1406mm |
Note: * will be determined based on the specific materials in the actual application scenario

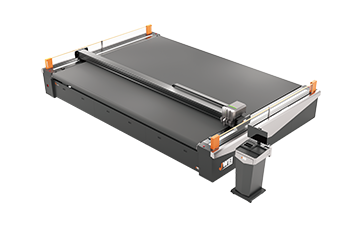

JWEI SL5232 Large Format Digital Cutting System for Heavy-Duty Production
JWEI SL5232 Super Large-Format Digital Cutting System (3.2x3.2m effective cutting area) is an industrialized, die-free CNC finishing solution engineered for advertising signage, packaging, and composite materials. Combining an ultra-high speed of 3m/s with automated Laser Tool Alignment, it delivers sub-millimeter precision (1mm) for high-volume automated packaging production and technical textile processing. Designed to eliminate bottlenecks in grand-format workflows, the SL5232 seamlessly replaces traditional die-cutting with flexible, high-efficiency digital automation.
Frequently Asked Questions (FAQ)
Q: What makes the JWEI SL5232 a preferred digital cutting system for large-scale operations?
A: The JWEI SL5232 is a premium heavy-duty digital cutting system specifically engineered for large-format and high-volume production. Featuring an expansive working area 5200mm*3200mm, industrial-grade stability, and multi-functional tooling options, it delivers unmatched precision and speed when processing oversized materials or handling non-stop manufacturing workflows.
Q: What industries and materials are best suited for the SL5232 digital cutting system?
A: This versatile digital cutting system is highly adaptable, making it ideal for industries like advanced packaging, advertising signage, automotive upholstery, and wind energy composites. It easily handles a vast array of materials, including heavy corrugated board, honeycomb panels, PVC, acrylic, leather, carbon fiber, and multi-layer industrial textiles.
Q: How does the JWEI SL5232 ensure accuracy and reduce material waste across large formats?
A: The SL5232 utilizes an advanced vision registration system paired with JWEI’s intelligent nesting software. The digital cutting system automatically scans material contours, corrects alignment errors in real time, and optimizes pattern layouts to achieve near-zero gap cutting. This guarantees immaculate edge quality while maximizing material yield and eliminating costly scrap waste.
