SL1632

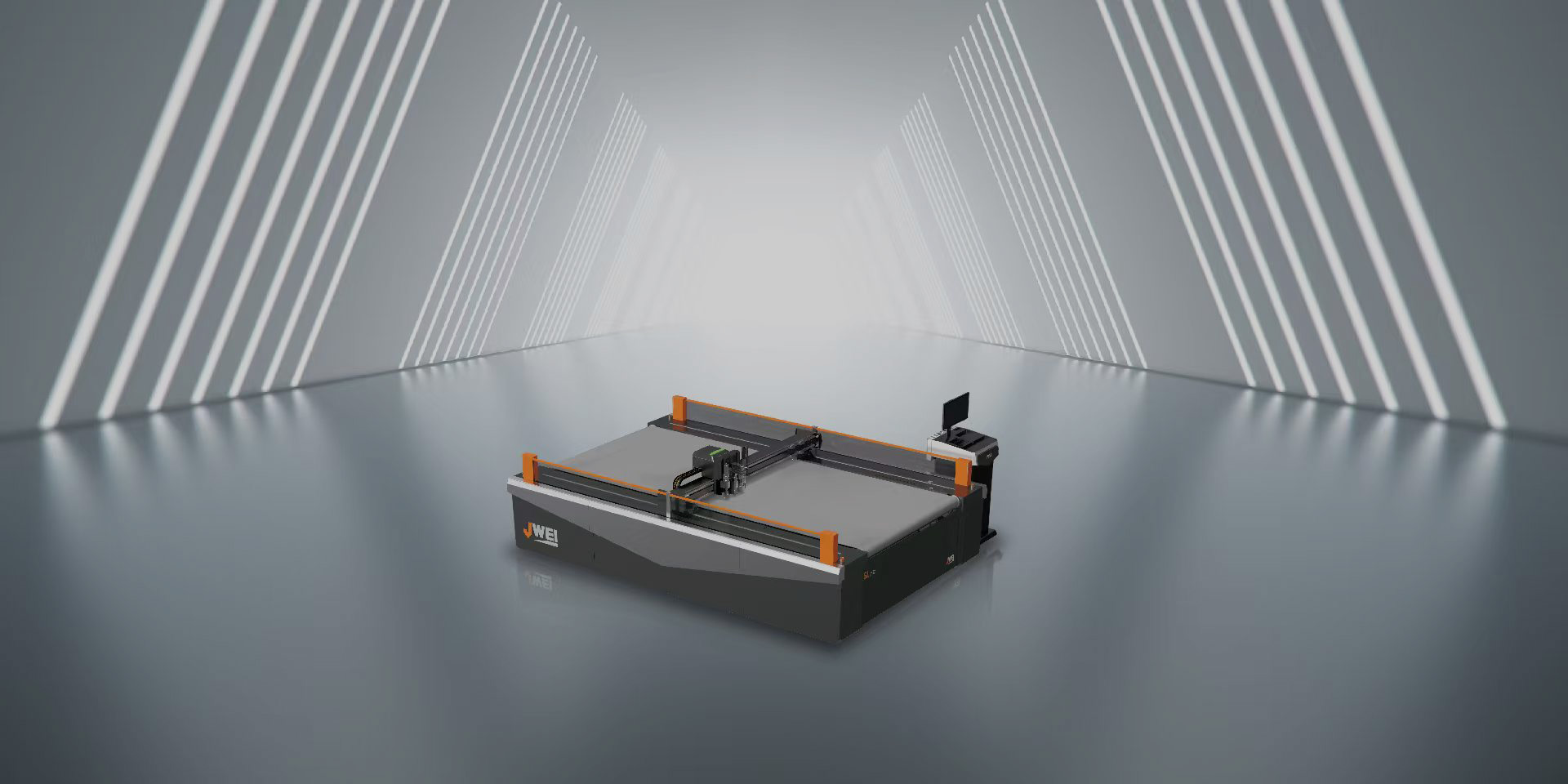

JWEI SL1632 large format digital cutter cutting table
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions
SL1632 Cutting System is a revolutionary ultra-high-speed intelligent cutting machine! Powered by magnetically levitated drive technology, it achieves lightning-fast cuts at an astonishing 3 meters per second. Forget the inaccuracies of traditional physical blade alignment – it utilizes laser-guided positioning to ensure every cut is flawlessly precise. Even more impressive, its state-of-the-art motion control algorithms enable it to consistently cut intricate patterns, handling even ultra-fine details like 1mm diameter circles with impeccable precision. Furthermore, it automatically changes tools and milling cutters – truly hands-free operation – drastically reducing changeover time. This means significantly higher production efficiency, less downtime, and maximized throughput!
Magnetic Levitation Drive + Linear Motors
Even with its ultra-large cutting format, the SL1632 achieves an impressive running speed of 3 m/s, thanks to its magnetic levitation and linear motor drive system—ensuring optimal cutting speed without compromising precision.
Advanced motion control algorithms
Powered by the cutting-edge M7 control board, the SL1632 utilizes an industry-leading motion control algorithm that enables flawless cutting of 1mm micro-circles—delivering unmatched precision for the most demanding applications.
Powerful Vacuum with Noise Reduction Technology
A newly optimized airflow system delivers exceptionally strong suction, ensuring more stable material fixation during cutting. Meanwhile, the machine operates at just 64dB, comparable to standard household appliances—providing a quiet and comfortable working environment.
Four Layers of Safety Protection
The SL1632 is equipped with four layers of safety mechanisms to ensure comprehensive operator protection:Proximity slow-down protection; Lift-type safety guard;Infrared anti-collision sensors;Emergency stop system.These features work together to deliver a safe and secure cutting environment under all operating conditions.
Laser Tool Alignment
Utilizes laser-based tool alignment to eliminate potential errors associated with traditional physical calibration methods—ensuring greater precision and reliability.
Automatic Tool Change (ATC) and Automatic Bit Change (ABC)
Eliminates the need for manual tool swaps by automatically changing between different cutting tools, significantly reducing downtime and improving workflow efficiency.
Application Scenarios
Ideally suited for high-speed cutting of sheet and roll materials such as KT board, car wraps, PVC foam board, sticker ,acrylic and lightbox graphics. The SL1632 Cutting System is especially well-suited for businesses involved in advertising and the production of printed materials.
Corrugated board
KT board
MDF foam
PVC foam board
Recommended Configuration
Rotary knife cutting tool
Multiple blades options available, suitable for cutting single-layer and limited multi-layer fabrics, including various woven and knitted textiles,as well as dry carbon fiber fabrics. In the advertising industry, it enables precise cutting of materials such as flag fabric, art canvas, and warp-knitted fabrics.
Electric oscillating Tool
Equipped with a built-in high-frequency Maxon motor reaching speeds of up to 18,000 RPM and specially designed tungsten steel hardened blades, it effortlessly handles cutting of tougher and thicker materials—such as corrugated board, honeycomb board, KT board, and PVC foam board—with high speed and clean, smooth edges.
Quadruple Safety Protection
Proximity Slow-Down + Lift-Type Guard + Infrared Collision Prevention + Emergency Stop. These four responsive safety mechanisms work together to ensure both operator safety and machine reliability. With rapid response times and intelligent protection, the SL3232 provides full-coverage safety to safeguard personnel and maintain stable operation.
Aerospace Honeycomb Aluminum Plate + Felt Tabletop
Made with aerospace-grade aluminum honeycomb panels: strong, weather-resistant, highly flat, and resistant to deformation even under heavy loads. The internal honeycomb structure allows smooth airflow. Optional zoned vacuum suction provides powerful airflow and strong suction force.
Independent Control Platform (Excluding Computer)
This platform integrates an emergency stop button with a touch screen human-machine interface, which is user-friendly and easy to operate, facilitating the quick setup of various cutting parameters. It also provides space for PC installation.
Camera Positioning System
For printed materials, the camera positioning system enables fast and accurate cutting alignment. With the integrated QR code-based job classification module, it supports automated image adjustment and production of different batches in small quantities.
Optional Tools
Automatic Tool Changer
Part description
V-CUT Tool For Grey Board
Part description
V-CUT Tool For Photo Frame
Part description
V-CUT Tool For Multi-angle
Part description
V-CUT Tool For Photo Frame
Part description
Electric Foam Cutting Tool
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | SL1632 |
| Multi-functional Tool Head | Multi-tool fixing holes, quick insert tool fixing, easy-to-replace cutting tools, plug-and-play, set cutting, creasing, drawing, router and other functions in one, optional ATC module. |
| Tools | Electric oscillating tool, drag knife, rotary tool, router tool module, plotting tools etc. |
| Max. Operating speed | 3000mm/s * |
| Max. Cutting Thickness | 50mm * |
| Repeat Precision | ＜0.05mm * |
| Cutting Materials | ABS board, PVC board, space board, aluminium-plastic board, lamp sheet, back glue, PVC foam board, KT board, acrylic, magnetic sticker, self-adhesive, etc. |
| Material Fixation Mode | Vacuum absorption |
| Software resolution | 0.025、0.01、0.1 optional |
| Transmission Mode | Ethernet port |
| Drive System | Bus controller, advanced servo system, imported linear guide rail, lead screw, linear motor drive |
| Instruction system | HP-GL compatible format |
| Automatic knife setting | Non-contact tool setting mode for drag knife, rotary tool, electric oscillating tool, creasing wheel tool, v-cut tool, etc. |
| Automatic tool setting accuracy | 0.05mm |
| Machine Power | 15kW |
| Rated Voltage | 380V±10% |
| Effective Cutting Size (WxL) | 1600mm×3200mm |
| Machine Size (WxLxH) | 3005mm×4305mm×1405mm |
Note: * will be determined based on the specific materials in the actual application scenario

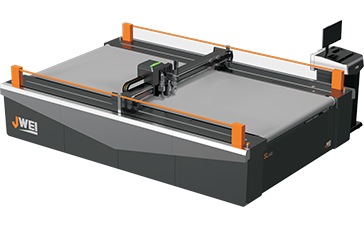

JWEI SL1632 Flatbed Digital Cutting Table for Precision Manufacturing
JWEI SL1632, a heavy-duty flatbed digital cutting table engineered for diverse industrial applications. Featuring a versatile 1.6m*3.2m working area, this advanced CNC system delivers precise, die-less knife cutting directly from CAD files, entirely eliminating tooling costs and setup delays. Whether processing rigid advertising boards or flexible composites, the SL1632 flatbed digital cutting table leverages smart nesting software and powerful vacuum zoning to secure materials perfectly, ensuring pristine, waste-free cut paths for a reliable 24/7 production cycle.
Frequently Asked Questions (FAQ)
Q: What are the key benefits of using the JWEI SL1632 flatbed digital cutting table?
A: The JWEI SL1632 flatbed digital cutting table offers a spacious 1600mm*3200mm flatbed architecture that perfectly accommodates standard oversized industrial sheets. By utilizing advanced CNC knife technology instead of physical dies, it allows manufacturers to run custom short-runs or high-volume orders with zero tooling lead time and rapid job changeovers.
Q: What materials can the SL1632 flatbed digital cutting table precision-cut?
A: Equipped with a highly versatile modular tool head, this industrial flatbed digital cutting table easily handles a wide spectrum of rigid and flexible substrates. It delivers flawless, fray-free edges on corrugated cardboard, honeycomb board, PVC foam, KT board, acrylic, leather, gaskets, and advanced multi-layer composites.
Q: How does the zoned vacuum bed on the SL1632 improve cutting accuracy?
A: The SL1632 flatbed digital cutting table features an intelligent, multi-zone vacuum suction system. By concentrating powerful hold-down force specifically where the material is placed, it prevents any shifting, lifting, or warping during high-speed cutting, guaranteeing exceptional dimensional accuracy and clean edge finishes.
