TBP05-2218-RQ
Small-batch garment production and sampling
Watch Video
Inkjet printing and cutting are synchronized

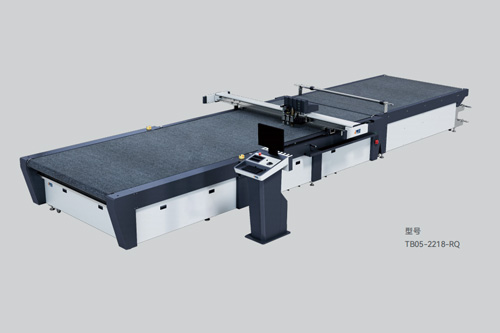

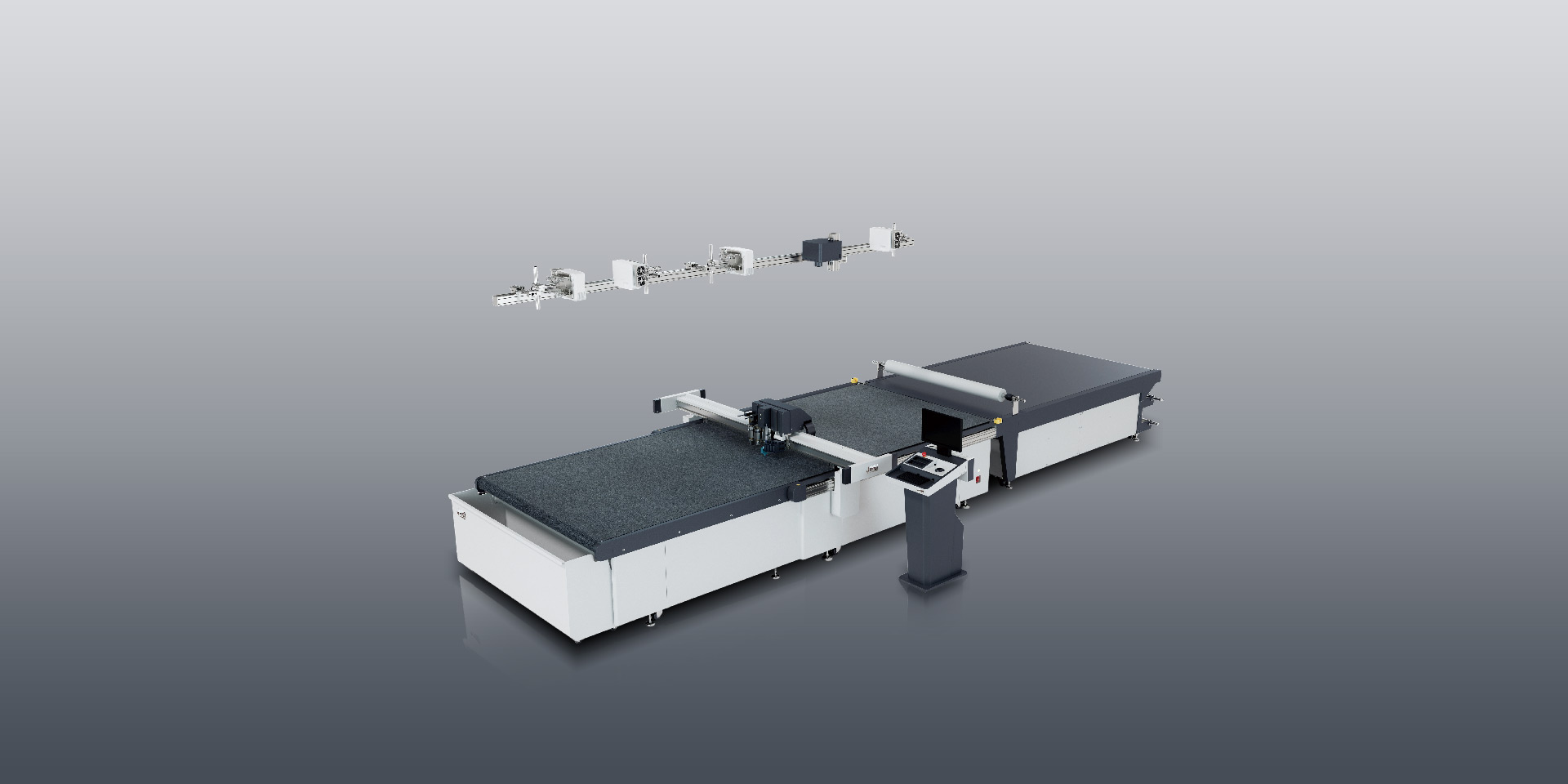

The TBP05-2218-RQ Garment Cutting Machine is an advanced cutting machine integrating high efficiency, precision, and versatility. Ideal for intelligent cutting applications in high-end bespoke tailoring, sportswear/innerwear, team uniforms, and various other garments. Especially suited for small-batch, quick-turn production, it is compatible with various materials including knits, wovens, leather, and fur. Featuring a dual punching module, four-cartridge inkjet module, a new control system, and advanced suction-following technology, it ensures high-speed and high-precision cutting. Its 5D vision alignment system streamlines the cutting workflow and boosts efficiency. Multiple cutting tools and an auto-waste removal function further enhance operational efficiency and versatility. This machine is the ideal choice for the garment manufacturing industry to enhance production efficiency and product accuracy.
Application Scenarios
The TBP05-2218-RQ Garment Cutting Machine is engineered for intelligent cutting of high-end bespoke tailoring, sportswear/under garment, group uniforms, school uniforms, and workwear, making it ideal for small-batch quick-response production. This versatile system handles diverse materials including knits, wovens, fur/leather (e.g., shearling lambskin), oxford cloth, canvas, foam materials, faux leather, cotton-linen fabrics, and mixed fabrics.
Knit
Woven
Textiles and silks
Linen
Chiffon
Three proof cloth
Recommended Configuration

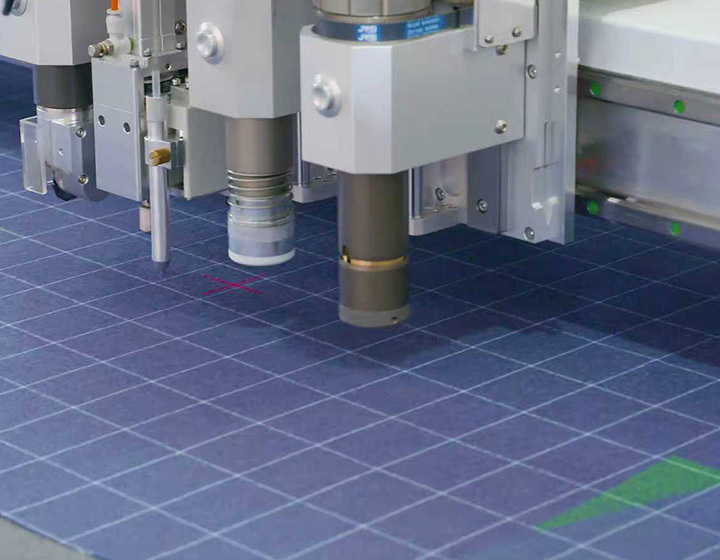

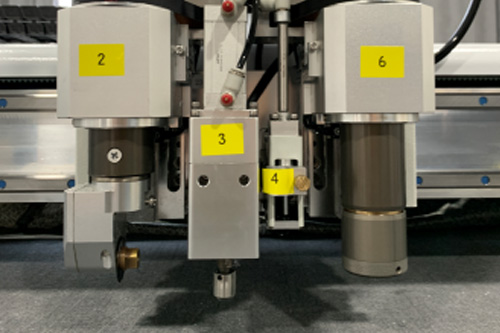

Dual punching module
Independent punching module enables high-speed punching of straight notches and V-notches, while the rotary punch/needle punch supports functions such as darting, pocket positioning, and more. It can perform advanced cutting processes, including external V-notch cutting, internal corner cutting without overcutting, and precise cuts with a minimum 2mm gap without overcutting.

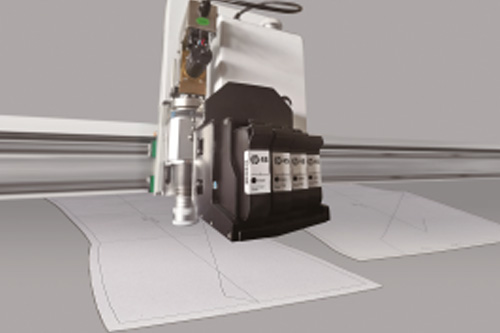

Four-Cartridge Inkjet Module
The four-cartridge inkjet module delivers double the efficiency compared to commonly used dual-nozzle systems on the market. It produces clear and precise ink lines, with a cutting-to-print alignment error controlled within 1mm. The line thickness is adjustable, and extended cutting files can be processed continuously across multiple sections.
Brand-new control system
Equipped with a brand-new control system, the machine achieves higher arc-turning speeds and allows tool rotation during movement. Combined with a high-performance, high-power servo motor, it delivers faster cutting speeds and significantly improved overall efficiency.
Following Suction System
The newly upgraded vacuum system ensures stronger material hold and fixation, resulting in improved cutting quality for small angles, small pieces, and flexible materials.

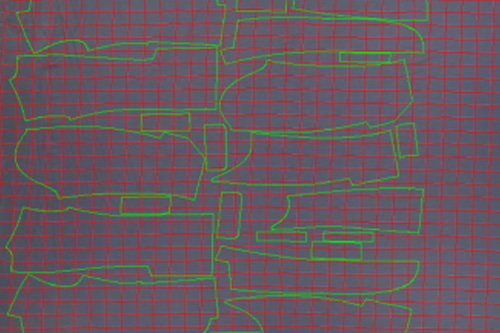

Visual plaid stripe matching system
Unlike traditional methods requiring perfectly aligned placement of patterned fabrics, simply lay the fabric flat. The vision system automatically matches the pattern with the CAD layout, enabling precise cutting of stripe- and plaid-matched pieces.

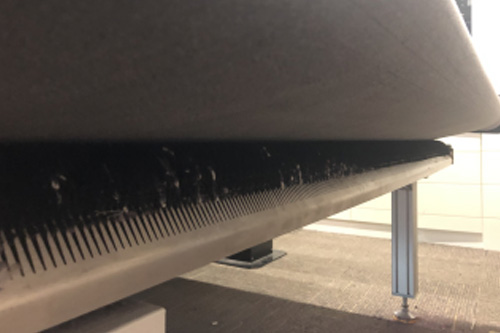

Automatic Waste Removal
Waste clearance activates automatically during table rolling, enabling fast and convenient cleaning of the working surface.
The automatic waste removal function activates as the cutting table rolls, enabling fast and convenient cleanup of the work surface.
Optional Tools
I/V notching tool
Part description
1mm oscillating cutting tool
Part description
Rotary knife cutting tool
Part description
Rotary punch needle/ punching tool
Part description
5mm oscillating cutting tool
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | TBP05-2218-RQ | |
| Cutting mode | Leading version | Dual tool holders + double punches + rotating punch + pneumatic pen |
| Flagship version | Dual tool holders + double punches + rotating punch + pneumatic pen + four-jet ink | |
| Tools | Rotary Tool, Oscillating Tool, cutting tools, positioning tools, line-drawing tools, brush tools, inkjet tools, etc. | |
| Maximum cutting speed | 1600mm/s | |
| Maximum cutting thickness | 10mm (Depends on different kinds of materials) | |
| Material Fixation Mode | Vacuum suction | |
| Repeat Precision | ±0.05mm | |
| Network transmission distance | Ethernet port | |
| Residue cleaning system (Optional) | Residue cleaning system waste automatic collector | |
| Stripe and Plaid Matching System (Optional) | Projection Stripe and Plaid Alignment System | |
| Vision Stripe and Plaid Matching System | ||
| Interface | LCD touch screen with EN&CN languages | |
| Drive System | High-Precision Motor, Linear Guide Rails, Rack and Pinion | |
| Rated Power | 13kW | |
| Data Format | PLT, HPGL, NC, AAMA, DXF, XML, CUT, PDF | |
| Rated Voltage | AC 380V±10% | |
| Effective Cutting Area | 2200mm×1800mm | |
| Material Receiving Area | 2000mm×1800mm | |
| Machine Size | 5005mm×2937mm×1350mm（Excluding Material Receiving Hopper and Operating Table） | |
Note: * will be determined based on the specific materials in the actual application scenario.

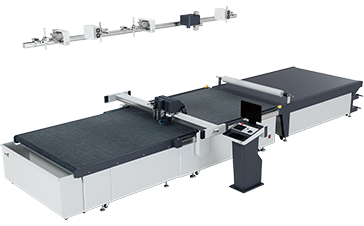

JWEI TBP05-2218-RQ Industrial Digital Fabric Cutting Machine for Garment Production
JWEI TBP05-2218-RQ, a highly agile digital fabric cutting machine custom-built for small-batch garment production and high-end bespoke tailoring. Featuring a specialized $2.2\text{m} \times 1.8\text{m}$ working footprint, this advanced CNC system seamlessly handles versatile textiles, from delicate knits to technical sportswear and dense multi-layer fabrics. By combining JWEI's high-frequency blade technology with an intelligent vision tracking system, this high-performance digital fabric cutting machine executes precision perimeter shapes, synchronized notches, and high-speed inkjet marking directly from CAD data, maximizing fabric yield while shortening turnaround times significantly.
Frequently Asked Questions (FAQ)
Q: What makes the JWEI TBP05-2218-RQ the ultimate digital fabric cutting machine for small-batch apparel production?
A: The TBP05-2218-RQ digital fabric cutting machine is specifically optimized for modern 'on-demand' fast-fashion workflows and custom garment sample houses. By eliminating physical dies and pattern stencils, it allows factories to load multi-format apparel CAD files and cut custom patterns instantly. This cuts down tooling setup costs to zero and enables efficient handling of highly diverse, short-run clothing lines.
Q: What unique tooling features does this digital fabric cutting machine offer for garments?
A: Engineered specifically for the textile trade, this digital fabric cutting machine features an advanced modular tool head equipped with dual tool slots. It simultaneously supports high-speed oscillating blades for clean edge profiles, specialized punch modules for rapid pattern notching, and a four-cartridge inkjet marking system to print clear sewing indicators and text labels directly onto the cut parts.
Q: How does the TBP05-2218-RQ ensure precise alignment on unstable or patterned textiles?
A: Precision is maintained through JWEI's integrated 'RQ' intelligent vision registration system and advanced contour-following vacuum hold-down technology. The camera automatically recognizes fabric grain direction or printed textile graphics, while the localized vacuum bed concentrates suction directly under the cutting zone. This guarantees that the digital fabric cutting machine delivers pristine, distortion-free cuts even on slippery knits or stretching performance sportswear fabrics.
