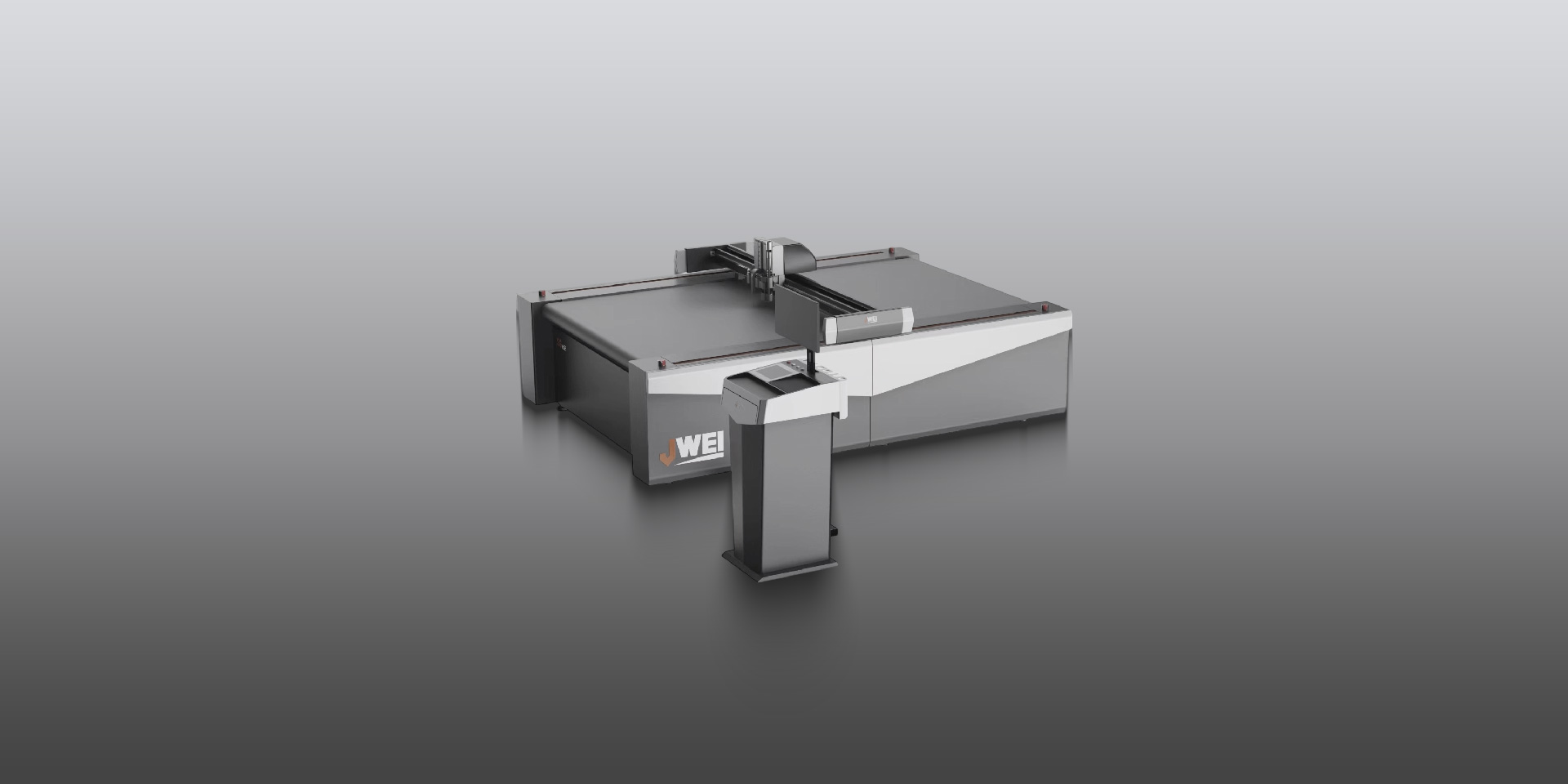

SG1625 | Advertising
Automatic Tool Changing, Automatic Bit Changinger
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions
JWEI SG series High-Precision Flatbed Cutters Systems, newly launched in 2025 as a flagship model, combines striking aesthetics with robust performance. While maintaining industry-leading cutting precision, it incorporates multiple technological innovations to become a premium essential flatbed cutter systems that excels in design, functionality, and cost effectiveness. Its modular design ensures universal applicability across diverse industries, while versatile functional configurations make it a truly versatile all-rounder.
High Speed
Equipped with a self-developed embedded M7 EtherCAT version, the motion control cycle is reduced to just 0.0001 seconds, achieving cutting speeds of up to 2 meters per second.
High-precision
Enhanced small circle cutting accuracy down to 1mm diameter level, utilizing a high-precision, 3-arc-minute gear reducer for ultra-precise CNC cutting; ensures consistent processing quality even for large-volume products, resulting in higher uniformity of finished parts.
High Density
Designed for high-density foam materials, enabling high-precision cutting of display stands, embossing, and slotting. Suitable for intricate, irregular shapes and high-quality materials, it breaks through traditional production limitations.

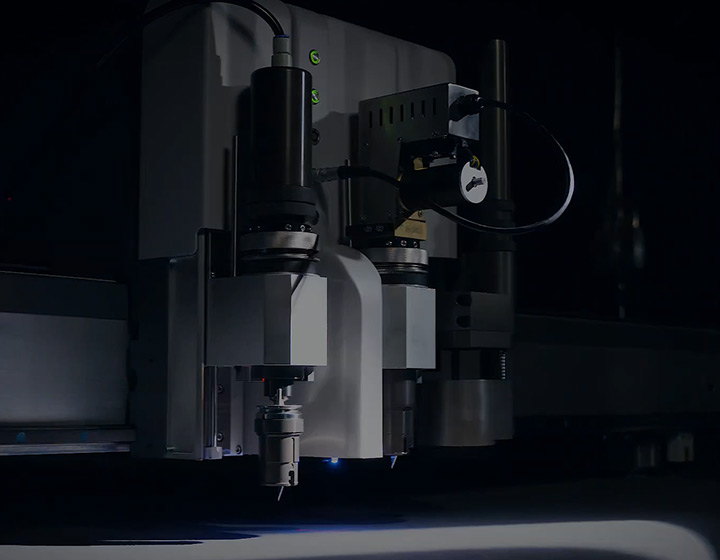

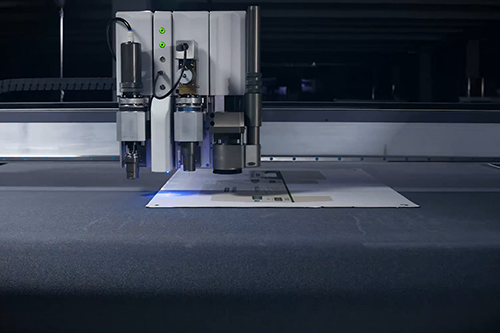

Multiple processes
Featuring a three-head design that integrates a 1.8KW milling spindle and interchangeable tools for flexible selection. Supports a wide range of processes including cutting, milling, chamfering, creasing, and grooving, allowing versatile combinations to handle diverse product types and achieve various processing effects.

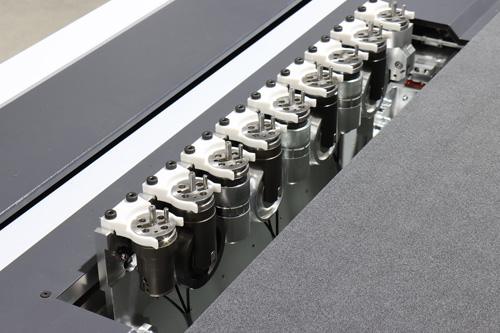

Automatic Tool Change
Automatic Tool Change and Automatic Bit Chane, enables effortless use of various tools and blades. Easily meets customization needs—milling, polishing, chamfering all completed in one go. A wide range of cutting processes at your fingertips.
Precision and Stability
With a self-developed anti-vibration optimization algorithm, modular integrated machine body, and precision-ground transmission system, the suction power is enhanced by over three times—everything is designed to ensure more accurate cutting.
Fully Automatic Tool Setting
Equipped with fully automatic tool calibration, it easily adjusts cutting depth —ensuring more precise cuts without damaging the worktable and delivering cleaner, more refined creases.
Application Scenarios
JWEI SG series Flatbed Cutting Systems are suitable for cutting a wide range of advertising materials in both sheet and roll form. Paired with intelligent, all-in-one cutting solutions, that offer a material database compatibility. Common advertising materials such as KT board, car wraps, self-adhesive vinyl, acrylic, and soft magnetic sheets can all be cut with precision and ease.

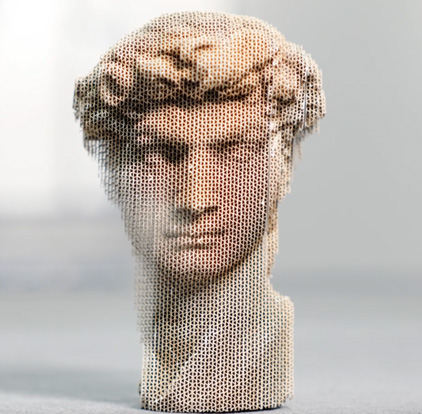

The Human Statue made of Corrugated board
15mm-Acrylic-board
20mm-Acrylic-board
The Chair made of Honeycomb board

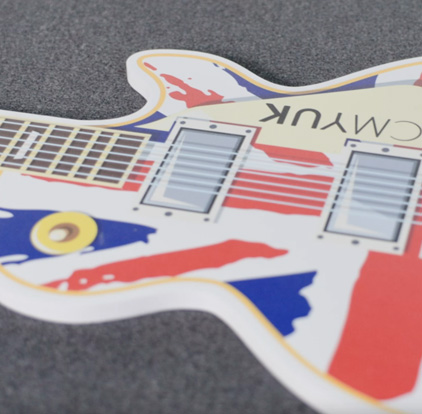

The Guitar made of PVC foam board
The Temple of Heaven made of corrugated board
Recommended Configuration
Electric oscillating Tool
Equipped with a built-in high-frequency Maxon motor reaching speeds of up to 18,000 RPM and specially designed tungsten steel hardened blades, it effortlessly handles cutting of tougher and thicker materials—such as corrugated board, honeycomb board, KT board, and PVC foam board—with high speed and clean, smooth edges.
Universal Cutting Tool
Capable of handling materials with a thickness of up to 5mm. Compared to the oscillating tool, it cuts at a faster speed.
Ethernet Transmission Port
Data transmission is flexible and stable, with enhanced automation scalability; it supports remote upgrades and maintenance, as well as machine control and file access within a local area network (LAN).
Kiss-cut tool
Specifically designed for kiss-cutting of materials such as self-adhesive vinyl and printed advertising back adhesive films. Paired with a high-precision camera positioning system, it enables effortless cutting of even the most complex contour shapes.
Safety Protection
The safety collision design is simple and elegant, featuring an internal infrared light grid device that is highly responsive, ensuring the personal safety of operators and the secure operation of the machine.

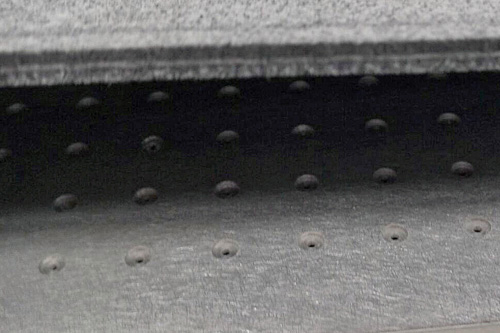

Aerospace Honeycomb Aluminum Plate + Felt Tabletop
Made with aerospace-grade aluminum honeycomb panels: strong, weather-resistant, highly flat, and resistant to deformation even under heavy loads. The internal honeycomb structure allows smooth airflow. Optional zoned vacuum suction provides powerful airflow and strong suction force.

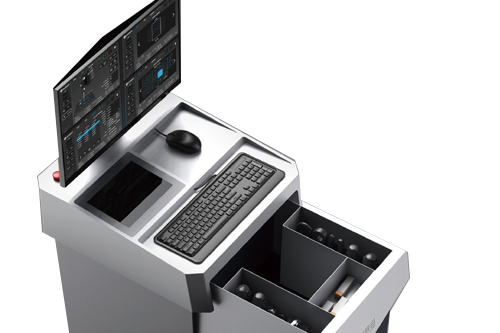

Independent Control Platform (Excluding Computer)
This platform integrates an emergency stop button with a touch screen human-machine interface, which is user-friendly and easy to operate, facilitating the quick setup of various cutting parameters. It also provides space for PC installation.
Camera Positioning System
For printed materials, the camera positioning system enables fast and accurate cutting alignment. With the integrated QR code-based job classification module, it supports automated image adjustment and production of different batches in small quantities.
Optional Tools
Automatic Tool Changer
Part description
V-CUT Tool For Grey Board
Part description
V-CUT Tool For Photo Frame
Part description
V-CUT Tool For Multi-angle
Part description
V-CUT Tool For Photo Frame
Part description
Electric Foam Cutting Tool
Part description

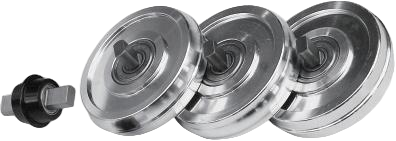

Explosion-proof Pressure Wheel
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
|
Parametera |
Description | |||||
| Model | SG1625 | SG1612 | SG1635 | |||
| Tool head | 2 Tool heads | 3 Tool heads | 2 Tool heads | 3 Tool heads | 2 Tool heads | 3 Tool heads |
| Multi-functional Tool Head | Multi-functional Tool Head Multi-tool fixing holes, quick insert tool fixing, easy-to-replace cutting tools, plug-and-play, set cutting, creasing, drawing, router and other functions in one, optional ATC module | |||||
| Tools | Electric oscillating tool, drag knife, rotary tool, router tool module, plotting tools, etc. | |||||
| Fastest speed | 2000mm/s * | |||||
| Max. Cutting Thickness | 50mm * | |||||
| Repeat Precision | ＜0.05mm * | |||||
| Cutting Materials | ABS board, PVC board, space board, aluminium-plastic board, lamp sheet, back glue, PVC foam board, KT board, acrylic, magnetic sticker, self-adhesive, etc. | |||||
| Material Fixation Mode | Material Fixation Mode | |||||
| Software resolution | 0.025、0.01、0.1 optional | |||||
| Transmission Mode | Ethernet port | |||||
| Drive System | Bus controller, advanced servo system, imported linear guide rail, lead screws, grinding level 0 backlash helical teeth | |||||
| Instruction system | HP-GL compatible format | |||||
| Machine Power | 12kW | 14kW | 14kW | 14kW | 12kW | 14kW |
| Rated Voltage | 380V±10% | |||||
| Effective Cutting Size (WxL) | 1600mm×2500mm | 1600mm×1200 | 1600mm×3500mm | |||
| Machine Size (WxLxH) | 2570mm×3380mm×1415mm | 2570mm×2080mm×1415mm | 2570mm×3380mm×1415mm | |||
Note: * will be determined based on the specific materials in the actual application scenario.

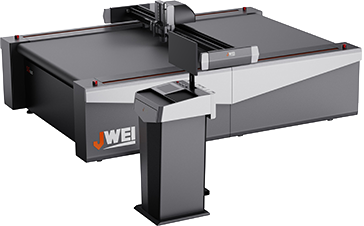

JWEI SG1625-Advertising Precision Flatbed Cutters for Sign & Graphics
JWEI SG1625-Advertising, a high-precision solution designed to lead the market in industrial flatbed cutters. Featuring a production-proven $1.6\text{m} \times 2.5\text{m}$ working area, this advanced CNC machine delivers rapid, die-less contour cutting directly from digital design files, completely replacing slow manual trimming. Engineered to streamline demanding graphics workflows, our flatbed cutters pair intelligent CCD vision registration with versatile modular blade tools, ensuring immaculate, flame-free edge quality on both rigid display boards and flexible media for a highly profitable, 24/7 print-and-cut output.
Frequently Asked Questions (FAQ)
Q: What makes the JWEI SG1625 series standout among commercial flatbed cutters for sign shops?
A: The JWEI SG1625-Advertising stands out among industrial flatbed cutters due to its seamless integration of speed, accuracy, and tool versatility. By operating completely die-less, it allows sign shops and graphics producers to execute intricate shape cutting, kiss-cutting, and V-grooving without investing in expensive physical dies, making custom short-runs and same-day delivery highly profitable.
Q: What specific advertising substrates can these flatbed cutters process?
A: Unlike lasers that produce toxic smoke and burnt edges, these mechanical flatbed cutters utilize rapid knife technology to deliver pristine, eco-friendly finishes. They effortlessly cut a broad spectrum of rigid and flexible substrates, including PVC foam board (Forex), KT board, acrylic, aluminum composite panels (ACP), honeycomb corrugated cardboard, magnetic sheets, and self-adhesive graphics vinyl.
Q: How do JWEI flatbed cutters guarantee precise contour cutting for pre-printed graphics?
A: Perfect print-to-cut alignment is secured by a high-resolution CCD registration camera mounted on the cutting head. The system automatically scans the printed crop marks on the material, and JWEI’s proprietary software dynamically micro-adjusts the cutting tool paths in real time. This ensures our flatbed cutters achieve absolute dimensional precision, compensating perfectly for any substrate stretching or media skew during loading.
