SG1311
Automatic Tool Changer,High-speed and high-precision
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions

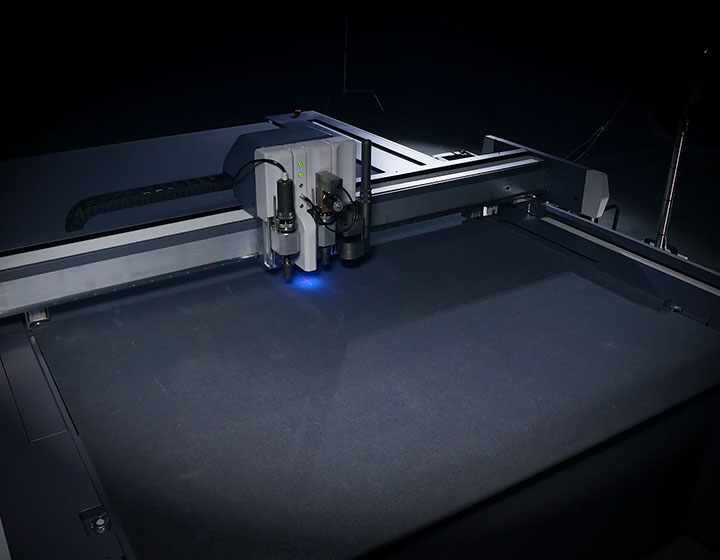

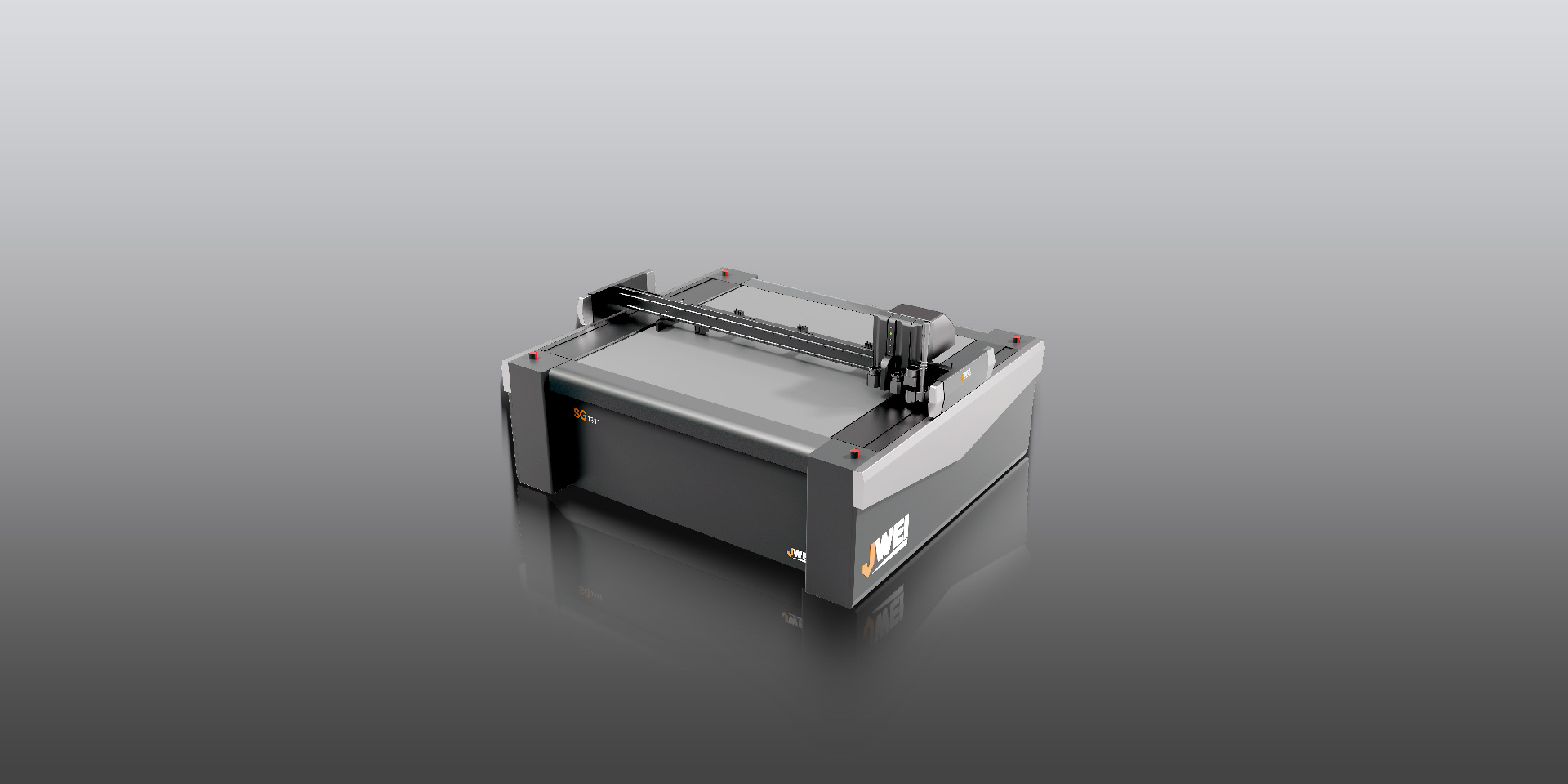

The SG1311 Digital Cutting Table is a specialized cutting machine designed for carton and cardboard prototyping. Equipped with a high-frequency oscillating tool, custom tungsten steel hardened blades, creasing wheels of various widths, and multi-angle V-cut tools. It easily handles cutting, V-grooving, and creasing of materials such as corrugated board, honeycomb board, gray board, and cardstock. No need for additional die-making — it effortlessly produces production packaging design.
Maximized Intelligence
MES System:Streamlining production for smooth operation;
Automatic tool changer:An automatic tool changer enhances productivity and precision by enabling seamless, hands-free switching between tools for multi-process operations.
Performance that delivers
Improved speeds:Now 33.3% faster than the previous generation;
New proprietary chip for precision motion:Ultra precise 0.00015s motion control for redefined speed, accuracy, and efficiency;
One touch start:One-touch start simplifies operation by allowing users to begin the entire cutting process with a single press, reducing setup time and human error.
Increased accuracy
Enhanced precision:Delivered by a fully proprietary control system;
Advanced stability:Powered by a modular integrated machine structure;
Grinding grade drive system:Engineered with a high-precision gantry control algorithm;
Stronger vacuum hold:Over three times the suction power to ensure complete material stability on the bed.

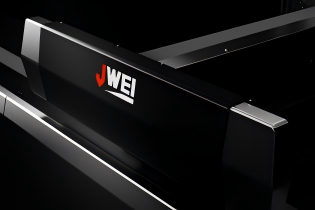

Reimagined Design
Advanced industrial design:Featuring a polygonal fold structure for a sleek contemporary aesthetic ;
Enhanced ergonomics:A superior user experience enhanced by stability and durability.
Optimized functionality
Smart control software:Simplified operation in a single step;
Modular design, flexible splicing:Versatile operating platform,A variety of tools and blades for an efficient workflow;
Noise reduction technology:Now 64db for lower sound and lower frequency.
Additional highlights
NFC Access Control;
Wireless charging;
Automatic tool setting;
Controller software.
Application Scenarios
The SG1311 Digital Cutting Table is suitable for making corrugated boxes, premium gift boxes, paper crafts, display stands, packaging liners, cake inserts, three-dimensional paintings and calligraphy, paper trays, adhesive labels and more.

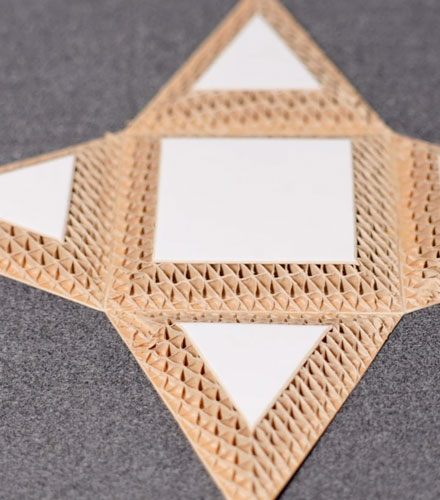

Corrugated board Sculpture
Gray Board Gift Box
Cardboard Box
Honeycomb board Box

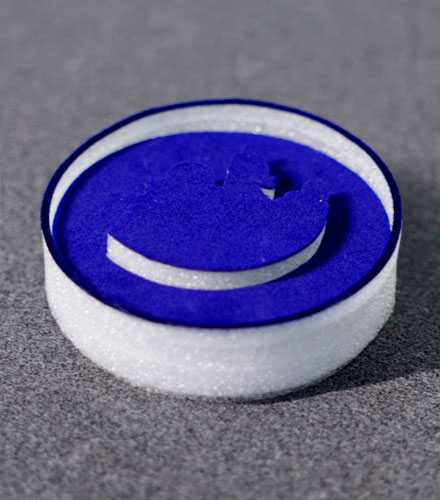

EPE foam
Recommended Configuration
Ethernet Transmission Port
Data transmission is flexible and stable, with enhanced automation scalability; it supports remote upgrades and maintenance, as well as machine control and file access within a local area network (LAN).

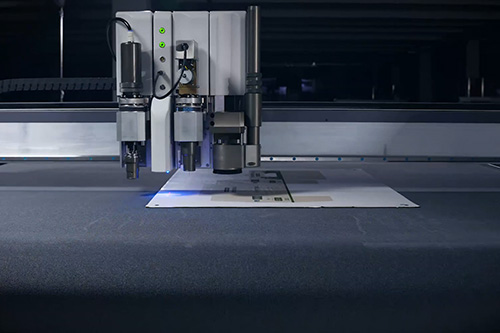

Electric Oscillating Tool
Equipped with a high-frequency Maxon motor, reaching speeds up to 18,000 RPM, and featuring specially made tungsten steel hardened blades, it easily handles cutting various harder and thicker materials (such as corrugated cardboard, honeycomb cardboard, KT board, and foam board) with fast speed and smooth, neat edges.

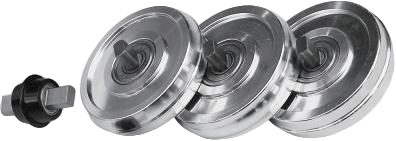

Creasing Wheel Tool
Four sets of creasing wheels with different widths are available, allowing for perfect creasing on various corrugated cardboard and cardstock; optional PVC creasing wheels are available for PVC creasing.
Universal Cutting Tool
Capable of handling materials with a thickness of up to 5mm. Compared to the oscillating tool, it cuts at a faster speed.
Safety Protection
The safety collision design is simple and elegant, featuring an internal infrared light grid device that is highly responsive, ensuring the personal safety of operators and the secure operation of the machine.

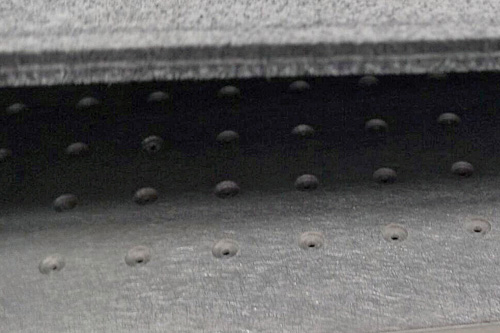

Aerospace Honeycomb Aluminum Plate + Felt Tabletop
Made with aerospace-grade aluminum honeycomb panels: strong, weather-resistant, highly flat, and resistant to deformation even under heavy loads. The internal honeycomb structure allows smooth airflow. Optional zoned vacuum suction provides powerful airflow and strong suction force.

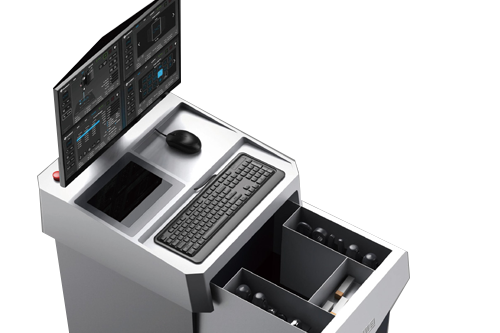

Independent Control Platform (Excluding Computer)
This platform integrates an emergency stop button with a touch screen human-machine interface, which is user-friendly and easy to operate, facilitating the quick setup of various cutting parameters. It also provides space for PC installation.
Camera Positioning System
For printed materials, the camera positioning system enables fast and accurate cutting alignment. With the integrated QR code-based job classification module, it supports automated image adjustment and production of different batches in small quantities.
Optional Tools

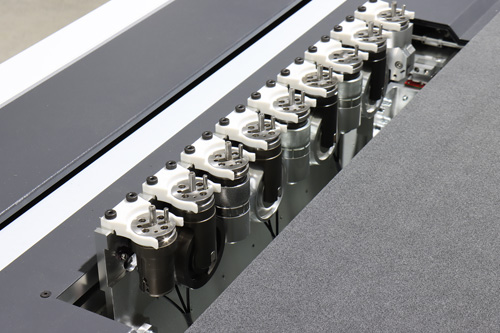

Automatic Tool Changer
Part description
V-CUT Tool For Grey Board
Part description
V-CUT Tool For Photo Frame
Part description
V-CUT Tool For Multi-angle
Part description
V-CUT Tool For Photo Frame
Part description
Electric Foam Cutting Tool
Part description
Explosion-proof Pressure Wheel
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Parametera | Description |
| Model | SG1311 |
| Multi-functional Tool Head | Multi-functional Tool Head Multi-tool fixing holes, quick insert tool fixing, easy-to-replace cutting tools, plug-and-play, set cutting, creasing, drawing, router and other functions in one, optional ATC module |
| Tools | Electric oscillating tool, drag knife, rotary tool, router tool module, plotting tools, etc. |
| Fastest speed | 2000mm/s * |
| Max Cutting Thickness | 50mm * |
| Repeat Precision | ＜0.05mm * |
| Cutting Materials | Cardboard, corrugated, greyboard, PVC/PET, EPE/EVA, hollow sheet, honeycomb panel, flexo, etc. |
| Material Fixation Mode | Vacuum absorption |
| Software resolution | 0.025、0.01、0.1 optional |
| Transmission Mode | Ethernet port |
| Drive System | Bus controller, advanced servo system, imported linear guide rail, lead screws, grinding level 0 backlash helical teeth |
| Instruction system | HP-GL compatible format |
| Total Power | 8.5kW |
| Rated Voltage | 380V±10% |
| Machine Weight | 980kG |
| Effective Cutting Size (WxL) | 1300mm×1100mm |
| Machine Size (WxLxH) | 2259mm×2076mm×1345mm |
Note: * will be determined based on the specific materials in the actual application scenario.

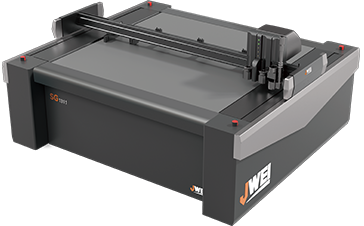

JWEI SG1311 Precision Digital Die Cutter for Packaging & Label Prototyping
JWEI SG1311, a high-precision digital die cutter designed for agile packaging and graphic finishing. Featuring a compact and space-efficient $1.3\text{m} \times 1.1\text{m}$ working area, this advanced CNC system delivers fast, die-less shape cutting directly from digital CAD files, completely removing the lead times and costs of physical dies. Ideal for boutique packaging, custom labels, and complex mock-ups, the SG1311 digital die cutter pairs a multi-functional modular tool head with automated camera registration to guarantee pristine edge quality, crisp creases, and maximum material utilization on every single run.
Frequently Asked Questions (FAQ)
Q: What are the main benefits of using the JWEI SG1311 digital die cutter for short-run packaging?
A: The JWEI SG1311 digital die cutter offers a perfect solution for fast turnaround print shops and structural designers. By replacing traditional physical dies with high-speed digital blade technology, it allows you to transition from a digital design to a finished, crease-and-cut sample within minutes. This completely eliminates tooling costs and setup delays, making short-run custom orders highly profitable.
Q: What materials and tool options can the SG1311 digital die cutter support?
A: Despite its compact size, this industrial digital die cutter features a highly versatile modular tool head. It can simultaneously equip oscillating knives, drag knives, and creasing wheels to effortlessly process a wide range of substrates, including thick corrugated cardboard, folding cartons, PVC foam, vinyl stickers, and specialty laminated stocks.
Q: How does the SG1311 digital die cutter maintain perfect alignment for printed graphics?
A: The SG1311 integrates a high-resolution CCD vision registration system alongside JWEI's proprietary nesting software. The camera automatically scans printed crop marks on the material and dynamically micro-adjusts the cutting path in real time. This ensures that the digital die cutter achieves absolute precision, compensating perfectly for any printing stretch or loading misalignment.
