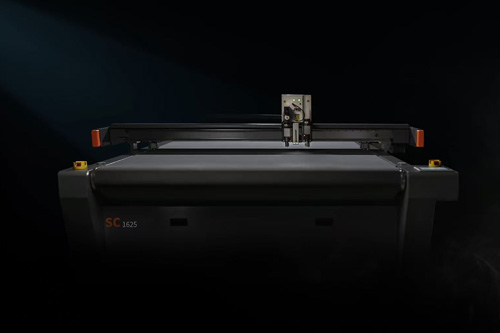

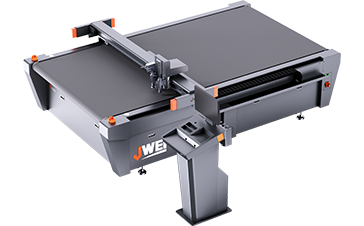

SC1625

A Brand-New Classic Model

Watch Video

Effortless handling of sheet,
roll, and irregular cutting

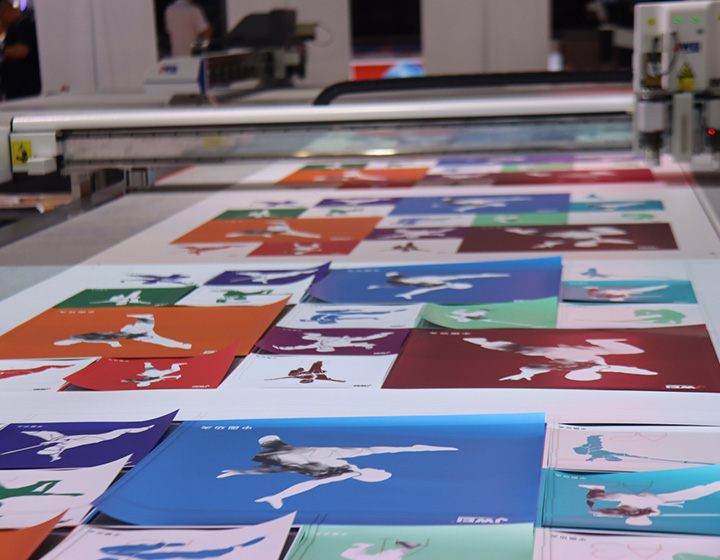

The SC series Flatbed Cutter is suitable for indoor and outdoor photo printing, posters, light boxes, display stands, personalized signs, flags, banners, pull-up banners, vehicle stickers, magnetic stickers, advertising lettering signs, and more.

High-Speed Production with Guaranteed Precision.

With a running speed of up to 1800 mm/s, its performance rivals other flagship models on the market.

Equipped with M7 Pulse Architecture Across the Entire Series

Delivers a generational leap in overall performance with a 30% boost. Front-edge diagonal cutting improves by 40%, pulley torque increases by 2.5 times, and both cutting precision and quality are significantly enhanced.

Significantly Enhanced Suction Power

With an innovative 3D air-guiding duct design, actual suction efficiency is improved by 32.7% year-on-year, delivering better performance under the same pump power.

Significantly Reduced Operating Noise

Achieves ultra-quiet operation at just 64 dB, delivering a library-level silent experience.

Multi-scenario adaptability

Modular, customizable platform with expandable functional components to suit a wide range of specialized production scenarios.

Application Scenarios

As a comprehensive upgrade to the classic CB03Ⅱ model, the SC series offers exceptional cost performance and covers 99% of application scenarios, meeting the daily needs of mid-range users. As a fully renewed version of a market-proven and mature model, the new SC series has been revitalized with fresh innovation, empowered by JWEI’s strong R&D capabilities.

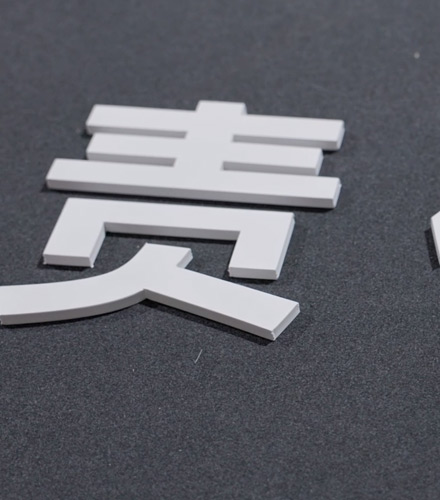

3D letter

3mm cardboard

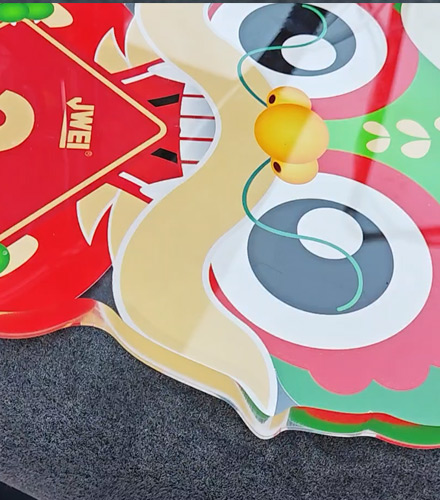

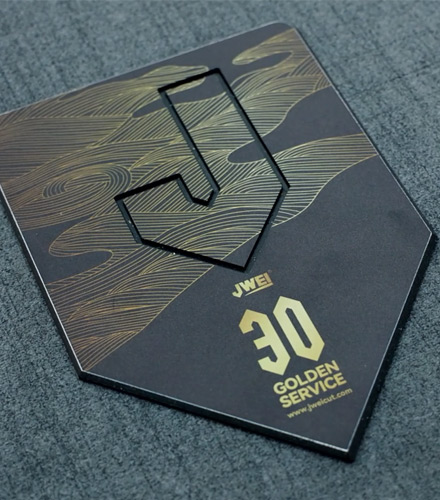

20mm Acrylic board

Aluminum Composite Panel

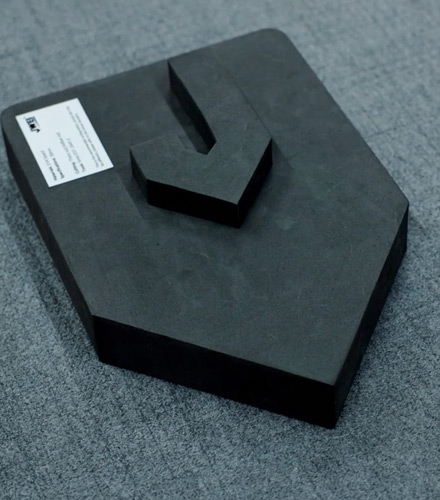

EVA foam

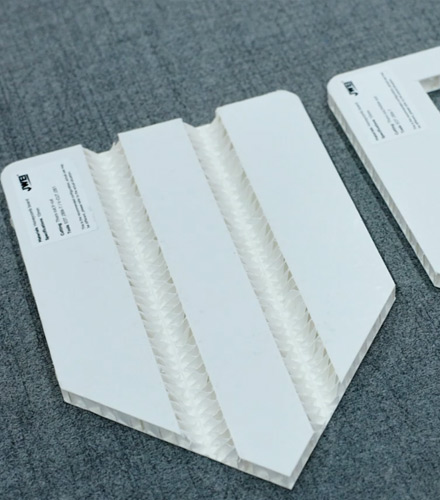

Honeycome board

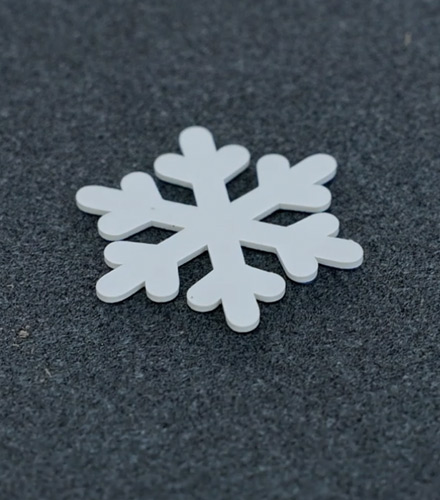

KT board

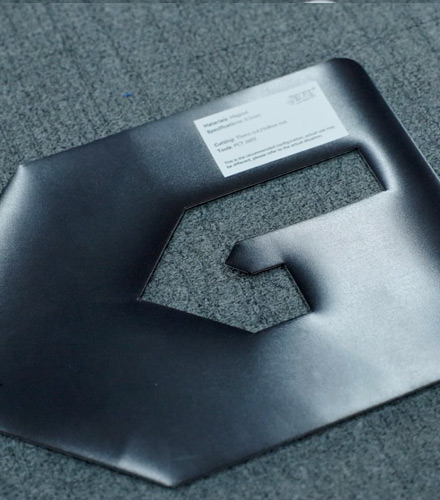

Magnetic

Recommended Configuration

Electric Oscillating Tool

Equipped with a built-in high-frequency Maxon motor reaching speeds of up to 18,000 RPM and specially designed tungsten steel hardened blades, it effortlessly handles cutting of tougher and thicker materials—such as corrugated board, honeycomb board, KT board, and PVC foam board—with high speed and clean, smooth edges.

Safety Protection

The safety collision design is simple and elegant, featuring an internal infrared light grid device that is highly responsive, ensuring the personal safety of operators and the secure operation of the machine.

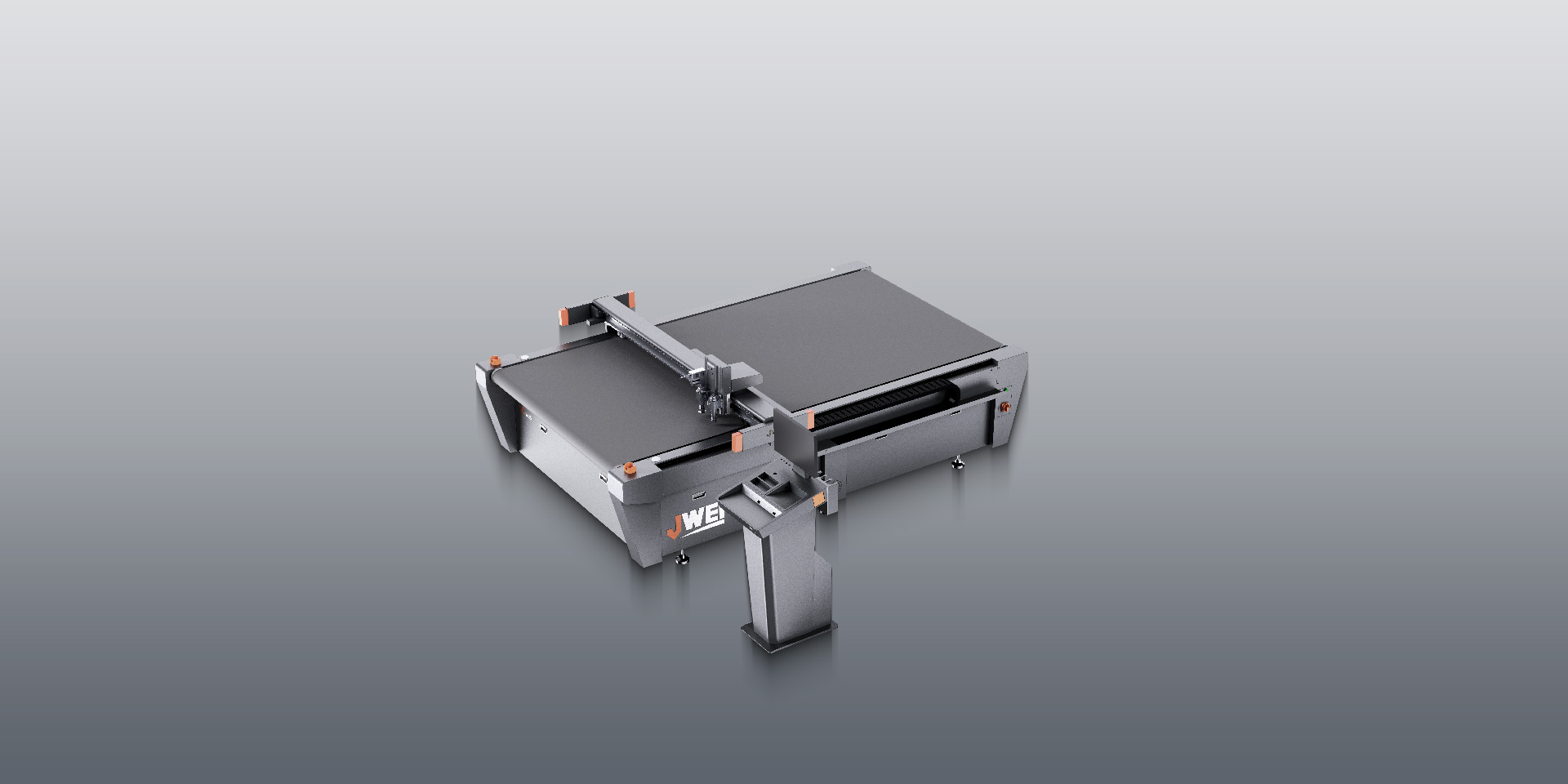

Independent Control Platform (Excluding Computer)

This platform integrates an emergency stop button with a touch screen human-machine interface, which is user-friendly and easy to operate, facilitating the quick setup of various cutting parameters. It also provides space for PC installation.

Universal Cutting Tool

Capable of handling materials with a thickness of up to 5mm. Compared to the oscillating tool, it cuts at a faster speed.

Kiss-cut tool

Specifically designed for kiss-cutting of materials such as self-adhesive labels and printed adhesive films. Paired with a high-precision camera positioning system, it can effortlessly cut even the most complex contour shapes.

Ethernet Transmission Port

Data transmission is flexible and stable, with enhanced automation scalability; it supports remote upgrades and maintenance, as well as machine control and file access within a local area network (LAN).

Aerospace Honeycomb Aluminum Plate + Felt Tabletop

Made with aerospace-grade aluminum honeycomb panels: strong, weather-resistant, highly flat, and resistant to deformation even under heavy loads. The internal honeycomb structure allows smooth airflow. Optional zoned vacuum suction provides powerful airflow and strong suction force.

Camera Positioning System

For printed materials, the camera positioning system enables fast and accurate cutting alignment. With the integrated QR code-based job classification module, it supports automated image adjustment and production of different batches in small quantities.

More Features

Optional Tools

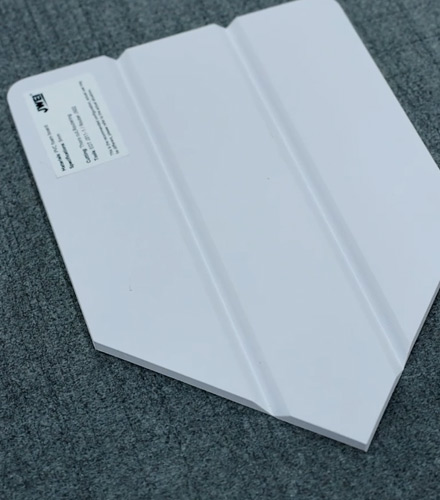

Specifically designed for greyboard grooving, with adjustable angles from 0° to 135°.

V-CUT Tool For Grey Board

Part description

Designed for cardboard grooving, with an adaptive surface and anti-penetration design features, allowing for high-precision grooving of cardboard.

V-CUT Tool For Photo Frame

Part description

Capable of grooving various materials such as honeycomb board and KT board at angles from 0° to 120.

V-CUT Tool For Multi-angle

Part description

90-degree fixed grooving, specifically designed for materials such as picture frames, flexible boards, and acoustic panels for 90-degree corner grooving.

V-CUT Tool For Photo Frame

Part description

Electric Foam Cutting Tool with a 2mm vibration stroke, specifically for cutting foam materials up to 50mm thick such as EPP, pearl cotton, EVA foam, and sponge.

Electric Foam Cutting Tool

Part description

Using a combination of large and small wheels for pre-creasing, it provides an anti-cracking effect on corrugated board, ensuring superior crease quality for digital sampling and small-batch production.

Explosion-proof Pressure Wheel

Part description

Multiple blades options available, suitable for cutting single-layer and limited multi-layer fabrics, including various woven and knitted textiles,as well as dry carbon fiber fabrics. In the advertising industry, it enables precise cutting of materials such as flag fabric, art canvas, and warp-knitted fabrics.

Rotary knife cutting tool

Part description

Imported high-performance milling tool: Features 350W low power consumption with a high rotation speed of up to 20,000 RPM. Effortlessly mill materials up to 20mm thick, including acrylic, aluminum composite panels, ABS, high-density PVC foam board, MDF, and thin aluminum sheets.

High-Grade Imported Milling Cutter

Part description

Top Camera Capturing for Automated Cutting Workflow. The top-mounted camera captures images, and the system automatically generates cutting files through image extraction. The cutter then executes the cutting process autonomously, enabling continuous roll-to-roll cutting. With automatic camera threshold adjustment, there's no need for repeated manual tuning, reducing reliance on operator skill and improving production efficiency by at least 2 times compared to manual mode. Equipped with eye-friendly LED lighting to reduce flicker, it narrows the typical 3–4 mm black edge on materials down to 2–3 mm, significantly increasing material utilization.

Top camera system

Part description

Technical Parameters

JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.

Model	SC1625
Multi-functional Tool Head	Double tool fixing holes, quick insert tool fixing, easy to replace cutting tools, plug and play, set cutting, creasing, drawing, router and other functions in one.
Tools	Electric oscillating tool, drag knife and plotting tool
Safety Device	Infrared sensor,responsive,safe and reliable.
Max. Cutting Speed	1800mm/s *
Max. Cutting Thickness	50mm *
Repeat Precision	±0.05mm
Cutting Materials	ABS board, PVC board, space board, aluminum-plastic board, lamp sheet, back glue, PVC board, KT board, acrylic, magnetic sticker, self-adhesive etc.
Material Fixation Mode	Vacuum absorption
Servo Resolution	±0.01mm
Transmission Mode	Ethernet port
Drive System	Advanced servo system, imported linear guide, synchronous belt, lead screw
Rated Power	9.5kW
Rated Voltage	380V±10%
Machine Weight	1779kG
Effective Cutting Size (WxL)	1600mm×2500mm
Machine Size (WxLxH)	2504mm×3571mm×1325mm

Note: * will be determined based on the specific materials in the actual application scenario.
