SC1625 | Loading cutting unloading

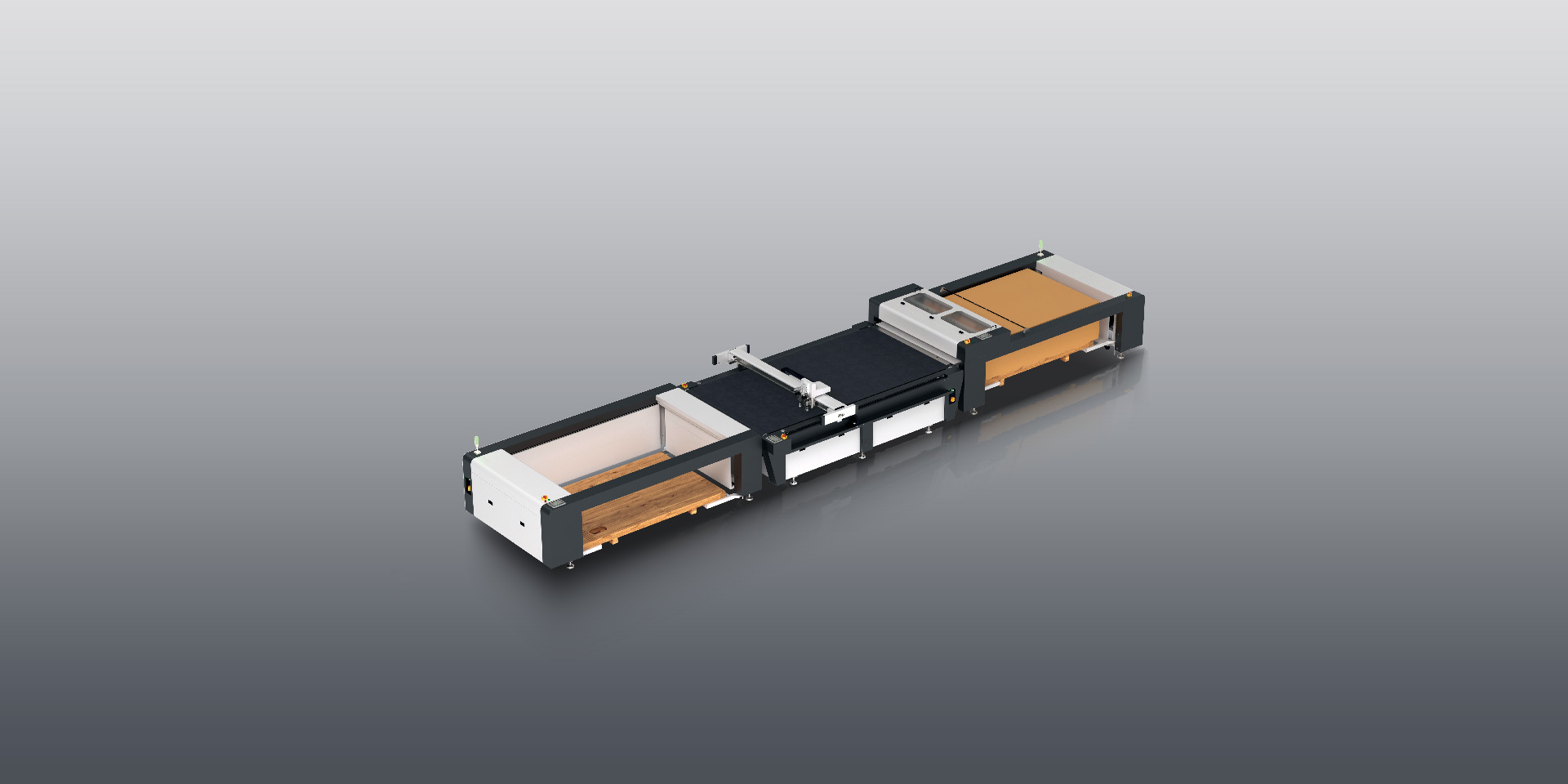

Fully Automated Loading, Cutting & Unloading System
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions
Achieve production process more efficient and optimum cut quality, JWEI CB03II-2516-RM fully automation digital cutting tables increases its market share and impresses manufacturers by the new technical capabilities which has massively helped with their production output, CB03II-2516-RM digital cutting tables specialize in handling creative packaging products ,advertising products and Sound-absorbing products made from polyester fiber board,corrugated cardboard, coated paper, PVC, special paper, grey board, honeycomb board, ABS board, PVC sheet, EPE, EVA foam and other materials.
Loading and unloading by stacking
Users consistently report greater efficiency by forklift stacking in the process of loading and unloading.
Back scan and cut
Based on the industry leading technology of back scanning and cutting, CB03II-2516-RM fully automation digital cutting tables offers high quality assurance via avoiding over indentation and cutting.
Workflow automation
The advanced application of rolling platform and auto loading/unloading system makes the production fully automated and brings production efficiency improvement significantly.

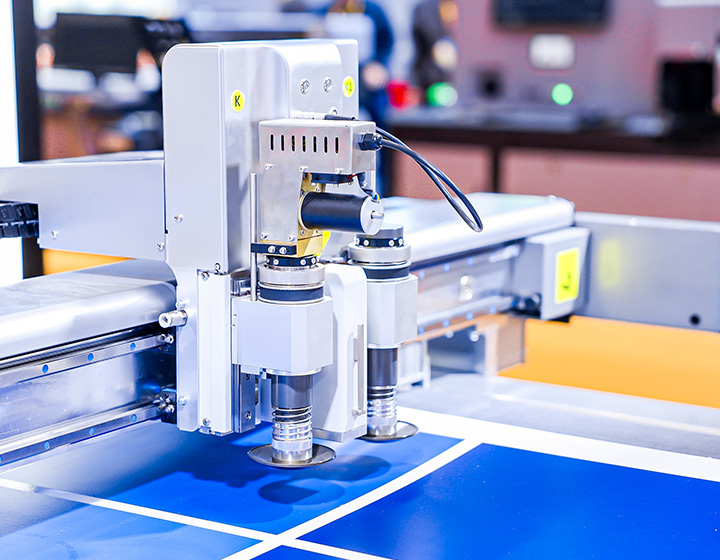

Multi-functional machine head
CB03II-2516-RM fully automation digital cutting tables comes with a digital integrated machine head which is specially developed to meet varieties of crafts.
QR visual positioning
QR technology offers a new path for auto positioning by using a QR-CCD visual positioning system that responsiveness at the speed of 0.1S and enables fast, precise and multi-task classification cutting.
High-performance integrated circuit board
One of the key factors ensuring machine stability is the high-performance integrated circuit board, digitally connected to any computer and assures smoother workflow.
Application Scenarios
CB03II-2516-RM digital cutting tables with loading unloading,for small batch production line intelligent integrated cutting solution, compatible with a wide range of materials, can cut a variety of cardboard,such as Corrugated paper, grey board, honeycomb board, EPE, EVA foam, PVC board, KT board, etc.

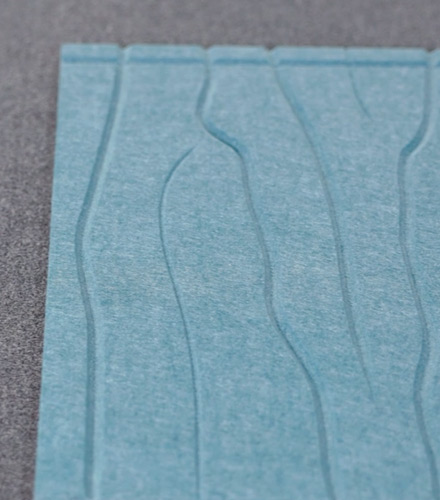

10mm PET board

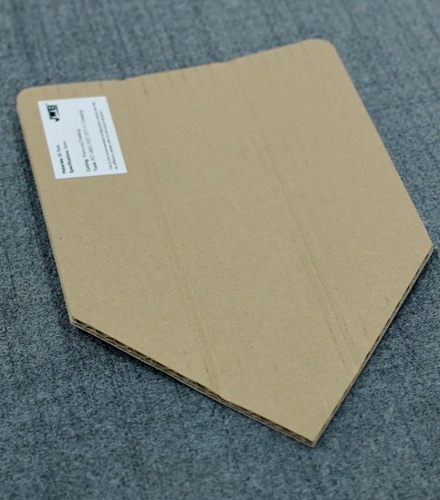

Corrugated board

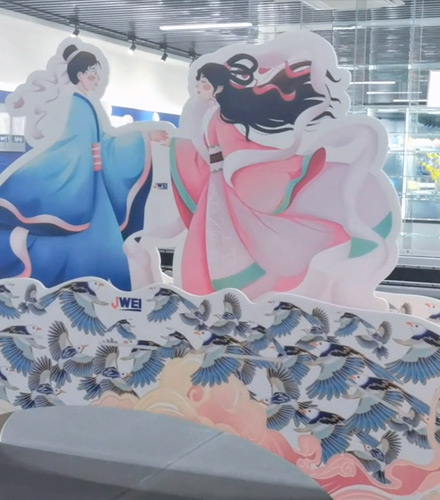

KT board with printing

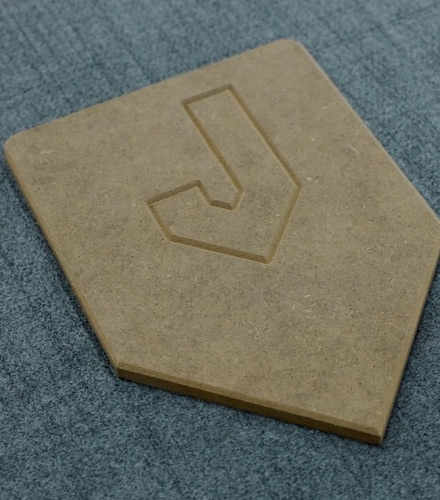

MDF foam

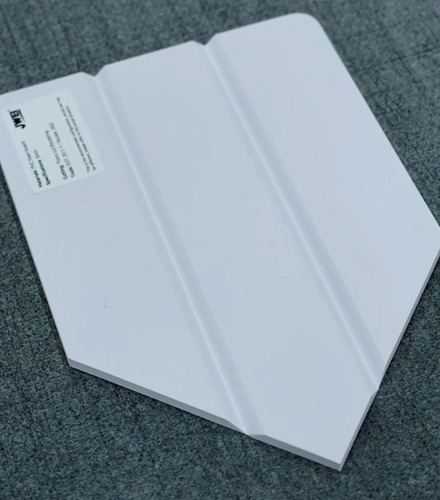

PVC foam board
Optional Tools
Electric oscillating Tool
Part description
Universal Cutting Tool
Part description
Creasing Wheel Tool
Part description
V-CUT Tool For Grey Board
Part description
V-CUT Tool For Photo Frame
Part description
V-CUT Tool For Multi-angle
Part description
V-CUT Tool For Photo Frame
Part description
Electric Foam Cutting Tool
Part description
Explosion-proof Pressure Wheel
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | SC1625 Loading-cutting-unloading |
| Multi-functional Tool Head | Double tool fixing holes, quick insert tool fixing, easy to replace cutting tools, plug and play, set cutting, creasing, drawing, router and other functions in one |
| Tools | Electric oscillating tool, drag knife tool, plotting tools |
| Max. Cutting Speed | 1800mm/s (Varies with different cutting materials) |
| Max. Cutting Thickness | 50mm (Customizable according to different cutting materials) |
| Max loading height (include Pallet) | 750mm |
| Max single sheet thickness | 22mm |
| Max single sheet feed weight | 5kg |
| Max loading-unloading size（W*L） | 1600mm×2500mm |
| Min loading-unloading size（W*L） | 600mm×900mm |
| Material | ABS board, PVC board, space board, aluminium-plastic board, lamp sheet, back glue, PVC foam board, KT board, acrylic, magnetic sticker, self-adhesive, etc |
| Material Fixation Mode | Vacuum suction |
| Transmission port | Ethernet port |
| Drive System | High-end digital servomotor, imported linear guide, synchronous belt, lead screw |
| Rated Power | 17kW |
| Rated Voltage | 380V±10% |
| Effective Cutting Size (WxL) | 1600mm×2500mm |
| Machine Size (WxLxH) | 2620mm×10660mm×1325mm （Loading area: 2060mm×3630mm×1250mm, Cutting area: 2504mm×3571mm×1325mm, Unloading: 2060mm×3630mm×1250mm） |
Note: * will be determined based on the specific materials in the actual application scenario.

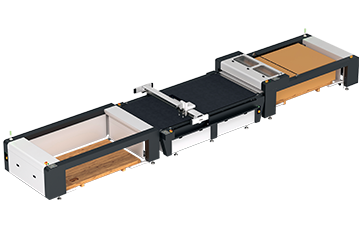

JWEI SC1625 Automated Loading-Cutting-Unloading System for Volume Production
JWEI SC1625 Loading-Cutting-Unloading system, an advanced, fully automated cutting system engineered for high-volume flexible manufacturing. Combining a precision 1.6m* 2.5m conveyorized flatbed with heavy-duty material loading and unloading modules, this synchronized cutting system drives a seamless, hands-free production cycle directly from CAD data. Ideal for automotive interiors, footwear, and technical upholstery, it utilizes high-speed mechanical knives and intelligent nesting to cut rolls or sheets continuously, delivering immaculate, burn-free edge quality while eliminating manual handling bottlenecks.
Frequently Asked Questions (FAQ)
Q: How does the JWEI SC1625 automated loading-cutting-unloading workflow optimize factory labor?
A: This comprehensive cutting system transforms the traditional labor-intensive cutting room into a streamlined, one-man or unmanned operation. By fully integrating automated roll/sheet loading, high-speed CNC knife cutting, and synchronized conveyor belt unloading, the entire line moves material forward automatically as soon as a batch is completed. This keeps the machine running continuously, drastically reducing manual labor overhead and operator idle time.
Q: What makes this cutting system more efficient than standalone digital cutting tables?
A: Unlike standalone tables where production stops during material loading and part collection, this integrated cutting system utilizes a heavy-duty conveyorized bed. As the precision blade finishes cutting a section, the conveyor advances the finished components to the extension unloading table for easy sorting while simultaneously pulling fresh material onto the cutting zone. This non-stop cycle maximizes machine utilization and delivers significantly higher hourly throughput.
Q: What specific materials and industrial applications are ideal for this automated cutting system?
A: This robust mechanical cutting system is optimized for roll-fed and large sheet materials, using physical cold-cutting blades that avoid the toxic smoke and burnt edges caused by lasers. It is highly efficient for mass-producing automotive seat covers, carpets, synthetic PU/PVC leather footwear components, multi-layer apparel textiles, foam packaging inserts, and rubber gaskets, ensuring pristine edges and absolute geometric consistency on every batch.
JWEI SG1625 High-Precision Flatbed Digital Cutting System for Sign & Graphics
Revolutionize your short-run packaging production and sample-making workflow with the JWEI SG1625 Flatbed Digital Cutting System. Engineered specifically for the fast-paced packaging, printing, and custom box manufacturing industries, the SG1625 eliminates the need for expensive traditional cutting dies. Powered by a high-speed EtherCAT motion control system and an intelligent multi-tool configuration, it delivers unmatched precision, flexibility, and 24/7 industrial-grade reliability.
Frequently Asked Questions (FAQ)
Q: What makes the JWEI SG1625 a preferred flatbed digital cutting system for print shops?
A: The JWEI SG1625flatbed digital cutting system provides an ideal 1600mm*2500mm working area, perfectly matching standard industrial material sheet sizes. By utilizing precision multi-tool CNC heads instead of expensive physical dies, it allows print shops and custom packaging manufacturers to switch between diverse short-run jobs instantly with zero setup delays.
Q: What tooling options and materials are compatible with the SG1625 flatbed digital cutting system?
A: The JWEI SG1625flatbed digital cutting system provides an ideal 1600mm*2500mm working area, perfectly matching standard industrial material sheet sizes. By utilizing precision multi-tool CNC heads instead of expensive physical dies, it allows print shops and custom packaging manufacturers to switch between diverse short-run jobs instantly with zero setup delays.
Q: How does the SG1625 ensure precise registration for printed graphics?
A: The JWEI SG1625flatbed digital cutting system provides an ideal 1600mm*2500mm working area, perfectly matching standard industrial material sheet sizes. By utilizing precision multi-tool CNC heads instead of expensive physical dies, it allows print shops and custom packaging manufacturers to switch between diverse short-run jobs instantly with zero setup delays.
Why International Distributors & Box Plants Choose the JWEI SG1625:
Triple-Head System & One-Pass Forming: Equipped with a smart plug-in, triple-head architecture that allows simultaneous mounting of oscillating knives, creasing wheels, and multi-angle V-cut tools. Achieve high-precision cutting, creasing, and grooving in a single automated process—perfect for complex rigid boxes and corrugated cartons.
Next-Gen ATC (Automatic Tool Changer): Streamline operations with a fully automated tool-changing module. The machine effortlessly switches between different blades and tools based on digital files, maximizing uptime, eliminating operator errors, and bypassing manual depth adjustments.
Ultra-Fast EtherCAT Motion Control: Driven by JWEI’s self-developed embedded M7 EtherCAT bus controller, the system boasts a blazing-fast motion cycle of just 0.0001 seconds. Reach cutting speeds of up to 2,000 mm/s with a repeat precision of less than 0.05 mm, allowing for flawless circular cuts down to 1 mm in diameter.
Intelligent CCD Camera & QR-Code Workflow: Perfect for printed packaging. The integrated high-resolution camera positioning system automatically aligns cutting paths with print registration marks. Paired with a QR-code job classification module, the machine automatically retrieves and processes different small-batch jobs seamlessly.
Heavy-Duty Aerospace Construction: The tabletop is crafted from premium aerospace-grade aluminum honeycomb panels, paired with a robust felt surface. It offers extreme flatness, resistance to deformation under heavy loads, and an advanced 6-zone independent vacuum matrix that enhances suction power by more than three times.
