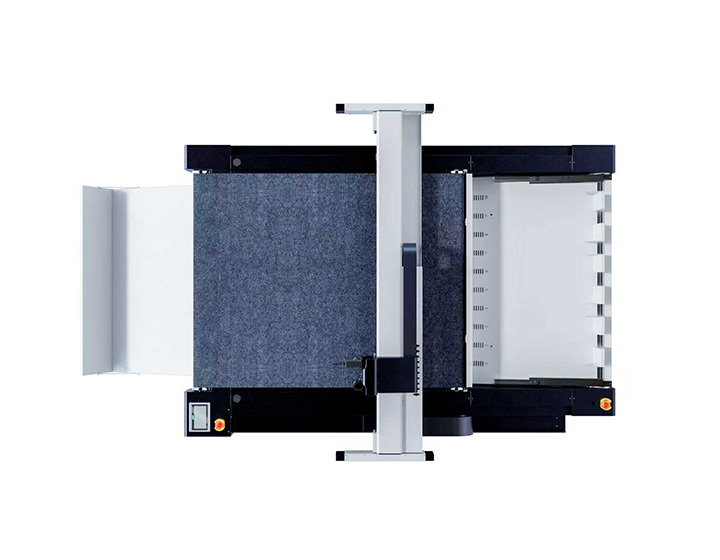

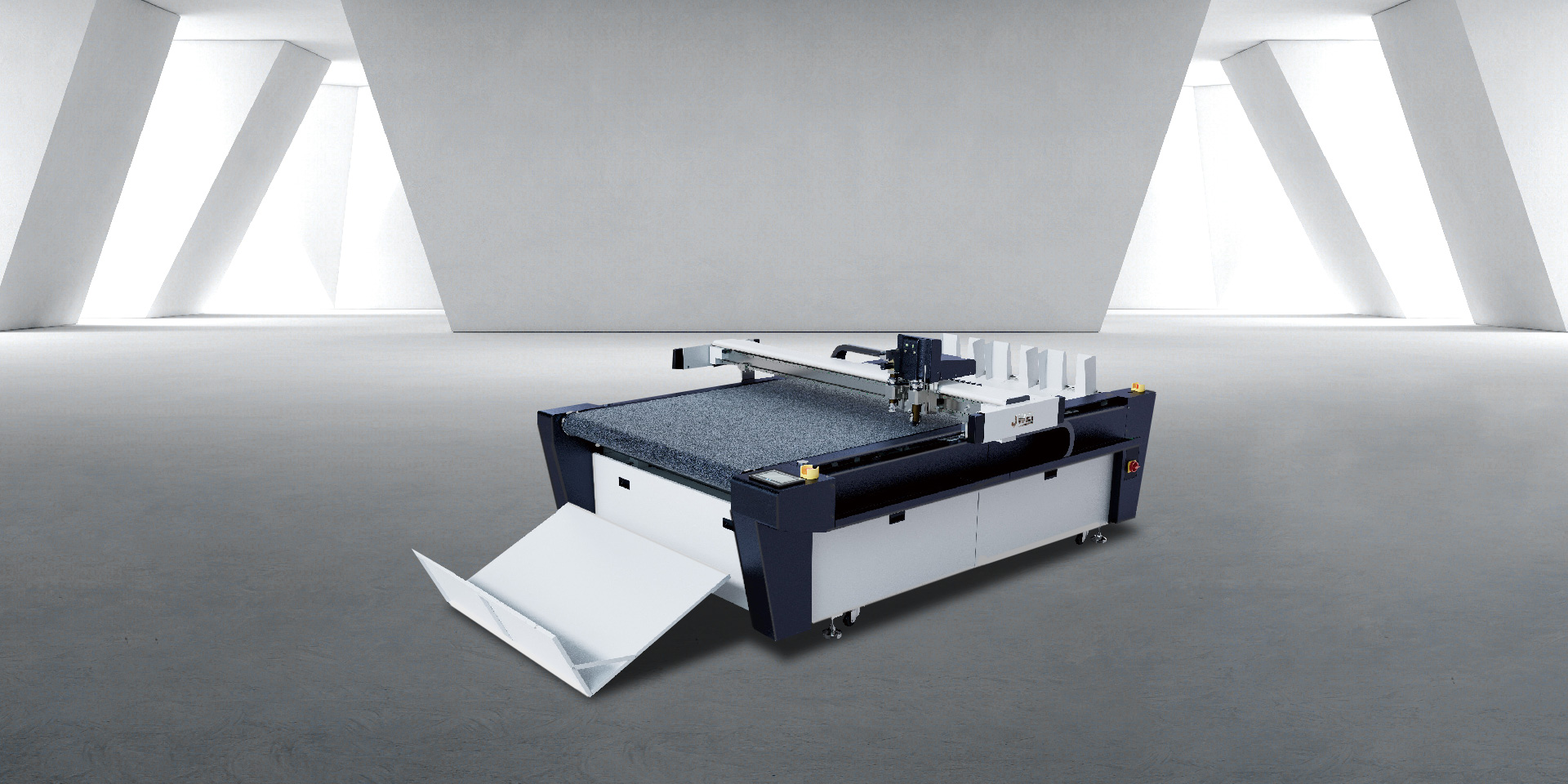

CB03Ⅲ-1113-RM

Watch Video

One machine, multiple functions

CB03Ⅲ-1113-RM Sampling & Small batch intelligent cutting solution, compatible with a wide range of materials.

Pluggable & multi-head

Various of tools and easily tool changing.

Self developed control system

Using JWEI self developed control system, cutting speed is max 1500mm/s.

Auto feeding&cutting&collecting

Sampling, small batch production, more applications.

Application Scenarios

30mm Foam composite fabric

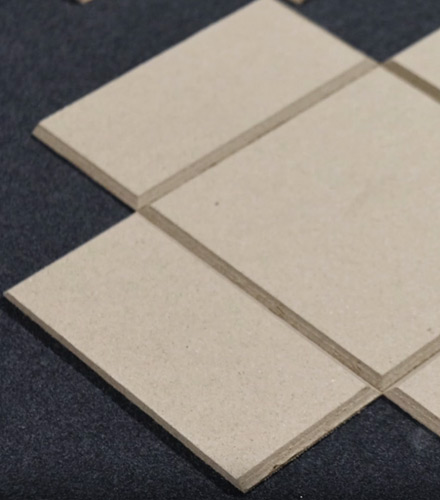

45° slotting of the gray board

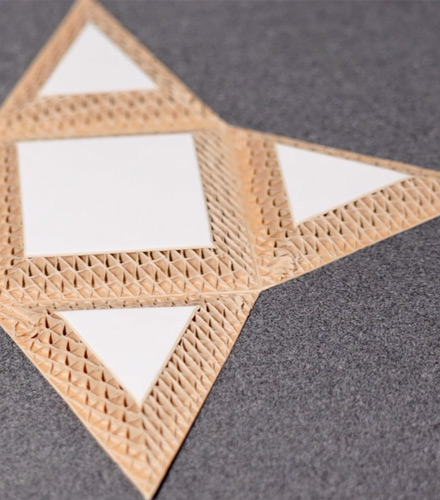

45° slotting of the honeycome board

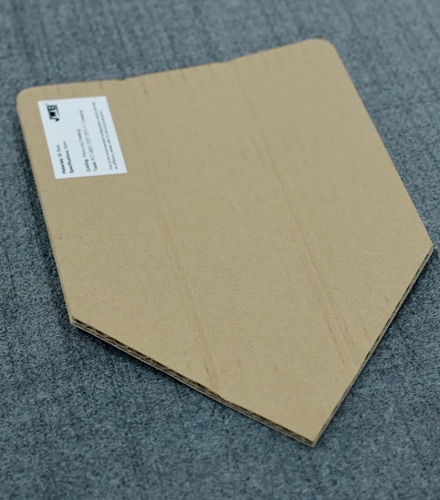

Corrugated board

Optional Tools

Designed for cardboard grooving, with an adaptive surface and anti-penetration design features, allowing for high-precision grooving of cardboard.

V-CUT Tool For Photo Frame

Part description

Capable of grooving various materials such as honeycomb board and KT board at angles from 0° to 120.

V-CUT Tool For Multi-angle

Part description

Equipped with a high-frequency Maxon motor, reaching speeds up to 18,000 RPM, and featuring specially made tungsten steel hardened blades, it easily handles cutting various harder and thicker materials (such as corrugated cardboard, honeycomb cardboard, KT board, and foam board) with fast speed and smooth, neat edges.

Electric Oscillating Tool

Part description

Capable of handling materials with a thickness of up to 5mm. Compared to the oscillating tool, it cuts at a faster speed.

Universal Cutting Tool

Part description

Specifically designed for greyboard grooving, with adjustable angles from 0° to 135°.

V-CUT Tool For Grey Board

Part description

Electric Foam Cutting Tool with a 2mm vibration stroke, specifically for cutting foam materials up to 50mm thick such as EPP, pearl cotton, EVA foam, and sponge.

V-CUT Tool For Photo Frame

Part description

Technical Parameters

JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.

Model	CB03Ⅲ-1113-RM
Multi-functional Tool Head	Easy to change different tool heads. Engraving and router. Oscillating thorough cutting/Kiss cutting/Creasing/Plotting/Laser positioning and precision camera registration.
Tools	Various kinds of cutting blades, different size of creasing wheels and plotting pen etc.
Safety Device	Infrared sensor,responsive,safe and reliable.
Max. Cutting Speed	1500mm/s *
Max. Cutting Thickness	30mm *
Max. Loading Height	180mm
Max. Feeding Thickness	30mm
Repeat Precision	±0.05mm
Cutting Materials	Cardboard, grey board, KT board, Flexo, honeycomb board, car stickers, lamp pieces, PP back glue, printing cloth, flag banner, all kinds of corrugated paperboard, EPE foam, EVA, acrylic board, thick foam,etc.
Material Fixation Mode	Smart optional intelligent multi-zone vacuum suction
Servo Resolution	±0.01mm
Transmission Mode	Ethernet port
Drive System	High-end digital servomotor, imported linear guide, synchronous belt, lead screw
Rated Power	10.5kW
Rated Voltage	380V±10%
Machine Weight	900kG
Effective Cutting Size	1100mm×1300mm
Machine Size	3857mm×2400mm×1345mm

Note: * will be determined based on the specific materials in the actual application scenario
