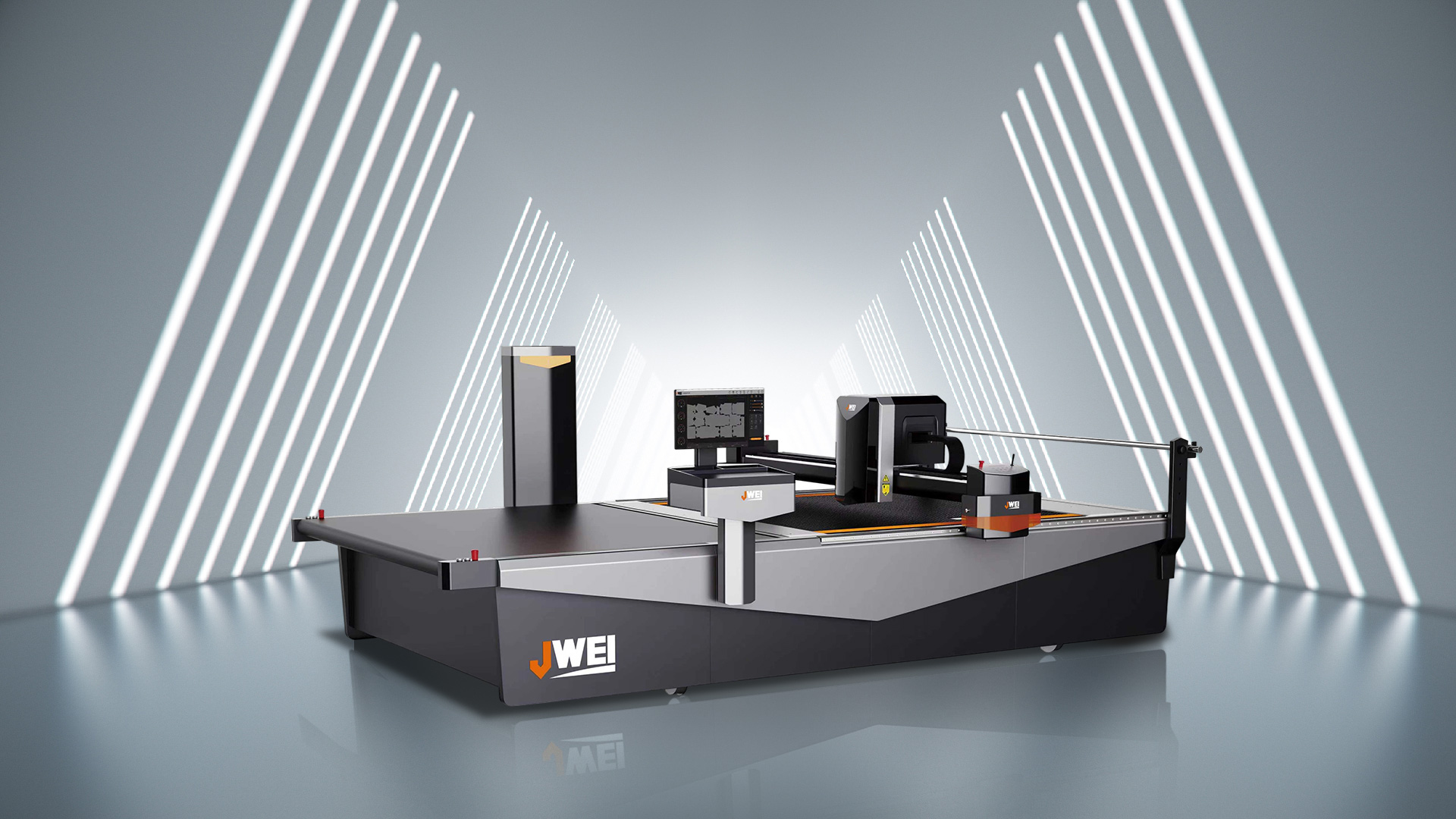

MI60
High-Volume Automated CNC Fabric Cutting speed 100m/min
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions
JWEI has launched the groundbreaking MI Series Intelligent Multi-layer Cutting System, redefines cutting efficiency with its True On-the-Fly Cutting technology. This innovation achieves a high-speed cutting performance of up to 100 m/min. By integrating AI vision positioning and zero-gap cutting, further improve material utilization by an additional 5%. Equipped with a top tier, full time dynamic frequency-converting vacuum system—standard as top configuration— the MI series ensures strict interlayer tolerance control within ±1 mm across materials from knits to composite PVC. Combined with intelligent modules like EasyViewing and EasySetting, the system significantly reduces operational complexity. The MI Series is widely applicable across industries including apparel, automotive interiors, and medical protective materials, setting a new benchmark for high-efficiency and precision cutting.
100m/min
Efficient production capacity, with a maximum running speed of 100m/min.
≤1mm
Cut pieces and notches remain consistent on both upper and lower parts, with a cutting error of ≤1 mm.
5%
Zero buffer saves up to 5% fabric
AI+MES
AI-Driven MES for smarter decision-making.
200mbar
The vacuum retention is more than twice the industry standard.
0.01mm
Equipped with German Beckhoff AX5206 servo system, delivering control accuracy up to 0.01 mm.
40%
Proprietary algorithm enables “cutting while moving,” boosting average cutting efficiency by 40%
Application Scenarios
JWEI Multi-layer Cutting System is widely used in industries such as apparel, bags, and leather goods. They are capable of cutting a variety of flexible materials including knits, denim, woven fabrics, automotive composite PVC, synthetic leather, and polyester.

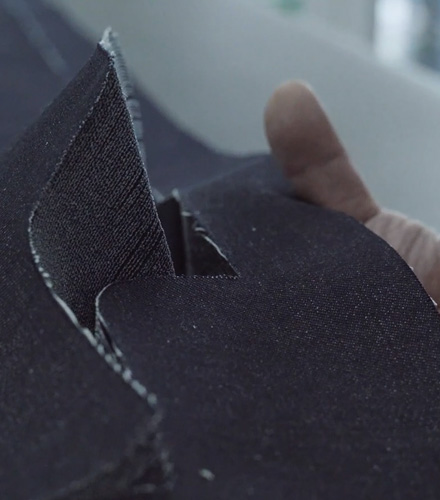

Denim fabric

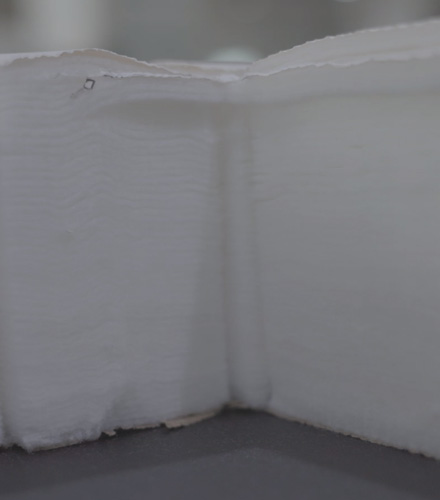

Cotton fabric

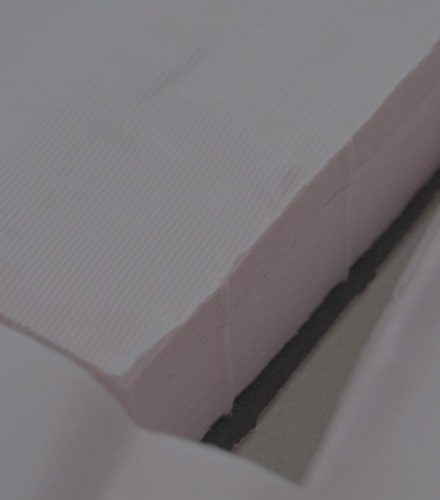

Knitted fabrics

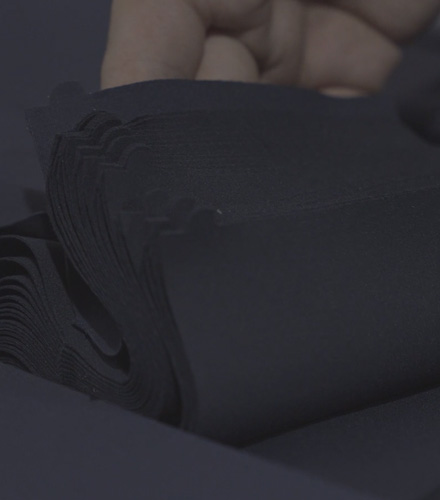

Stretch-fabric
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | MI60 |
| Cutting height | 60mm |
| Maximum running speed | 100m/min |
| Maximum acceleration | 9.8m/s2 |
| Maximum blade vibration frequency | 6000rpm |
| Effective cutting window length | 1.8m (equipped with cutting-while-moving function for continuous cutting) |
| Effective cutting width | 2.0m |
| Vacuum adsorption option | Dynamic control,45kW |
| Power supply | 380V three-phase five-wire,50/60Hz |
| Workbench height | 85cm |
| Noise | <75dB |
| Vacuum energy consumption | Average energy consumption <15kW |
| Cutting materials | Knitted fabrics,denim,woven fabrics,automotive composite PVC,artificial leather,polyester and other flexible materials |
| Overall weight | About 4 tons |
| Machine Size (WxLxH) | 2980mm×4570mmx2200mm |
Note: The above are the design parameters of our company; specific data will vary depending on materials and applications.
MI60 High-ply cutting Digital Machine for High-Volume Production

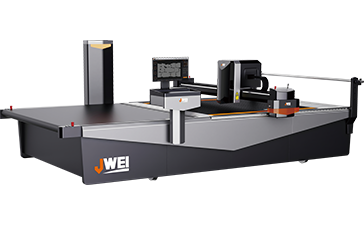

JWEI MI60, a heavy-duty digital die cutting machine engineered for high-volume, high-ply cutting workflows. By replacing rigid physical dies with advanced, computer-controlled knife technology, this high-performance platform allows manufacturers to transition seamlessly from digital CAD files to finished products with zero setup time. The MI60 digital die cutting machine features an ultra-powerful intelligent vacuum zoning system that tightly compresses towering stacks of textiles, composites, or flexible materials, ensuring absolute stability for advanced high-ply cutting operations. Driven by precision motion controls and industrial-grade blades, it delivers flawless vertical accuracy across dozens of compressed layers simultaneously, making large-scale production runs highly efficient and profitable.
Frequently Asked Questions (FAQ)
Q1: What exactly is a High-ply cutting system, and how does the JWEI MI60 maximize workshop throughput?
A: Traditional digital cutters handle materials sheet by sheet or in very low stacks, which bottlenecks mass production. A High-ply cutting system is engineered to cut compressed, towering stacks of fabrics all at once. The JWEI MI60 automates this entire workflow—from receiving nested files to executing continuous, high-volume cuts through dense material layers—dramatically multiplying your daily output compared to manual cutting tables.
Q2: How does the MI60 maintain perfect precision from the top layer to the bottom layer during High-ply cutting?
A: The biggest challenge in bulk fabric processing is material shifting or drifting. The MI60 solves this through our Intelligent Multi-Zone Vacuum Compression Technology. By powerfully evacuating air from the fabric stack, it locks the layers into a rock-solid, ultra-flat state. Combined with our high-frequency oscillating knife, the system ensures that the cut profile on the absolute bottom layer matches the top layer with micro-level precision.
Q3: Can the MI60 prevent fabric melting or fusing when executing heavy-duty High-ply cutting?
A: Yes, absolutely. Fusing is a common issue when cutting multi-layer synthetics due to friction heat. The MI60 features a built-in Intelligent Knife Cooling & Path Compensation System. It continuously monitors tool temperature and automatically adjusts the cutting parameters in real time. This keeps the blade cool and prevents synthetic textiles or synthetic leathers from melting together, ensuring perfectly separated, clean cutouts.
Q4: What industries benefit the most from the JWEI MI60 High-ply cutting setup?
A: The MI60 is the ultimate workhorse for any business focused on mass production and scale. It is highly optimized for High-ply cutting in apparel and garment manufacturing (sportswear, uniforms, denim), automotive interior production (seat covers, lining fabrics), home textiles (curtains, bedding panels), and high-volume industrial composite processing.
JWEI SG1625 High-Precision Flatbed Digital Cutting System for Sign & Graphics
Revolutionize your short-run packaging production and sample-making workflow with the JWEI SG1625 Flatbed Digital Cutting System. Engineered specifically for the fast-paced packaging, printing, and custom box manufacturing industries, the SG1625 eliminates the need for expensive traditional cutting dies. Powered by a high-speed EtherCAT motion control system and an intelligent multi-tool configuration, it delivers unmatched precision, flexibility, and 24/7 industrial-grade reliability.
Frequently Asked Questions (FAQ)
Q: What makes the JWEI SG1625 a preferred flatbed digital cutting system for print shops?
A: The JWEI SG1625flatbed digital cutting system provides an ideal 1600mm*2500mm working area, perfectly matching standard industrial material sheet sizes. By utilizing precision multi-tool CNC heads instead of expensive physical dies, it allows print shops and custom packaging manufacturers to switch between diverse short-run jobs instantly with zero setup delays.
Q: What tooling options and materials are compatible with the SG1625 flatbed digital cutting system?
A: The JWEI SG1625flatbed digital cutting system provides an ideal 1600mm*2500mm working area, perfectly matching standard industrial material sheet sizes. By utilizing precision multi-tool CNC heads instead of expensive physical dies, it allows print shops and custom packaging manufacturers to switch between diverse short-run jobs instantly with zero setup delays.
Q: How does the SG1625 ensure precise registration for printed graphics?
A: The JWEI SG1625flatbed digital cutting system provides an ideal 1600mm*2500mm working area, perfectly matching standard industrial material sheet sizes. By utilizing precision multi-tool CNC heads instead of expensive physical dies, it allows print shops and custom packaging manufacturers to switch between diverse short-run jobs instantly with zero setup delays.
Why International Distributors & Box Plants Choose the JWEI SG1625:
Triple-Head System & One-Pass Forming: Equipped with a smart plug-in, triple-head architecture that allows simultaneous mounting of oscillating knives, creasing wheels, and multi-angle V-cut tools. Achieve high-precision cutting, creasing, and grooving in a single automated process—perfect for complex rigid boxes and corrugated cartons.
Next-Gen ATC (Automatic Tool Changer): Streamline operations with a fully automated tool-changing module. The machine effortlessly switches between different blades and tools based on digital files, maximizing uptime, eliminating operator errors, and bypassing manual depth adjustments.
Ultra-Fast EtherCAT Motion Control: Driven by JWEI’s self-developed embedded M7 EtherCAT bus controller, the system boasts a blazing-fast motion cycle of just 0.0001 seconds. Reach cutting speeds of up to 2,000 mm/s with a repeat precision of less than 0.05 mm, allowing for flawless circular cuts down to 1 mm in diameter.
Intelligent CCD Camera & QR-Code Workflow: Perfect for printed packaging. The integrated high-resolution camera positioning system automatically aligns cutting paths with print registration marks. Paired with a QR-code job classification module, the machine automatically retrieves and processes different small-batch jobs seamlessly.
Heavy-Duty Aerospace Construction: The tabletop is crafted from premium aerospace-grade aluminum honeycomb panels, paired with a robust felt surface. It offers extreme flatness, resistance to deformation under heavy loads, and an advanced 6-zone independent vacuum matrix that enhances suction power by more than three times.
