IL330

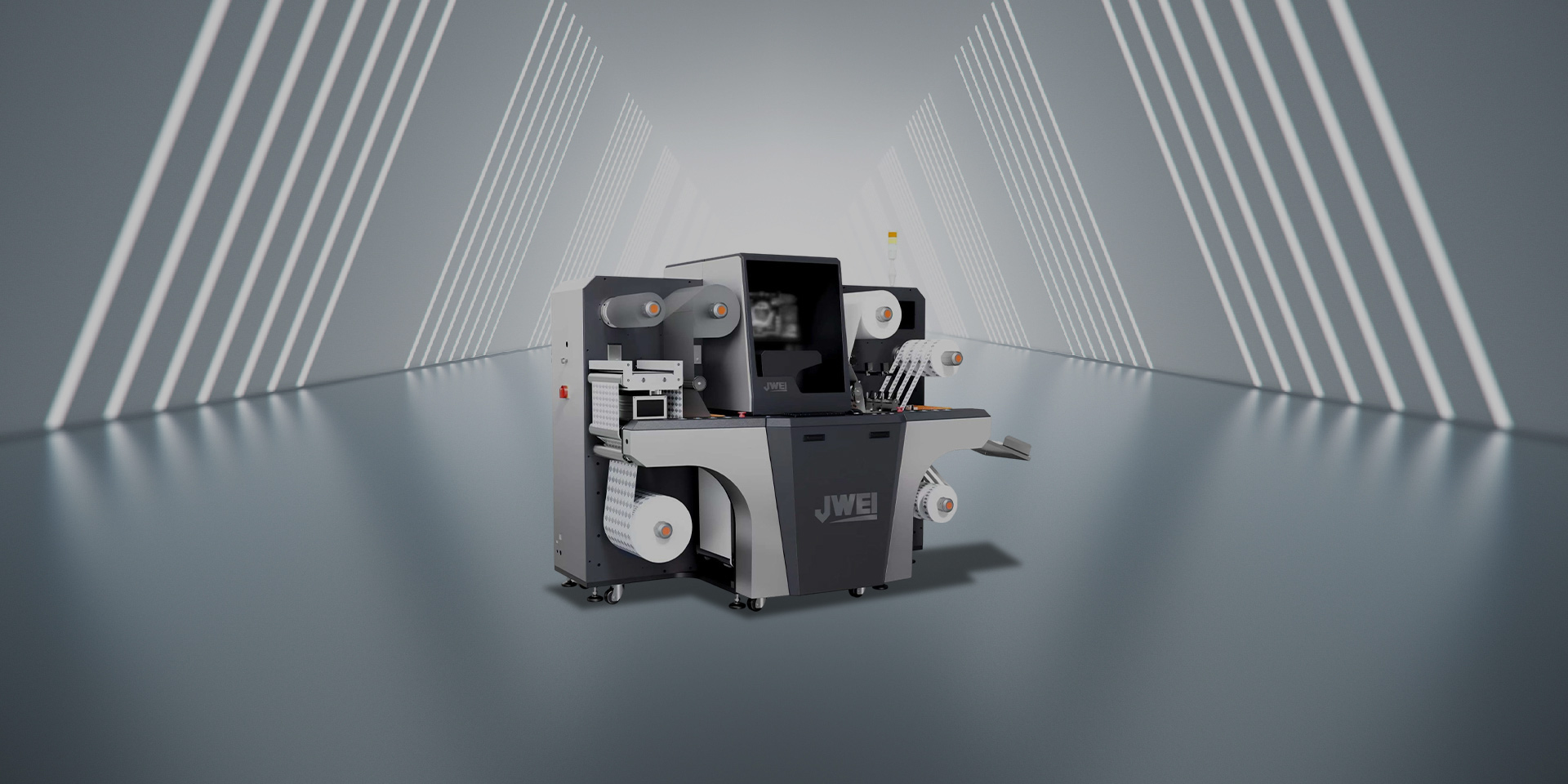

Digital Label Die Cutting Machine | Roll-to-Sheet Finisher
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions
JWEI IL330 digital label finisher(digital label cutter) is a machine that allows you cut label materials down to whatever label size you require. With lots of finishers you usually get to add a laminate before the material is cut for added durability to the label. Once the labels are laminated and cut the waste material is removed and then the labels can be slit into individual rolls if needed.JWEI IL330 digital label finisher is highly effective for die cutting tasks.
Ultra-High Speed and Excellent Performance
•One-piece formed casting frame provides exceptional stability, enabling high-speed running at
20m/min.
•Six modular, independent, electrically controlled cutting heads automatically optimize their allocation based on the cutting file for maximum efficiency.
One-Step Intelligent Cutting
•Each cutting tool can be adjusted independently, offering much greater flexibility than traditional diecutting equipment.
•Fully automatic intelligent tool pressure detection and adjustment — no need for manual calibration.
•Complex processes including lamination, cutting, waste removal, slitting, and winding are completed automatically in a single step.
Intelligent Control – Simple and User-Friendly
•CCD scanning system allows automatic plate changing and rapid positioning, speeding up
workflow.
•Film coating position can be adjusted on-thefly by simply turning a knob — no production
interruptions.
•Automatic deviation correction and tension control ensure materials move precisely without
misalignment.
All-Round Expansion and Easy Handling
•Laminated backing paper can be expanded and customized to suit a variety of processes.
Application Scenarios

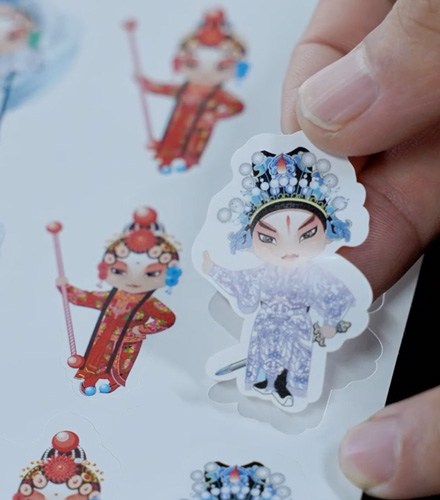

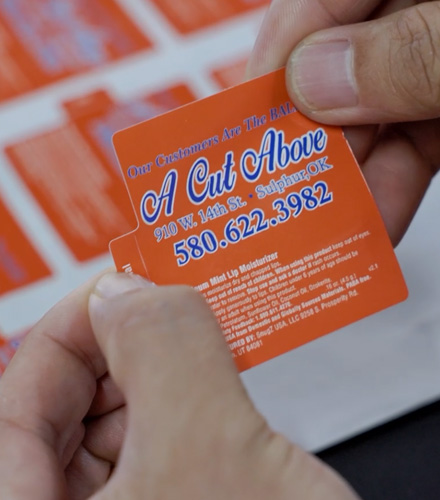

Expertly handles precision cutting for medical, electronics, and packaging applications—processing diverse materials including adhesive labels (paper/PET), industrial tapes, protective films, automotive decals, wine labels, custom-shaped/RFID labels, and electronic product substrates—ensuring flawless results across all specialized requirements.

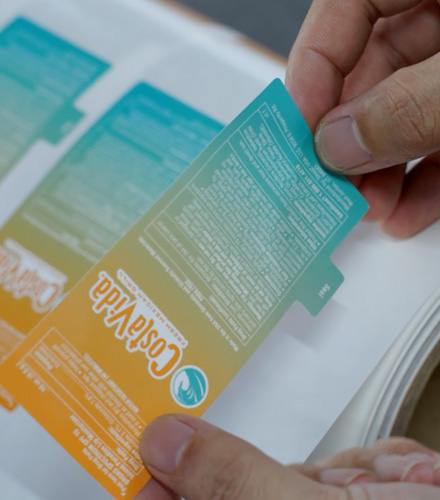

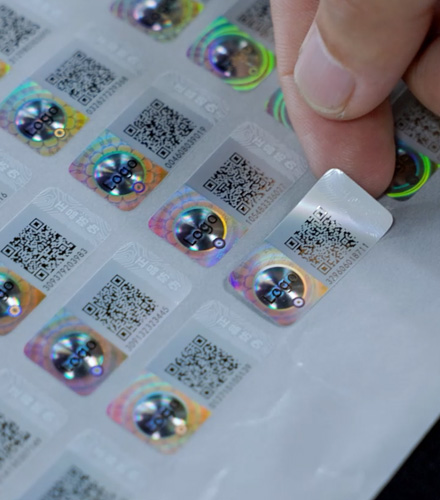

Anti-counterfeit label
PET label
PP label
Removable adhesive label
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | IL330-9 |
| Maximum Roll Diameter | 500mm |
| Maximum Material Width | 350mm |
| Maximum Cutting Width | 330mm |
| Cutting Precision | ±0.1mm |
| Repeatability Precision | ±0.02mm |
| Maximum Processing Speed | 20m/min |
| Maximum Length of Single Pattern | 1200mm |
| Minimum Length of Single Pattern | 10mm |
| Automatic Deviation Correction Precision | 0.2mm |
| Recognition System | CCD |
| Recognition Mark | QR Code, Color Mark, Bar Cod |
| Supported Format | HPGL、DXF、AI、PDF、CF2 |
| Achievable Functions | Full-automatic Plate-changing Die Cutting, Full-automatic Sheet Cutting, Roll-to-Roll (R2R), Roll-to-Sheet (R2S), Deviation Correction,Laminating, Waste Stripping, Label Missing Alarm Detection, Slitting |
| Air Pressure Requirement | 0.6Mpa |
| Voltage | AC220V 50/60Hz |
| Rated Power | 7.1kW |
| Machine Weight | 1500kG |
| Machine Size | 2000mm×1150mm×1600mm |
Note: * will be determined based on the specific materials in the actual application scenario.

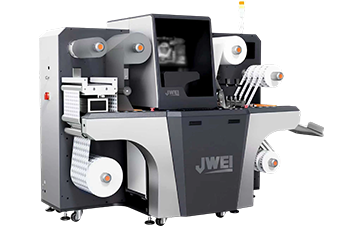

JWEI IL330 Digital Label Die Cut Machine for Roll-to-Roll Production
JWEI IL330, a high-speed digital label die cut machine engineered specifically for the wine, cosmetic, and industrial label markets. Eliminating the massive upfront costs and lead times of traditional rotary magnetic cylinders, this advanced roll-to-roll platform delivers precision die-less finishing directly from vector files. The IL330 digital label die cut machine seamlessly combines heavy-duty mechanical cutting heads with high-speed web tension controls, allowing label converters to execute intricate contour cuts, laminating, and matrix waste removal in a single continuous pass. It bridges the gap between digital presses and final delivery, making micro-orders highly profitable.
Frequently Asked Questions (FAQ)
Q: Why should a label converter choose a digital label die cut machine over traditional rotary equipment?
A: The decision comes down to eliminating tooling bottlenecks and boosting margins on short-run jobs. Traditional rotary cutters require you to order expensive, custom flexible magnetic dies for every new label shape, which can take days to arrive and creates a costly minimum order barrier. With the JWEI digital label die cut machine, your physical setup cost is zero. You simply upload a digital PDF layout, load your printed roll, and the tool heads execute the exact cut lines instantly. This allows you to finish a run of 200 or 2,000 custom labels with unmatched turnaround speeds.
Q: What is the maximum web width and cutting speed supported by the JWEI IL330?
A: Built to align perfectly with standard mid-web digital label presses, this digital label die cut machine accommodates a maximum roll width of 330mm. It utilizes a high-efficiency flat cutting matrix combined with an automated roll-stepping feeding mechanism. This ensures that while the knife heads are cutting with millimeter-level precision inside the matrix window, the web tension management system perfectly advances the roll, optimizing overall throughput and preventing any material stretching during continuous production.
Q: Can the IL330 perform lamination and waste weeding alongside the digital label die cut process?
A: Yes, the IL330 is designed as an all-in-one finishing line rather than just a standalone trimmer. This versatile digital label die cut machine features integrated unwinding, inline cold lamination for surface protection, precision contour cutting, automatic matrix waste stripping (weeding), and final slitting into multiple narrow rolls. By handling the entire post-press workflow on a single compact footprint, it minimizes material handling, reduces labor requirements, and ensures your finished label rolls are instantly ready for automatic labeling applicators.
JWEI SG1625 High-Precision Flatbed Digital Cutting System for Sign & Graphics
Revolutionize your short-run packaging production and sample-making workflow with the JWEI SG1625 Flatbed Digital Cutting System. Engineered specifically for the fast-paced packaging, printing, and custom box manufacturing industries, the SG1625 eliminates the need for expensive traditional cutting dies. Powered by a high-speed EtherCAT motion control system and an intelligent multi-tool configuration, it delivers unmatched precision, flexibility, and 24/7 industrial-grade reliability.
Frequently Asked Questions (FAQ)
Q: What makes the JWEI SG1625 a preferred flatbed digital cutting system for print shops?
A: The JWEI SG1625flatbed digital cutting system provides an ideal 1600mm*2500mm working area, perfectly matching standard industrial material sheet sizes. By utilizing precision multi-tool CNC heads instead of expensive physical dies, it allows print shops and custom packaging manufacturers to switch between diverse short-run jobs instantly with zero setup delays.
Q: What tooling options and materials are compatible with the SG1625 flatbed digital cutting system?
A: The JWEI SG1625flatbed digital cutting system provides an ideal 1600mm*2500mm working area, perfectly matching standard industrial material sheet sizes. By utilizing precision multi-tool CNC heads instead of expensive physical dies, it allows print shops and custom packaging manufacturers to switch between diverse short-run jobs instantly with zero setup delays.
Q: How does the SG1625 ensure precise registration for printed graphics?
A: The JWEI SG1625flatbed digital cutting system provides an ideal 1600mm*2500mm working area, perfectly matching standard industrial material sheet sizes. By utilizing precision multi-tool CNC heads instead of expensive physical dies, it allows print shops and custom packaging manufacturers to switch between diverse short-run jobs instantly with zero setup delays.
Why International Distributors & Box Plants Choose the JWEI SG1625:
Triple-Head System & One-Pass Forming: Equipped with a smart plug-in, triple-head architecture that allows simultaneous mounting of oscillating knives, creasing wheels, and multi-angle V-cut tools. Achieve high-precision cutting, creasing, and grooving in a single automated process—perfect for complex rigid boxes and corrugated cartons.
Next-Gen ATC (Automatic Tool Changer): Streamline operations with a fully automated tool-changing module. The machine effortlessly switches between different blades and tools based on digital files, maximizing uptime, eliminating operator errors, and bypassing manual depth adjustments.
Ultra-Fast EtherCAT Motion Control: Driven by JWEI’s self-developed embedded M7 EtherCAT bus controller, the system boasts a blazing-fast motion cycle of just 0.0001 seconds. Reach cutting speeds of up to 2,000 mm/s with a repeat precision of less than 0.05 mm, allowing for flawless circular cuts down to 1 mm in diameter.
Intelligent CCD Camera & QR-Code Workflow: Perfect for printed packaging. The integrated high-resolution camera positioning system automatically aligns cutting paths with print registration marks. Paired with a QR-code job classification module, the machine automatically retrieves and processes different small-batch jobs seamlessly.
Heavy-Duty Aerospace Construction: The tabletop is crafted from premium aerospace-grade aluminum honeycomb panels, paired with a robust felt surface. It offers extreme flatness, resistance to deformation under heavy loads, and an advanced 6-zone independent vacuum matrix that enhances suction power by more than three times.
