LST03II-0912-RM
fully automatic feeding,cutting and collecting die-free solution,flatbed cutting plotte
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions

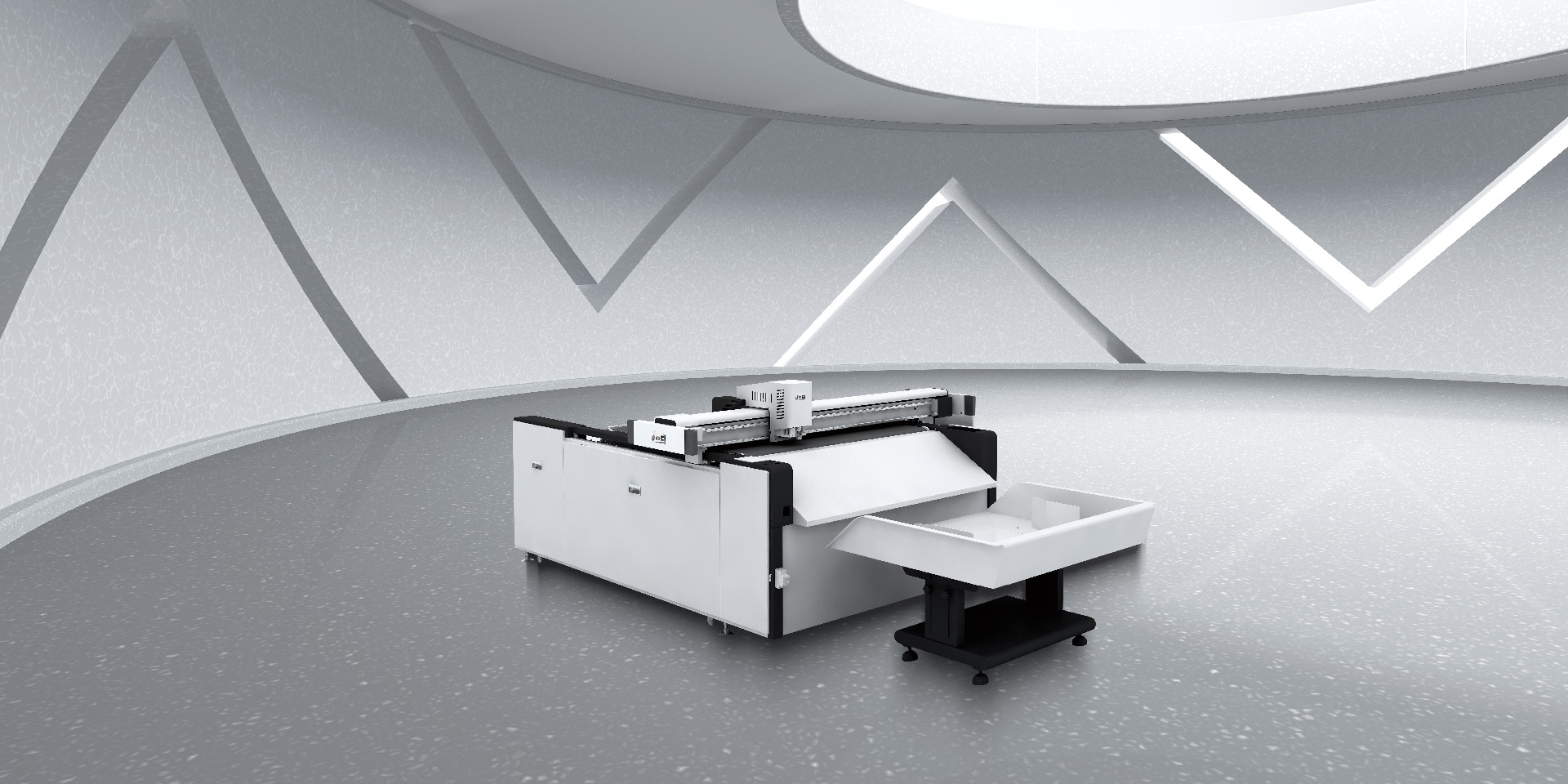

Based on the customer needs in the market, JWEI R&D team has released creatively a larger equipment LST03II-0912-RM Digital Cutter of the graphic and packaging industry, which solves the industry challenges in the short-run digital die-free market.A fully automated cardboard box cutting machine,With a larger format of 900x1200mm,LST03II-0912-RM Digital Cutter upgrades its stack height to 180MM at the same time,and its cutting efficiency reaches 70 seconds/A3, 90 seconds/B2.
Upgrading performance
through upgrading size and tool,LST03II-0912-RM Digital Cutter can handle the wider size of materials(offering 900x1200mm format),improve efficiency by 30~300% via the fly cut tool ,and get better finished effect in terms of material edge.
Intelligent machine head module
the multi-functional machine head integrates the system of CCD camera, active knife assembly, half knife assembly, indentation assembly, cursor positioning etc.
Automatic and unattended
LST03II-0912-RM Digital Cutter provides fully automatic feeding,cutting and collecting die-free solution without manual interference, which greatly reduces labor costs and improves production efficiency.
Preferred solution for short-run personalized orders
it is quick and flexible for doing short-run personalized orders in the graphic and packaging industry,for example,when your customer has a creative idea,LST03II-0912-RM Digital Cutter helps him to complete the production soon.
JWPS & QR positioning system
there are 1000+ box types in the JWPS that offers size modification,proofreading,3D preview,and the QR system realizes automatic retrieving cutting files quickly, automatic positioning and cutting, takes steps toward reducing manual dependence.
Multiple safety protection
the machine would immediately stop running to ensure personal safety when the system detects that the operator is close to the work area.
Application Scenarios
Equipped with efficient cutting tools from JWEI rich tool library,LST03II-0912-RM Digital Cutter provides fully automatic intelligent solution for cutting cardboard, self-adhesive, PVC, PP plate sheet, gray board, E/F-flute,corrugated board, KT board etc. Multiple working mode for B3, B2+ and B1+, an ideal finishing solution for jobs after printing.

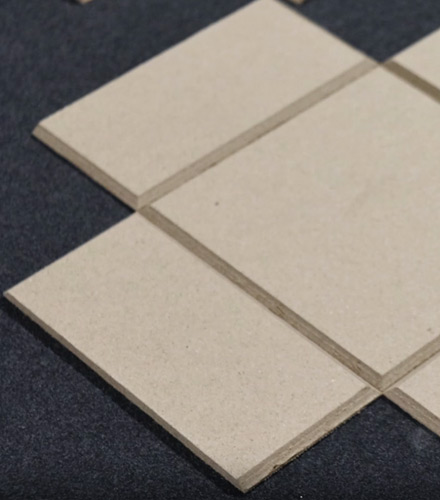

45° slotting of the gray board

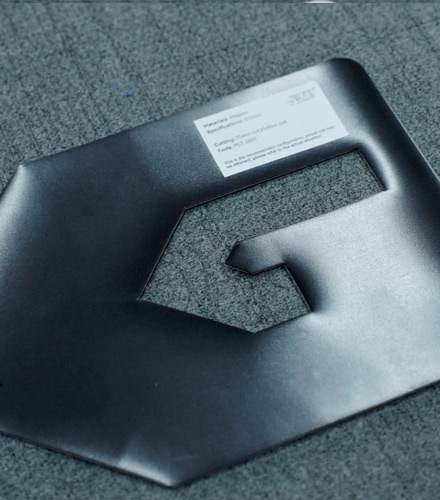

Magnetic

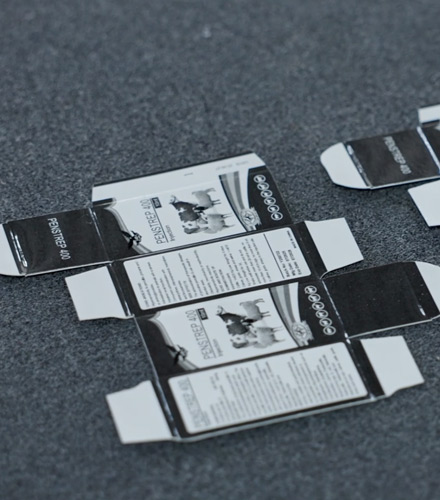

The box made of cardboard

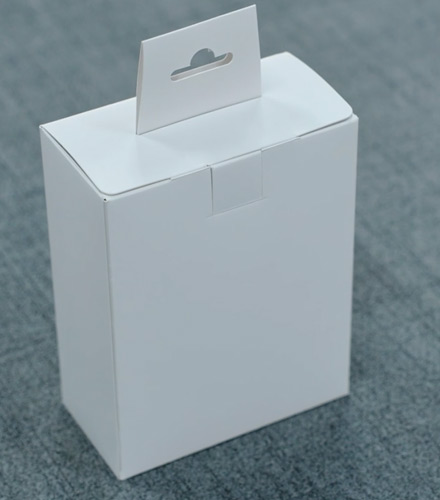

The box made of white cardboard
Recommended Configuration
Active cutting tool
Cutting thickness 0.1~0.8mm; Cut all conventional materials within 0.8mm. Tool characteristics: active rotary cutting, for materials thickness within 0.8MM, profiled cutting has higher reduction, better effect and higher efficiency.
Press cutting tool
Cutting thickness 0.1~3mm; Suitable for full cut and half cut of all kinds of materials within 3mm. Tool characteristics: active rotary cutting, wider applicability, half cut, full cut and other elastic devices can achieve better results.
Passive cutting tool
Cutting thickness 0.1~0.3mm; Universal tool, suitable for conventional materials full cut, half cut. Tool features: Passive rotary cutting, can be full cut, half cut, faster speed and cutting job more efficiency.
Mini EOT
Cutting thickness 0.1~6mm; Full cut, partial thickness above 1mm half cut. Tool characteristics: 1.3W oscillating frequency, through the high frequency of eccentric , to achieve more efficient cutting.
Creasing Wheel Tool
JWEI Digital Cutter offer a variety of creasing tools, suitable for creasing materials such as PVC, PET, cardboard, and corrugated paper.
Active kiss-cut tool
Cutting thickness 0.1~0.2mm; Half cut, better blade durability, half cut thickness is low, suitable for 0.2mm and less half cut. Tool characteristics: active rotary cutting, better landing interface effect.
Dual V-cut tool
Cutting thickness 3mm; Realize grooving of cardboard and gray plate materials. Tool characteristics: dual V-CUT, can realize the grooving function of cardboard, gray plate materials; Single knife grooving, dual V-CUT disabler, optional single knife, to achieve the grooving function; It is required to drop and lift the knife from the outside of the material, and do not lift the knife from the inside of the material.
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | LST03 Ⅱ -0912-RM |
| Automatic feeding capability | ≤ 180mm |
| Maximum cutting speed | 1500mm/s (Depends on different kinds of materials) |
| Maximum cutting thickness | 10mm(Depends on different kinds of materials) |
| Repeat precision | ±0.1mm |
| Cutting capacity | 15s-45s per SRA 3 paper , 70sper B2 paper (depends on complexity) |
| Tools | CCD camera, Mini Electric Oscillating Tool, Active Cutting Tool, Kiss-cut Tool, Creasing Wheel Tool,Passive Cutting Tool,V-cut Tool,Creasing Wheel Tool for Corrugated Paper |
| Material feeding system | Vacuum absorption to feed material |
| Transmission port | Ethernet port |
| File format | PLT、DXF、XML、CF2 |
| Voltage | 220V±10%/50Hz |
| Rated power | 5.5kW |
| Effective Cutting Size | 900mm×1200mm |
| Machine size | 2598mm×1970mm×1148mm |
Note: * will be determined based on the specific materials in the actual application scenario.

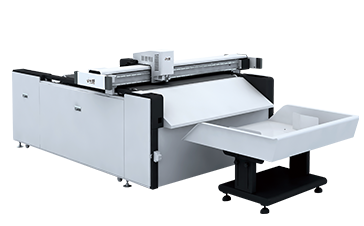

JWEI LST03II-0912-RM Automatic Flatbed Cutting Plotter for Labels & Packaging
JWEI LST03II-0912-RM, a high-efficiency automatic flatbed cutting plotter designed for the modern print-and-cut industry. Eliminating the constraints of physical dies and manual material loading, this versatile platform automates the entire feeding, cutting, and stacking workflow. The LST03II-0912-RM automatic flatbed cutting plotter integrates an advanced roll-and-sheet feeding system with JWEI’s ultra-precise CCD registration camera, enabling commercial printers to process folding cartons, kiss-cut labels, and rigid graphic cards completely unattended. It bridges the gap between digital presses and final delivery, turning complex finishing jobs into a seamless, high-speed automated operation.
Frequently Asked Questions (FAQ)
Q: How does the automatic feeding mechanism on the LST03II-0912-RM complement its performance as a flatbed cutting plotter?
A: Standard flatbed plotters require manual sheet loading, which creates major operational bottlenecks. This specialized automatic flatbed cutting plotter solves that by introducing an industrial-grade vacuum suction feeding arm and an air-separating blower. The system automatically lifts a single sheet from the loading tray, perfectly aligns it on the conveyor matrix bed, and executes the cuts completely unattended. This allows print shops to run continuous digital die-cutting batches without tying up an operator's valuable time.
Q: Can this automatic flatbed cutting plotter handle both full-through contour cutting and precise kiss-cutting for vinyl stickers?
A: Absolutely. The tool head configuration on this automatic flatbed cutting plotter features software-controlled, dynamic tool pressure. You can easily program the machine to perform a clean through-cut (die-cut) on the outer layout of heavy cardstocks, and immediately switch to a micro-calibrated kiss-cut on the same sheet for self-adhesive vinyl labels—all without piercing the protective backing paper. It gives you the ultimate versatility for processing stickers, hangtags, and retail packaging on one compact footprint.
Q: What file formats are compatible with the JWEI LST03II-0912-RM automatic flatbed cutting plotter?
A: To ensure seamless integration with standard pre-press software like Adobe Illustrator or CorelDRAW, our automatic flatbed cutting plotter supports universally accepted vector formats, including PDF, DXF, and PLT. The machine's onboard software automatically reads the printed registration marks via the built-in CCD camera, matches the digital cut file to the actual sheet orientation, and automatically compensates for any print distortion to ensure flawless, edge-to-edge cutting accuracy.
