LST03II-0806-RM
No die, Personalized, Small Batch, Unattended

Watch Video

No die, Personalized,
Small Batch, Unattended

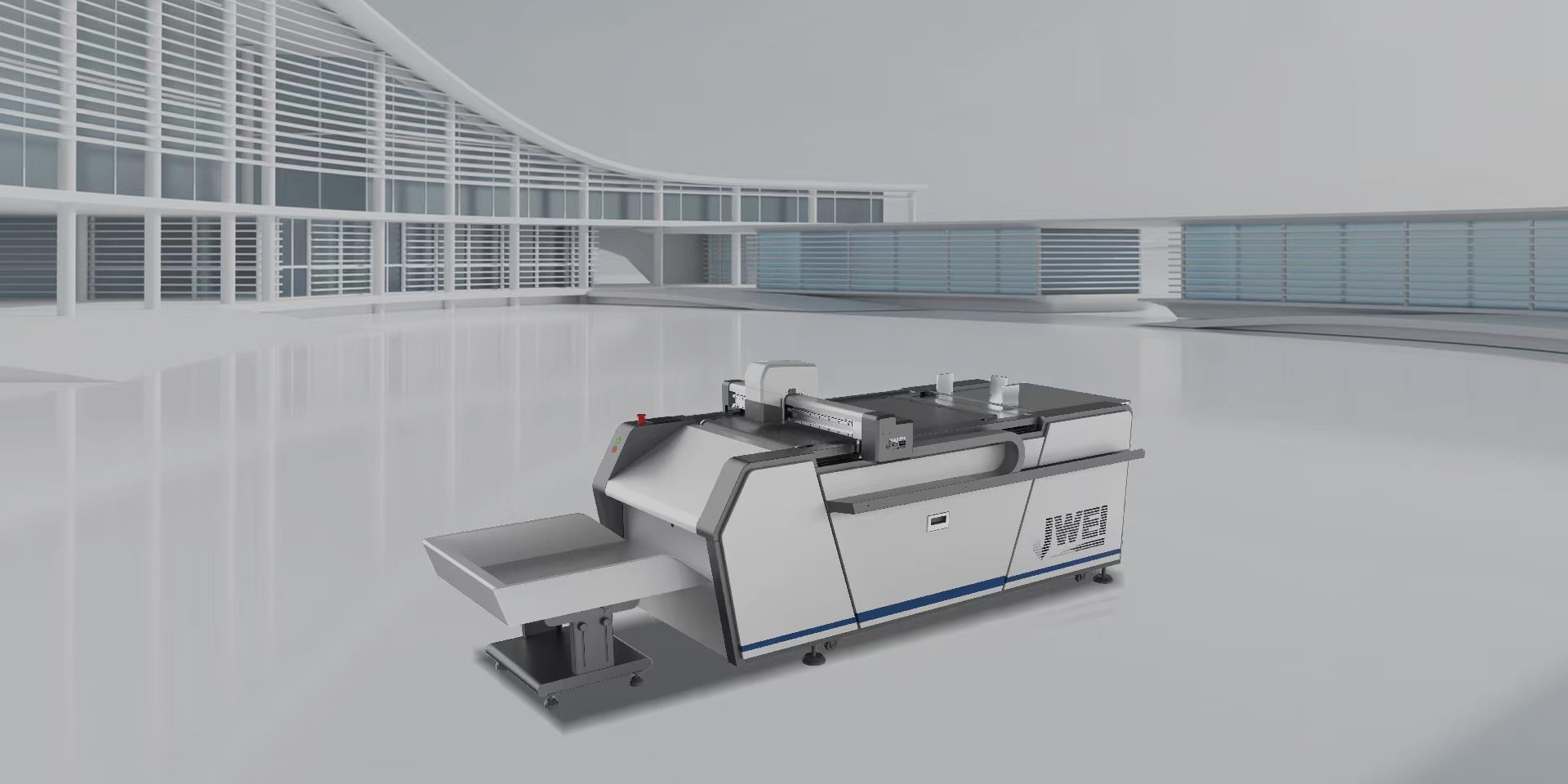

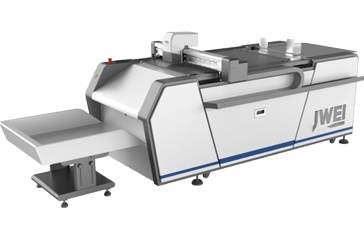

JWEI original design of the world's first graphic and packaging LST03II-0806-RM Box Cutting and Creasing Plotter has brought great changes to the short-run digital cutting application market,helps a large number of enterprises to achieve automated production, save costs.LST03II-0806-RM Box Cutting and Creasing Plotter covers B2 size fully(800mm x 600mm) ,the success rate of automatic feeding is up to 95% after optimizing the feeding system,and the cutting efficiency reaches 70s/sheet,roll sheet cutting is also available.LST03II-0806-RM cuts material includes label,cardboard,PVC,self-adhesive,foam board,magnetic sticker,box,plastic film , etc.
The world's first graphic and packaging model designed by JWEl
JWEI RGD team independently designed original machine LST0311-0806-RM Box Cutting and Creasing Plotter to fill the gap in the short-run digital cutting application market. It realizes automatic feeding.cutting.collecting.unattended.
Provide a whole-process solution
The JWEI JWPS software and the JWEI LST short-run digital cutting system are well integrated into the design.print and the cutting process.
Accurate feeding,makes the assembly line orderly
Success rate of feeding is almost 100%with the optimized jet system.vacuum air suction system feeding table .specific action control......
QR visual positioning system
Via the JWCS software and industrial camera system.it is faster and more reliable of reading positioning.
Multiple cutting tools to meet multiple needs
There are two indentation wheels and one indentation pen op- tional to meet different indentation requirements .be- sides.one indentation wheel of dotted line is optional too.It ensures the function of precise positioning.full cutting.half cutting.slotting and so on.
Application Scenarios

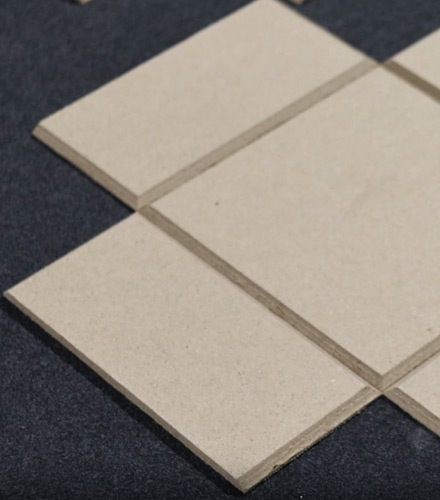

45° slotting of the gray board

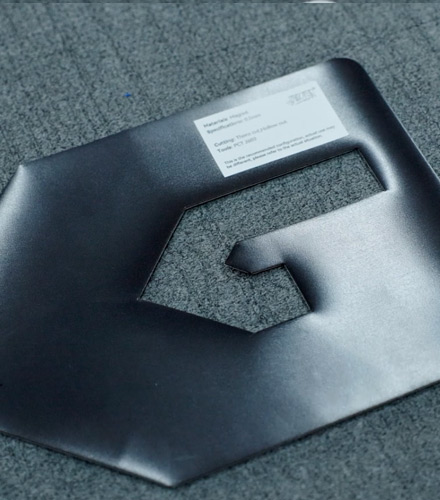

Magnetic

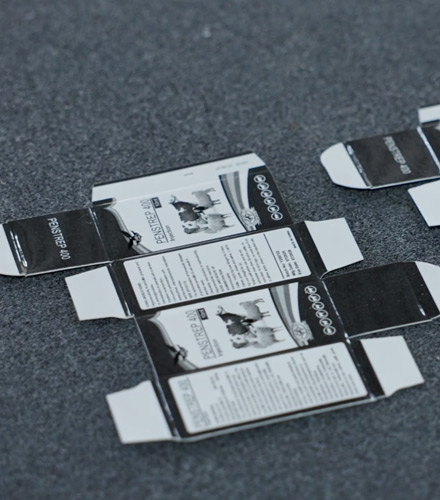

The box made of cardboard

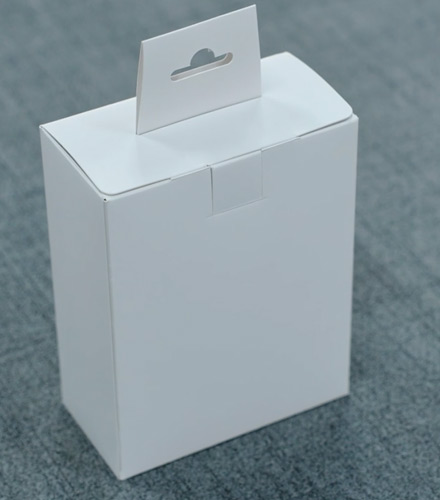

The box made of white cardboard

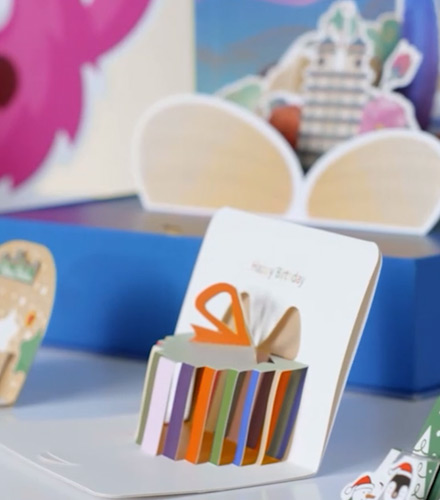

Sample display
Recommended Configuration
Active cutting tool

Cutting thickness 0.1~0.8mm; Cut all conventional materials within 0.8mm. Tool characteristics: active rotary cutting, for materials thickness within 0.8MM, profiled cutting has higher reduction, better effect and higher efficiency.

Press cutting tool

Cutting thickness 0.1~3mm; Suitable for full cut and half cut of all kinds of materials within 3mm. Tool characteristics: active rotary cutting, wider applicability, half cut, full cut and other elastic devices can achieve better results.

Passive cutting tool

Cutting thickness 0.1~0.3mm; Universal tool, suitable for conventional materials full cut, half cut. Tool features: Passive rotary cutting, can be full cut, half cut, faster speed and cutting job more efficiency.

Mini EOT

Cutting thickness 0.1~6mm; Full cut, partial thickness above 1mm half cut. Tool characteristics: 1.3W oscillating frequency, through the high frequency of eccentric , to achieve more efficient cutting.

Creasing Wheel Tool

JWEI Digital Cutter offer a variety of creasing tools, suitable for creasing materials such as PVC, PET, cardboard, and corrugated paper.

Active kiss-cut tool

Cutting thickness 0.1~0.2mm; Half cut, better blade durability, half cut thickness is low, suitable for 0.2mm and less half cut. Tool characteristics: active rotary cutting, better landing interface effect.

Dual V-cut tool

Cutting thickness 3mm; Realize grooving of cardboard and gray plate materials. Tool characteristics: dual V-CUT, can realize the grooving function of cardboard, gray plate materials; Single knife grooving, dual V-CUT disabler, optional single knife, to achieve the grooving function; It is required to drop and lift the knife from the outside of the material, and do not lift the knife from the inside of the material.

More Features

Technical Parameters

JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.



Model LST03 Ⅱ -0912-RM LST03 Ⅱ -0806-RM
Automatic feeding capability ≤ 180mm ≤ 100mm
Maximum cutting speed 1500mm/s (Depends on different kinds of materials)
Maximum cutting thickness 10mm(Depends on different kinds of materials)
Repeat precision ±0.1mm
Cutting capacity 15s-45s per SRA 3 paper , 70sper B2 paper (depends on complexity)
Tools CCD camera, Mini Electric Oscillating Tool, Active Cutting Tool, Kiss-cut Tool, Creasing Wheel Tool,Passive Cutting Tool,V-cut Tool,Creasing Wheel Tool for Corrugated Paper.
Material feeding system Vacuum absorption to feed material
Transmission por Ethernet por
File format PLT、DXF、XML、CF2
Voltage 220V±10%/50Hz
Rated power 5.5kW 4kW
Effective Cutting Size 900mm×1200mm 800mm×600mm
Machine size 2598mm×1970mm×1148mm 3200mm×1100mm×1100mm

Note: * will be determined based on the specific materials in the actual application scenario.
