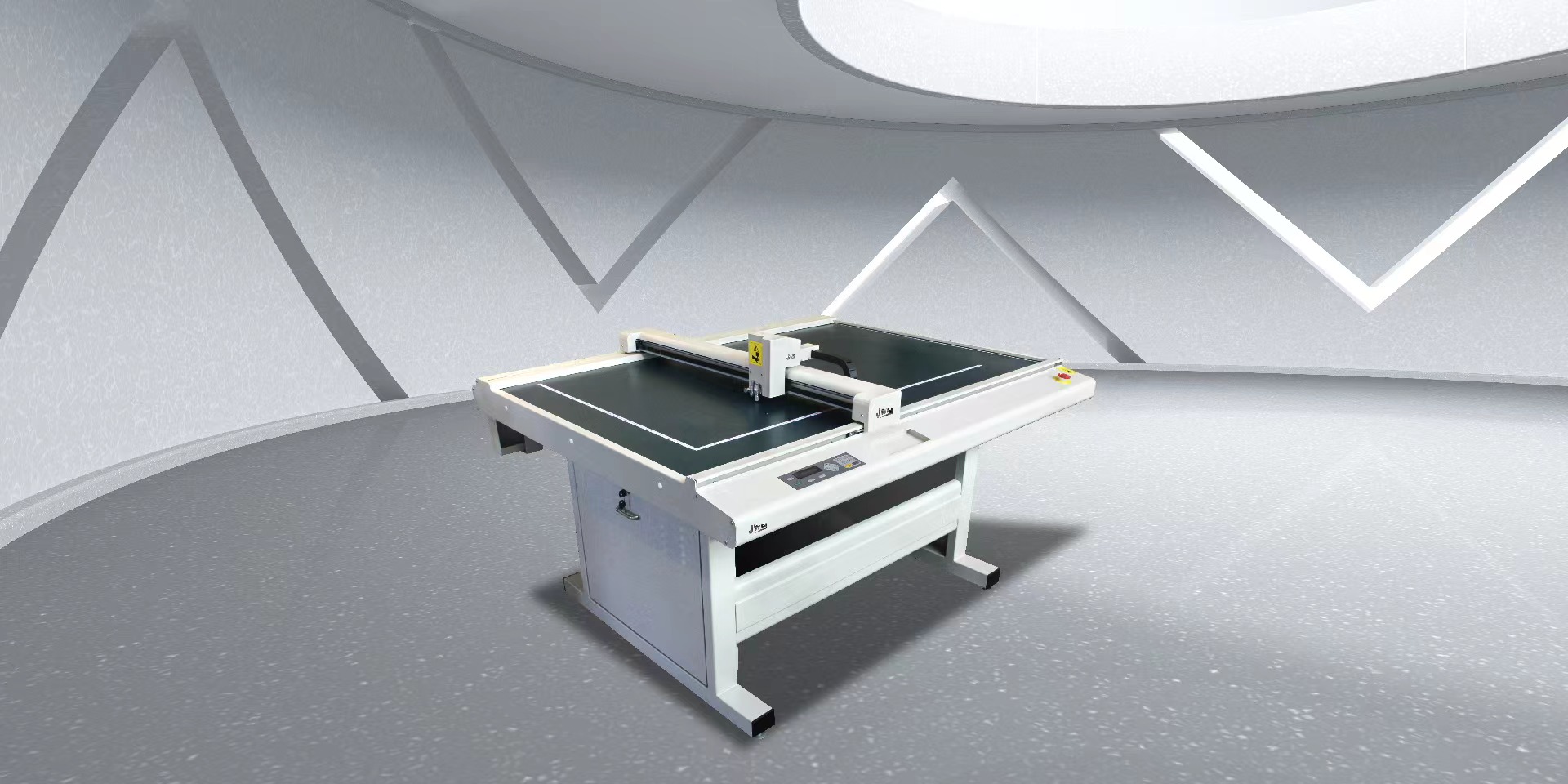

LSC-1509
Cutting And Creasing
Watch Video
Achieve any shape design
cutting and creasing
cutting and creasing
Enjoying the benefits and value delivered by JWEI LSC-1509 die-less digital cutter and creasing table, stakeholders in small-run color boxes, cardboard box, adhesive industry capture the opportunity to facilitate the digital transformation and open up a new market that didn’t exist before. LSC-1509 die-less digital cutter matches small-run, high-quality, quick-turnaround flexible materials market such as making efficiently boxes, cardboard, sticker, PVC board etc.
Camera positioning upgraded
New generation of die-less digital cutter produced by JWEI technology tapped into camera auto positioning function to assuring the higher accuracy and efficiency.
Bespoke solution
Providing the customized size based on business system as necessary.
Mass storage
A data storage with 1G configuration, to enable a fast, accurate and high-quality solution for data transmission.
Enhanced processing efficiency
LSC-1509’s top cutting speed of over 1500mm per second offers an efficient business model and its maximum cutting depth is 1.5 mm depending on materials complexity.
Advanced tools
The tool head can hold two tools such as a combination of drag knife, creasing pen or other knife blades to assure full-cut, half-cut, creasing for digitally finishing applications of boxes, cardboard, PVC board and so on.
Updating controller
An integrated circuit controller which eliminates errors dramatically is used to increase machine reliability when device can be connected with any computer in the LAN.
Application Scenarios
White cardboard
Coated paper
Brown paper
Sulphite paper
Sticker
PVC board
Recommended Configuration
Passive cutting tool
Cutting thickness 0.1~0.3mm; Universal tool, suitable for conventional materials full cut, half cut. Tool features: Passive rotary cutting, can be full cut, half cut, faster speed and cutting job more efficiency.
Active kiss-cut tool
Cutting thickness 0.1~0.2mm; Half cut, better blade durability, half cut thickness is low, suitable for 0.2mm and less half cut. Tool characteristics: active rotary cutting, better landing interface effect.
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | LSC-1509 |
| Multifunctional cutting | Full cutting, half cutting, creasing and plotting etc. |
| Maximum cutting speed | 1500mm/s (Depends on different kinds of materials) |
| Maximum cutting thickness | 1.5mm (Depends on different kinds of materials) |
| Repeat precision | ±0.1mm |
| Materials | White cardboard, coated paper, self-adhesive, PVC board, PP board, sulphite paper, brown paper, fiber bottom plate, etc. |
| Cutting method | Multi-functional tool holder, 8 different plotting pen, creasing wheel, half-cut, full cutting Settings |
| Tools | Various kinds of cutting blades, creasing wheels and plotting pen etc. |
| Material Fixation Mode | Vacuum suction |
| Transmission port | Ethernet port |
| Drive System | Imported digital servomotor |
| Rated power | 2kW |
| Voltage | 220V±10% |
| Effective Cutting Size | 1380mmx800mm |
| Machine size | 1850mmx1330mmx1000mm |
Note: * will be determined based on the specific materials in the actual application scenario.
