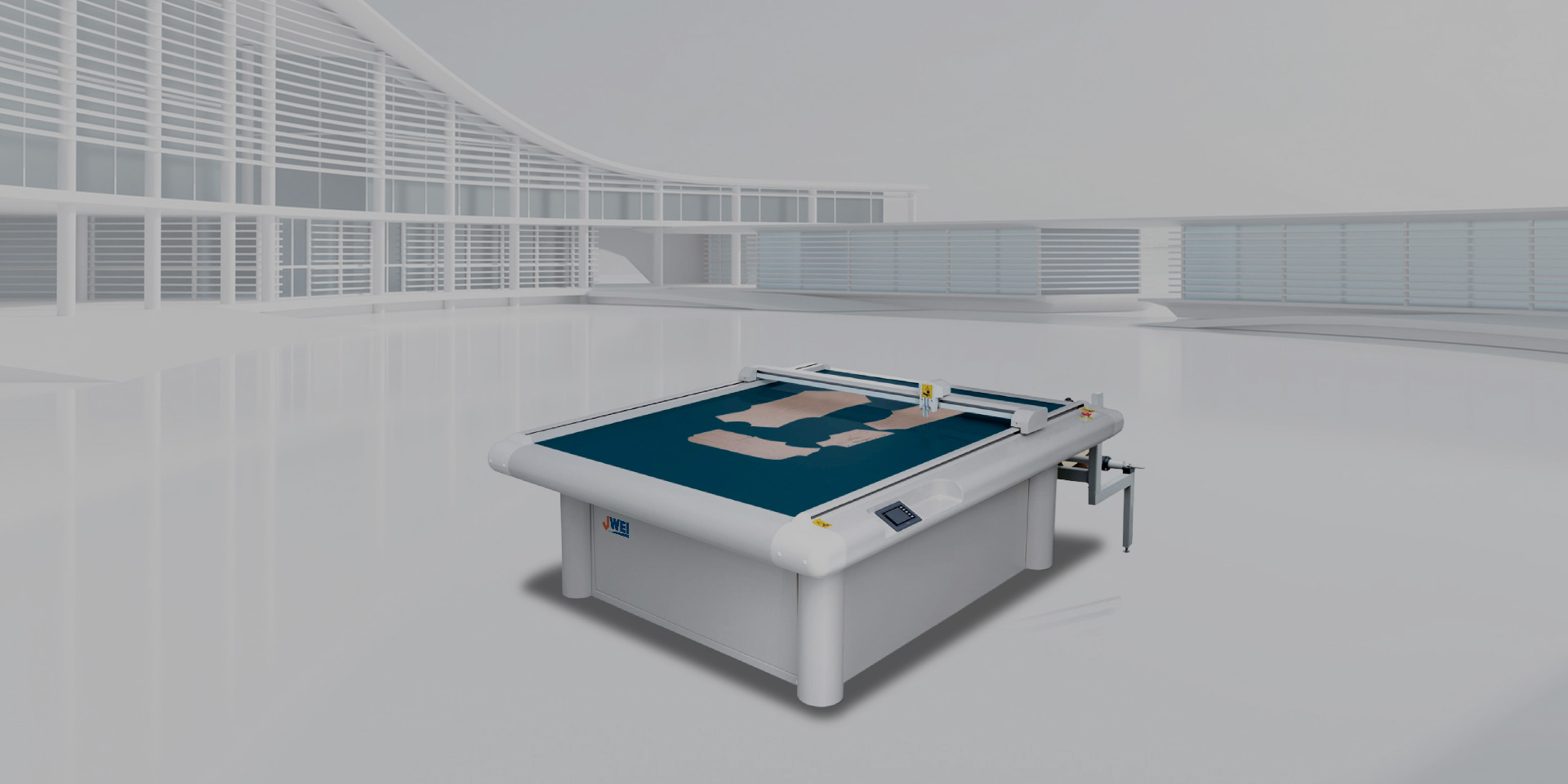

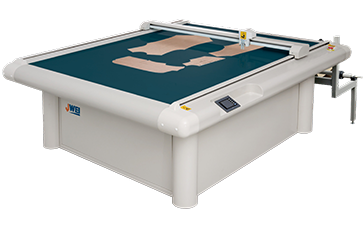

EDO-1862-A
99% customer praise rate
Watch Video
Pattern making in apparel factories,
footwear factories, and luggage factories
footwear factories, and luggage factories
As a classic series within the JWEI brand, the EDO pattern cutting machines are specifically designed for pattern making in the apparel, footwear, and luggage manufacturing industries. These machines precisely cut a wide range of materials, including kraft paper, white cardboard, gossamer paper, yellow chipboard, red rigid cardboard, PVC sheets, fiber mid-soles, and rubber sheets. Equipped with newly upgraded servo motor drives, a redesigned airflow system, and a high-power vacuum pump, the EDO series ensures fast cutting speeds and strong material hold-down. The oil-based pen provides clear and accurate line marking, while the drag knife and pen tool offer versatility in handling various materials—all while maintaining low consumable costs.
Trusted across the industry, the EDO Series stands out for its quality, efficiency, and cost-effectiveness, making it an essential production tool in professional pattern-making workflows.

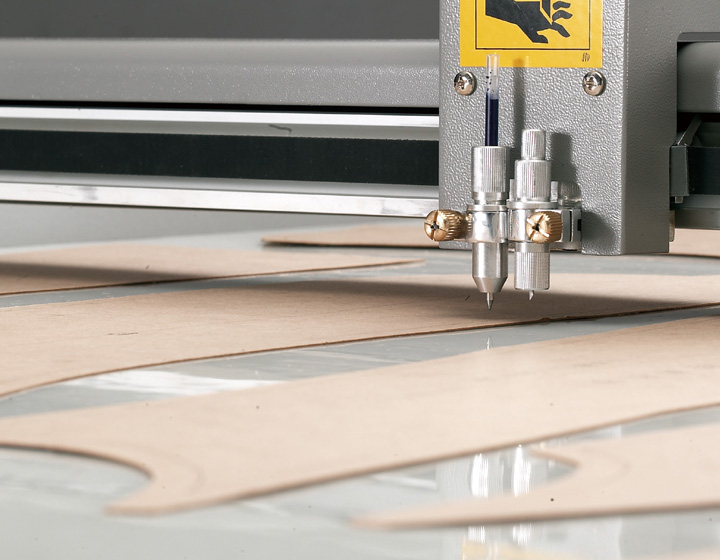

Clear Oil-Based Marking Lines
Delivers sharp and precise markings; stable operation with low consumable cost.
Upgraded Servo Motor Drive
Newly upgraded servo motor enables faster cutting speeds for improved productivity.
Redesigned Airflow System
Innovative air duct paired with a high-power vacuum pump ensures stronger material hold.
Proven JWEI Classic Model
Trusted by users for its reliable quality and consistent performance.
Application Scenarios
The EDO series represents JWEI's classic model line, primarily used for pattern making in apparel factories, footwear factories, and luggage factories. It handles materials including kraft paper, white cardboard, gossamer paper, yellow chipboard, red rigid cardboard, PVC sheets, fiber mid-soles, and rubber sheets.
Kraft paper
Ivory board
Sulphite paper
Yellow cardboard
Red cardboard
Fiber plate
Optional Tools
Drag Knife Tool
Part description
Pen Tool
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | EDO-1873-R | EDO-1862-A | EDO-1653 |
| Working mode | Computer operation and cutting at the same time, fast data transmission, continuous use | ||
| Max. Cutting Speed | 1000mm/s | ||
| Max. Cutting Thickness | 2mm | ||
| Cut material | Kraft paper, Ivory board, sulphite paper, yellow cardboard, red cardboard, PVC board, fiber plate and rubber board etc. | ||
| Cutting mode | Multi-function knife holder,8 different settings with plotting, kiss-cut and thorough cutting. | ||
| Plotter pen/blade type | Ordinary signature pen, oil pen, ballpoint pen/special tungsten steel knife | ||
| Material fixation mode | Vacuum suction | ||
| Repeat precision | ±0.1mm | ||
| Network transmission distance | Ethernet port | ||
| Data transmission mode | HP-GL compatible mode | ||
| Interface | LCD screen with EN&CN languages | ||
| Rated voltage | 220V±10% 50Hz | ||
| Rated capacity | 1.76kVA | 2.64kVA | 1.76kVA |
| Fuse specific | 6A、30A | ||
| Feeding device | Standard Configuration | / | / |
| Machine Weight | 330kG | 220kG | 107kG |
| Effective cutting area | 1500mm×1200mm | 1500mm×900mm | 900mm×600mm |
| Machine size | 1850mm×1600mm×1000mm | 1850mm×1330mm×1000mm | 1270mm×1040mm×1000mm |
Note: * will be determined based on the specific materials in the actual application scenario
JWEI EDO-1862-A Precision Pattern Cutting Machine for Apparel, Footwear & Luggage
As a classic series within the JWEI brand, the EDO-1862-A pattern cutting machine is specifically designed for high-precision pattern making in the apparel, footwear, and luggage manufacturing industries. Engineered to streamline professional pattern-making workflows, this advanced digital cutting system processes a wide range of materials directly from CAD vectors. Equipped with newly upgraded servo motor drives, a redesigned airflow system, and a high-power vacuum pump, the EDO-1862-A ensures fast cutting speeds and strong material hold-down. It precisely handles various mediums including kraft paper, white cardboard, gossamer paper, yellow chipboard, red rigid cardboard, PVC sheets, fiber mid-soles, and rubber sheets, making it an essential, cost-effective production tool that delivers trusted quality and efficiency.
Frequently Asked Questions (FAQ)
Q: What materials can the EDO-1862-A pattern cutting machine process for industrial pattern making? A: The EDO-1862-A is highly versatile, built to cut both flexible and rigid pattern materials precisely. It smoothly processes standard pattern-making mediums like kraft paper, white cardboard, gossamer paper, yellow chipboard, and red rigid cardboard. Furthermore, its robust design handles heavy-duty components such as PVC sheets, fiber mid-soles, and rubber sheets, allowing manufacturers in the apparel, footwear, and luggage sectors to handle multiple sample-making requirements on a single system.
Q: How does the EDO-1862-A ensure versatility and accuracy during the pattern-making process? A: The system achieves dual functionality by combining a precision drag knife and an oil-based pen tool. While the drag knife cuts cleanly through tough materials like PVC and thick cardboard, the oil-based pen provides clear and accurate line marking for notches, drill holes, and alignment guides. This multi-tool capability allows you to transition seamlessly from drawing to cutting without tool-changing bottlenecks, maintaining ultimate accuracy across complex garment or footwear CAD designs.
Q: What makes the EDO-1862-A a more cost-effective choice compared to other cutting methods? A: The primary operational advantage of the EDO-1862-A is its exceptionally low consumable costs combined with high efficiency. Driven by newly upgraded servo motors and supported by a high-power vacuum pump, it maximizes throughput while keeping power and replacement part costs minimal. Unlike alternative cutting methods that require expensive specialized parts or frequent tool replacements, the EDO series stands out for its long-term cost-effectiveness, turning pattern production into a high-margin, reliable workflow for manufacturers.

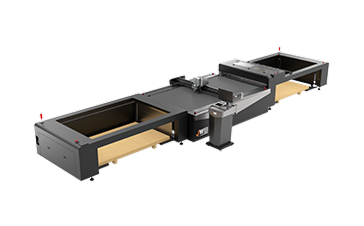

JWEI SG1625 High-Precision Flatbed Digital Cutting System for Sign & Graphics
Revolutionize your short-run packaging production and sample-making workflow with the JWEI SG1625 Flatbed Digital Cutting System. Engineered specifically for the fast-paced packaging, printing, and custom box manufacturing industries, the SG1625 eliminates the need for expensive traditional cutting dies. Powered by a high-speed EtherCAT motion control system and an intelligent multi-tool configuration, it delivers unmatched precision, flexibility, and 24/7 industrial-grade reliability.
Frequently Asked Questions (FAQ)
Q: What makes the JWEI SG1625 a preferred flatbed digital cutting system for print shops?
A: The JWEI SG1625flatbed digital cutting system provides an ideal 1600mm*2500mm working area, perfectly matching standard industrial material sheet sizes. By utilizing precision multi-tool CNC heads instead of expensive physical dies, it allows print shops and custom packaging manufacturers to switch between diverse short-run jobs instantly with zero setup delays.
Q: What tooling options and materials are compatible with the SG1625 flatbed digital cutting system?
A: The JWEI SG1625flatbed digital cutting system provides an ideal 1600mm*2500mm working area, perfectly matching standard industrial material sheet sizes. By utilizing precision multi-tool CNC heads instead of expensive physical dies, it allows print shops and custom packaging manufacturers to switch between diverse short-run jobs instantly with zero setup delays.
Q: How does the SG1625 ensure precise registration for printed graphics?
A: The JWEI SG1625flatbed digital cutting system provides an ideal 1600mm*2500mm working area, perfectly matching standard industrial material sheet sizes. By utilizing precision multi-tool CNC heads instead of expensive physical dies, it allows print shops and custom packaging manufacturers to switch between diverse short-run jobs instantly with zero setup delays.
Why International Distributors & Box Plants Choose the JWEI SG1625:
Triple-Head System & One-Pass Forming: Equipped with a smart plug-in, triple-head architecture that allows simultaneous mounting of oscillating knives, creasing wheels, and multi-angle V-cut tools. Achieve high-precision cutting, creasing, and grooving in a single automated process—perfect for complex rigid boxes and corrugated cartons.
Next-Gen ATC (Automatic Tool Changer): Streamline operations with a fully automated tool-changing module. The machine effortlessly switches between different blades and tools based on digital files, maximizing uptime, eliminating operator errors, and bypassing manual depth adjustments.
Ultra-Fast EtherCAT Motion Control: Driven by JWEI’s self-developed embedded M7 EtherCAT bus controller, the system boasts a blazing-fast motion cycle of just 0.0001 seconds. Reach cutting speeds of up to 2,000 mm/s with a repeat precision of less than 0.05 mm, allowing for flawless circular cuts down to 1 mm in diameter.
Intelligent CCD Camera & QR-Code Workflow: Perfect for printed packaging. The integrated high-resolution camera positioning system automatically aligns cutting paths with print registration marks. Paired with a QR-code job classification module, the machine automatically retrieves and processes different small-batch jobs seamlessly.
Heavy-Duty Aerospace Construction: The tabletop is crafted from premium aerospace-grade aluminum honeycomb panels, paired with a robust felt surface. It offers extreme flatness, resistance to deformation under heavy loads, and an advanced 6-zone independent vacuum matrix that enhances suction power by more than three times.
