SL1632 | Auto-Workflow
Automated sheet Feeding-Cutting-Collection System
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions
The JWEI SL1632 digital cutter is a flagship model designed for automated inline cutting of large-format sheet materials. Tailored for high-throughput production environments, it excels in automated workflows involving oversized boards. Inheriting the SL Series’ hallmark strengths of high speed and high precision, the SL1632 also offers exceptional integration flexibility. It enables seamless connection with upstream printing systems, allowing customers to build a fully automated "print-to-cut" production line—delivering unmanned operation from start to finish.
APC Automated Inline Integration
Compatible with a wide range of printing equipment for seamless integration, enabling fully unmanned print-to-cut operation from start to finish. This reduces labor costs and accelerates production efficiency.
Powerful Vacuum with Noise Reduction Technology
A newly optimized airflow system delivers exceptionally strong suction, ensuring more stable material fixation during cutting. Meanwhile, the machine operates at just 64dB, comparable to standard household appliances—providing a quiet and comfortable working environment.
Maglev + Linear Motor Drive
Even with its ultra-large cutting format, the SL3232 achieves an impressive running speed of 3 m/s, thanks to its magnetic levitation and linear motor drive system—ensuring optimal cutting speed without compromising precision.
Advanced motion control algorithms
Powered by the cutting-edge M7 control board, the SL3232 utilizes an industry-leading motion control algorithm that enables flawless cutting of 1mm micro-circles—delivering unmatched precision for the most demanding applications.
Four Layers of Safety Protection
The SL3232 is equipped with four layers of safety mechanisms to ensure comprehensive operator protection:
- Proximity slow-down protection
- Lift-type safety guard
- Infrared anti-collision sensors
- Emergency stop system
These features work together to deliver a safe and secure cutting environment under all operating conditions.
Application Scenarios
Designed for high-speed cutting of sheet materials such as KT board and PVC foam board (Sintra board), the SL1632 is especially suitable for building fully automated production lines, thanks to its APC integration solution. At the same time, it can also be operated as a standalone cutting system, offering flexibility for a variety of production environments.
Corrugated board
KT board
MDF foam
PVC foam board
Recommended Configuration
Rotary knife cutting tool
Multiple blades options available, suitable for cutting single-layer and limited multi-layer fabrics, including various woven and knitted textiles,as well as dry carbon fiber fabrics. In the advertising industry, it enables precise cutting of materials such as flag fabric, art canvas, and warp-knitted fabrics.
Electric oscillating Tool
Equipped with a built-in high-frequency Maxon motor reaching speeds of up to 18,000 RPM and specially designed tungsten steel hardened blades, it effortlessly handles cutting of tougher and thicker materials—such as corrugated board, honeycomb board, KT board, and PVC foam board—with high speed and clean, smooth edges.
Quadruple Safety Protection
Proximity Slow-Down + Lift-Type Guard + Infrared Collision Prevention + Emergency Stop. These four responsive safety mechanisms work together to ensure both operator safety and machine reliability. With rapid response times and intelligent protection, the SL3232 provides full-coverage safety to safeguard personnel and maintain stable operation.
Aerospace Honeycomb Aluminum Plate + Felt Tabletop
Made with aerospace-grade aluminum honeycomb panels: strong, weather-resistant, highly flat, and resistant to deformation even under heavy loads. The internal honeycomb structure allows smooth airflow. Optional zoned vacuum suction provides powerful airflow and strong suction force.
Independent Control Platform (Excluding Computer)
This platform integrates an emergency stop button with a touch screen human-machine interface, which is user-friendly and easy to operate, facilitating the quick setup of various cutting parameters. It also provides space for PC installation.
Camera Positioning System
For printed materials, the camera positioning system enables fast and accurate cutting alignment. With the integrated QR code-based job classification module, it supports automated image adjustment and production of different batches in small quantities.
Optional Tools
Automatic Tool Changer
Part description
V-CUT Tool For Grey Board
Part description
V-CUT Tool For Photo Frame
Part description
V-CUT Tool For Multi-angle
Part description
V-CUT Tool For Photo Frame
Part description
Electric Foam Cutting Tool
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | SL1632 |
| Multi-functional Tool Head | Multi-tool fixing holes, tool quick insert fixing, easy to replace cutting tools, plug and play, set cutting, creasing, drawing, router and other functions in one, optional ATC module. |
| Tools | Electric oscillating tool, drag knife, rotary tool, router tool module, plotting tools etc. |
| Max. Operating speed | 3000mm/s |
| Max. Cutting Thickness | 50mm * |
| Repeat Precision | <0.05mm |
| Cutting Materials | ABS board, PVC board, space board, aluminum-plastic board, lamp sheet, back glue, PVC board, KT board, acrylic, magnetic sticker, self-adhesive etc. |
| Material Fixation Mode | Vacuum absorption |
| Software resolution | 0.025、0.01、0.1 optional |
| Transmission Mode | Ethernet port |
| Drive System | Bus controller, advanced servo system, imported linear guide rail, lead screw, linear motor drive |
| Instruction system | HP-GL compatible format |
| Automatic knife setting | Non-contact tool setting mode for drag knife,rotary tool,electric oscillating tool,creasing wheel tool, v-cut tool etc. |
| Automatic tool setting accuracy | 0.05mm |
| Rated Power | 16kW |
| Rated Voltage | 380V±10% |
| Machine Weight | Machine Weight |
| Effective Cutting Size (WxL) | 1600mm×3200mm |
| Machine Size (WxLxH) | 3630mm×4200mm×1672mm(Single size) 3630mm×13165mm×1672mm(Send cut size) |
| Note: * Dependent on materials and application | |
Note: * will be determined based on the specific materials in the actual application scenario.

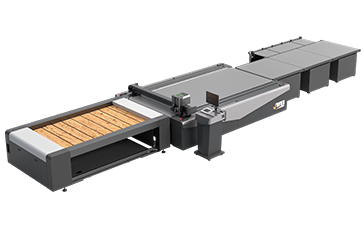

JWEI SL1632 Auto Workflow | Automated Digital Cutting System
JWEI SL1632 Auto Workflow, an advanced automated digital cutting system engineered for high-volume industrial production. By integrating a heavy-duty $1.6\text{m} \times 3.2\text{m}$ conveyor flatbed with synchronized material loading and unloading modules, this intelligent CNC solution eliminates manual intervention and production bottlenecks. Perfect for continuous 24/7 processing of rigid boards, roll textiles, and packaging substrates, the SL1632 automated digital cutting system utilizes precision blade technology and smart nesting software to drastically lower labor costs while maximizing material yield.
Frequently Asked Questions (FAQ)
Q: How does the JWEI SL1632 operate as a fully automated digital cutting system?
A: The SL1632 automated digital cutting system features an integrated conveyor bed coupled with automated feeding and collection units. Instead of requiring manual sheet placement, the system automatically loads raw materials, executes precision CNC knife cutting directly from CAD files, and advances finished pieces to the unloading zone, enabling a completely autonomous production cycle.
Q: Can this automated digital cutting system handle both rigid sheets and flexible roll materials?
A: Yes, versatility is a core strength of this automated digital cutting system. The heavy-duty conveyor mechanism works seamlessly with a synchronized roll unwinding device for flexible textiles or graphics media, and can be paired with automatic sheet loaders for rigid packaging boards, maintaining high-speed operation across different material formats.
Q: What are the primary labor and cost savings offered by the SL1632 Auto Workflow?
A: By transitioning to this automated digital cutting system, factories can significantly reduce manual labor dependencies, allowing a single operator to manage multiple production lines. Furthermore, JWEI’s proprietary digital nesting software optimizes pattern layouts in real time, minimizing material waste and eliminating the expensive tooling and storage costs associated with traditional physical dies.
